Quick Details
-
Width:
-
100-900mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
huantai
-
Product name:
-

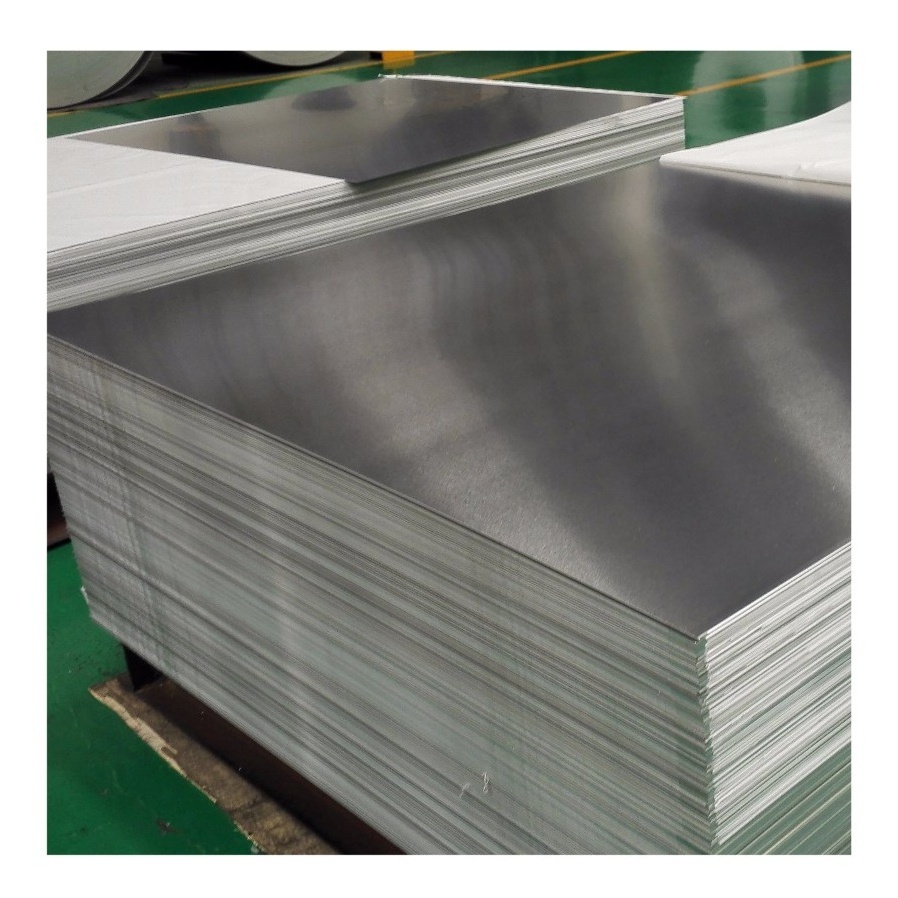

Aluminum Checkered Plate
-
Shape:
-
Square
-
Keyword:
-
Aluminim Plate
-
Material:
-
Aluminum Alloy Metal
-
Color:
-
Silver
-
Surface:
-
Brush.and Blast.checkered.embossed
-
MOQ:
-
1 Ton
-
Standard:
-
ASTM AISI JIS DIN GB
-
Alloy:
-
1-8series
-
Thickness:
-
0.2-200mm Customized
Quick Details
-
Grade:
-
1000 Series
-
Tolerance:
-
±1%
-
Application:
-
utensils
-
Width:
-
100-900mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
huantai
-
Product name:
-
Aluminum Checkered Plate
-
Shape:
-
Square
-
Keyword:
-
Aluminim Plate
-
Material:
-
Aluminum Alloy Metal
-
Color:
-
Silver
-
Surface:
-
Brush.and Blast.checkered.embossed
-
MOQ:
-
1 Ton
-
Standard:
-
ASTM AISI JIS DIN GB
-
Alloy:
-
1-8series
-
Thickness:
-
0.2-200mm Customized
Products Description
Aluminum plate refers to the aluminum material with a thickness of more than 0.2mm to less than 500mm, a width of more than 200mm and a length of less than 16m, which is called aluminum plate or aluminum sheet. Aluminum plate refers to the rectangular plate rolled from aluminum ingot, which is divided into pure aluminum plate, alloy aluminum plate, thin aluminum plate, medium thickness aluminum plate and pattern aluminum plate.Aluminum plates are generally divided into the following two types: 1. According to alloy composition: High purity aluminum plate(rolled from high purity aluminum with content above 99.9) Pure aluminum plate (the composition is basically rolled from pure aluminum) Alloy aluminum plate (composed of aluminum and auxiliary alloys, usually aluminum copper, aluminum manganese, aluminum
silicon, aluminum magnesium, etc.) Composite aluminum plate or welding plate (special purpose aluminum plate material is obtained by means of multiple material compounding) Aluminum clad aluminum plate (the outer edge of aluminum plate is coated with thinaluminum plate for special purposes) 2. Divided by thickness: (unit: mm) Sheet 0.15-2.0 Conventional board 2.0-6.0 Middle plate 6.0-25.0 Thick plate 25-200
silicon, aluminum magnesium, etc.) Composite aluminum plate or welding plate (special purpose aluminum plate material is obtained by means of multiple material compounding) Aluminum clad aluminum plate (the outer edge of aluminum plate is coated with thinaluminum plate for special purposes) 2. Divided by thickness: (unit: mm) Sheet 0.15-2.0 Conventional board 2.0-6.0 Middle plate 6.0-25.0 Thick plate 25-200
Specification
|
Alloy No.
|
Thickness (mm)
|
Width (mm)
|
Length (mm)
|
Temper
|
||||
|
A1050,A1060, A1070,A1100
|
1.0-10
|
20-2300
|
20-8000
|
H12,H22,H14,H16,H18, H24,H26,etc
|
||||
|
3A21,A3003,A3105,A3004
|
1.0-10
|
20-2300
|
20-8000
|
H14,H18,H24,etc
|
||||
|
A5052 ,A5005,A5083,A5754
|
1.0-10
|
20-2300
|
20-8000
|
H18,H24,H32,H34,H111,H112 ,etc
|
||||
|
A6061,A6082,A6063
|
1.0-10
|
20-2300
|
20-8000
|
T4,T6,,etc
|
||||
|
A8011
|
1.0-10
|
20-2300
|
20-8000
|
H12,H22,H14,H16,H18,H24,H26, etc
|
||||
|
Packing : Export wooden pallets. The bundle wegiht not exceed 2MT. Loading:by 1x20GP, 1X20GP can load about 18MT
|
|
|
|
|
||||
|
Standards:ASTM-B209. EN573-1, GB/T3880.1-2006
|
|
|
|
|
||||
|
Quality of material: totally free from defects like white rust, oil patches, roll marks, edge damage, camber, dents, holes, break
lines, scratches and free from coil set |
|
|
|
|
||||
|
Application : Mainly used insigns, billboards, building exterior decoration, bus body, high-rise buildings and factories wall
decoration, kitchen sink, lamp, fan leaves, with pieces of electronic, chemical equipment, sheet metal processing parts, deep drawing or spinning hollowware, welding parts, heat exchangers, bell surface and disk, plate, kitchenware, decorations, reflective devices, ect |
|
|
|
|
||||
|
MOQ
|
5 tons
|
|
|
|
||||
|
Payment term：
|
T/T,L/C
|
|
|
|
||||
|
Delivery Time
|
15 days after 30% T/T payment or receiving L/C copy
|
|
|
|
||||
|
Kind attention : Specifications can be customized as the customer’s requirements.
|
|
|
|
|
||||
Chemical composition of Aluminum Plate:
Production pictures
Application
|
Alloy
|
|
Application field
|
|
|
|||
|
1xxx
|
1050
|
Insulation, food industry, decoration, lamp, traffic signs etc.
|
|
|
|||
|
|
1060
|
Fan blade, Lamps and lanterns, Capacitor shell, Auto parts, Welding parts etc
|
|
|
|||
|
|
1070
|
Capacitor, Rear panel of vehicle refrigerator, charging point, heat sink etc
|
|
|
|||
|
|
1100
|
Cooker, building material, printing, heat exchanger, bottle cap etc
|
|
|
|||
|
2xxx
|
2A12
2024
|
Aircraft structures, rivets, aviation, machinery, missile components, the card wheel hub, propeller components, aerospace parts,
car parts and various other structural parts. |
|
|
|||
|
3xxx
|
3003
3004
3005 3105 |
Aluminum curtain wall panel, aluminum Ceiling, Electric cooker bottom, TV LCD backboard, storage tank, curtain wall, building
construction panel heat sink, billboard. Industrial floor, air conditioning, refrigerators radiators, Make-up board, Prefabricated house etc |
|
|
|||
|
5xxx
|
5052
|
Marine and transportation material, railway carriage's inner and outer cabinet, oil and chemical industry storage device,
equipment and medical device panel etc. |
|
|
|||
|
|
5005
|
Marine applications, bodies of boats, buses, trucks and trailer. Curtain wall panel.
|
|
|
|||
|
|
5086
|
Ship board, deck, bottom and edge panel etc.
|
|
|
|||
|
|
5083
5182
5454 |
Tanker, oil storage tank, drilling platform, ship board, deck, bottom, welded parts and edge panel, railway carriage 's board,
automotive and aircraft panel, cooling device and automotive molding etc. |
|
|
|||
|
|
5754
|
Tanker body, marine facilities, pressure container, transportation etc.
|
|
|
|||
|
6xxx
|
6061
6083
6082 |
Railway inside and outside parts, board and bed plate.
Industry molding Highly stressed applications includes Roofing construction, transportation, and marine as well as mould. |
|
|
|||
|
|
6063
|
Auto parts, architectural fabrication, window and door frames, aluminum furniture, electronic components as well as various
consumer durable products. |
|
|
|||
|
7xxx
|
7005
|
Truss, rod/bar and the container in transportation vehicles; Large-sized heat ex changers
|
|
|
|||
|
|
7050
|
Molding (bottles) mode, ultrasonic plastic welding mold, golf head, shoe mold, paper and plastic molding, foam molding, lost wax
mold, templates, fixtures, machinery and equipment |
|
|
|||
|
|
7075
|
Aerospace industry, military industry, electronic etc
|
|
|
|||
For aerospace Sign boards Welding parts
Car manufacturer
Shipbuilding
carriage manufacturing
Package & Dellivery
Company information
Shandong Huantai Aluminum Metal Products Co. Ltd
Shandong Huantai Aluminum Metal Products Co. Ltd
is a professional metal and steel supplier with ten years of industry experience, the company's products are exported to more than 80 countries and regions, and established friendly business cooperation with major steel mills such as Lai Steel, steel, baosteel and da Steel. The company adheres to the concept of honesty and win-win cooperation, and is well received by customers at home and abroad.
Production photos
Customer Feedback
If you are interested in our products, you can contact me directly for catalogue and consultation details!
