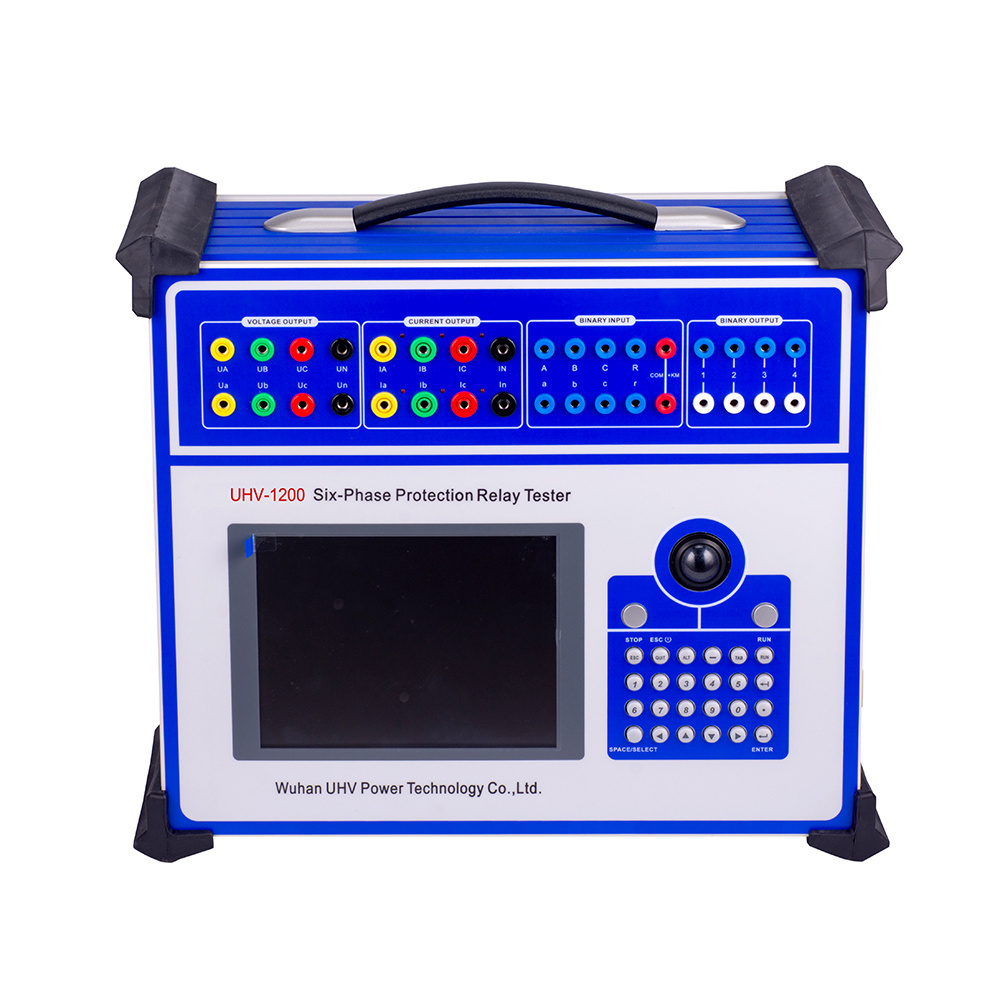

UHV-1200 Intelligent Six-Phase Microcomputer Relay Protection Tester Secondary Current injector 6 Phase Relay Tester

UHV-1200 Intelligent Six-Phase Microcomputer Relay Protection Tester Secondary Current injector 6 Phase Relay Tester

FOB Reference Price: Get Latest Price

≥1 Sets

US $5500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: UHV

Model Number:: HT-1200

Product name:: relay tester

Amplitude range:: 6*(0 ~ 30A)/ phase;Accuracy: 0.5%

Accuracy:: 0.5%

6 phase in parallel max output:: 180A

operating value of phase current:: 10A

Power factor:: 300VA/phase

Time range:: 1ms~9999s

Certification:: ISO9001, ISO14001, ISO45001

Dimension:: 49kg, 455*530*200mm3

Quick Details

Warranty:: 1 years

Power:: Electronic

Place of Origin:: Hubei, China

Brand Name:: UHV

Model Number:: HT-1200

Product name:: relay tester

Amplitude range:: 6*(0 ~ 30A)/ phase;Accuracy: 0.5%

Accuracy:: 0.5%

6 phase in parallel max output:: 180A

operating value of phase current:: 10A

Power factor:: 300VA/phase

Time range:: 1ms~9999s

Certification:: ISO9001, ISO14001, ISO45001

Dimension:: 49kg, 455*530*200mm3

Product Paramenters

Type- HT-1200 Six Phase Relay Protection Tester		HT-1200 Six Phase Relay Protection Tester
Current channel number	Standard six phase
Voltage channel number	Standard six phase
AC current output range	30A / phase or 180A (six phase parallel)
DC current output range	10A DC /phase
AC voltage output range	120V AC /phase
DC voltage output range	160V DC / phase
AC Current Output
The virtual value of each phase output when six phase current output	0～30A
Output precision	0.1grade
The virtual value of each phase output when three phase current output	0～60A
The virtual value of six phase parallel current output	0～180A
The allowed virtual value when the phase current work long time	10A
The maximum output power of phase current	450VA
The maximum output power when six phase parallel current output	1000VA
The allowed working time when six phase parallel current maximum output	10s
Frequency range（fundamental wave）	0～1000Hz
Harmonic order	0～20
DC Current Output
Current output	0～±10A / phase
Output precision	0.2 grade
The maximum load volatage output	20V
AC Voltage Output
The virtual value of phase voltage output	0～120V
Output precision	0.1 grade
The virtual value of line voltage output	0～240V
The output power of phase voltage/ line voltage	80VA / 100VA
Frequency range（fundamental wave）	0～1000Hz
Harmonic order	0～20
DC Voltage Output
The output amplitude of phase voltage	0～±160V
Output precision	0.2 grade
The output amplitude of line voltage	0～±320V
The output power of phase voltage/ line voltage	70VA / 140VA
Input and Output
8 channels input	Free contact:1～20mA，24V
8 channels input		Electric potential contacts:“0”: 0～+6V; “1”: +11 V ～ +250V
4 channels output	DC：220 V／0.2 A；AC：220 V／0.5 A
Time measurment range	0.1ms ～ 9999s
measurement accuracy	＜0.1ms
Dimension	455×530×220mm
Weight	32Kg
For more information about our company & products, please CLICK HERE to contact us.

Functional & Characteristics

1.Flexible combination of voltage and current output.And i ndependent DC power output.

2. The device is directly connected with a computer which is convenient and efficient.

3.N ew hi-fi linear power amplifier.

4. High performance Mainframe: the output part adopts DSP control, which has fast operation, real-time digital signal processing
capability, wide bandwidth and high resolution D/A conversion control.

5. Powerful software function,It can also conveniently test and scan protection setting, playback of fault, real-time store test data, display vector, online print report and so on.

6. Perfect self-protection function.
