Quick Details
-
Model Number:
-
MG-glass
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
TLL
-
Product name:
-
glass greenhouse
-
Application:
-
Vegetable Fruits Flowers
-
Material:
-
Hot Galvanized Steel
-
Optional system:
-
Cooling System.irrigation System.ventilation.etc
-
Length:
-
Customized Size
-
Width:
-
Customized Size
-
Features:
-
Stable Structure Easily Assembled
-
wind load:
-
0.5KN/㎡
-
snow load:
-
0.35KN/㎡
-
Max.discharge water ability:
-
120mm/h
Quick Details
-
Size:
-
Large
-
Type:
-
Multi-Span Agricultural Greenhouses
-
Manufacturer:
-
TLL
-
Model Number:
-
MG-glass
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
TLL
-
Product name:
-
glass greenhouse
-
Application:
-
Vegetable Fruits Flowers
-
Material:
-
Hot Galvanized Steel
-
Optional system:
-
Cooling System.irrigation System.ventilation.etc
-
Length:
-
Customized Size
-
Width:
-
Customized Size
-
Features:
-
Stable Structure Easily Assembled
-
wind load:
-
0.5KN/㎡
-
snow load:
-
0.35KN/㎡
-
Max.discharge water ability:
-
120mm/h
Products Description

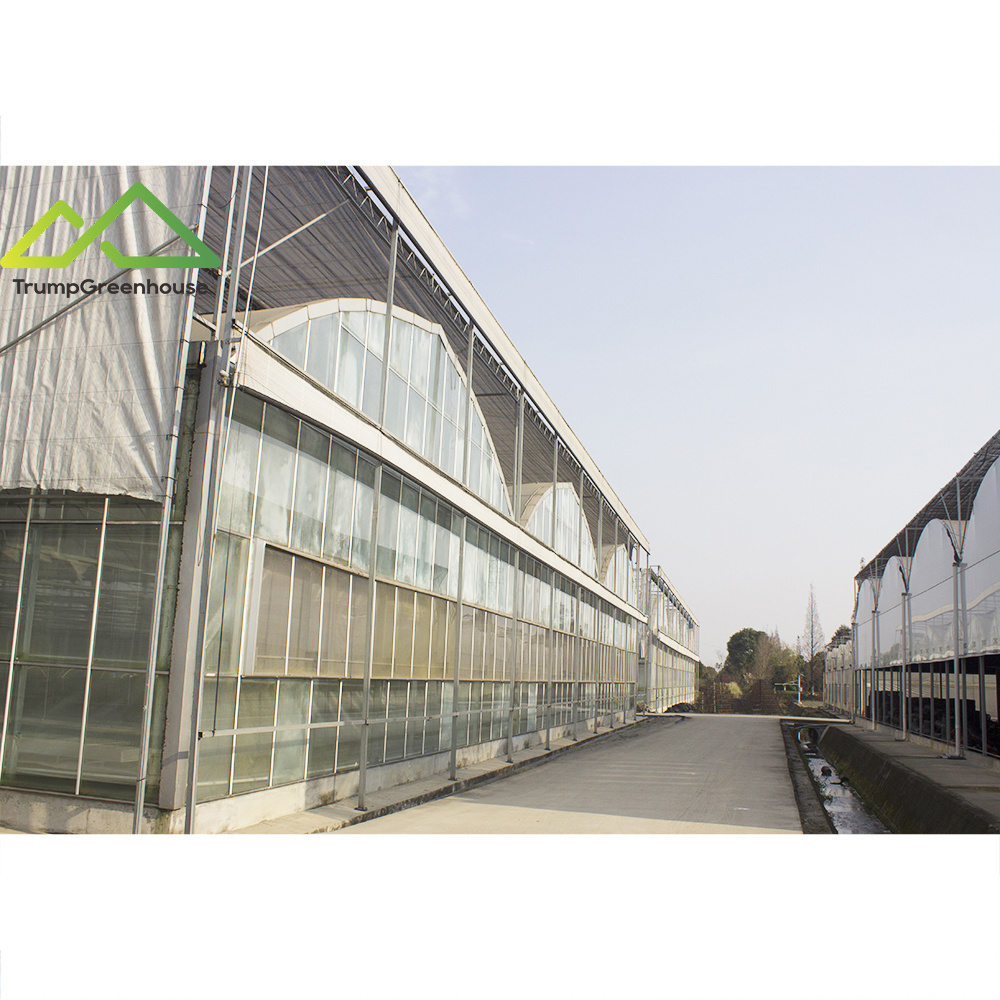

co2 generator for agricultural greenhouse industry glass greenhouse with outside aluminum foil shading net
Suitable for large-area planting and can be equipped with a variety of modern intelligent equipment to adjust the indoor temperature and humidity to adapt to the growth environment of crops, thereby increasing crop yields.
For some flower plants that require relatively high air temperature in the environment, the multi-span greenhouse is more suitable for growing and increasing yield. The main body adopts a hot-dip galvanized frame, which improves the life span.
|
span
|
9m/10m/11m/12m Customized
|
|
length
|
Customized
|
|
eaves height
|
2.5m-7m
|
|
Wind Load
|
0.5KN/㎡
|
|
Snow Load
|
0.35KN/㎡
|
|
Max.discharge water ability
|
120mm/h
|
|
Covering material
|
Roof-4,5.6,8,10mm single layer tempered glass
|
|
|
4-side surrounding: 4m+9A+4,5+6A+5 hollow glass
|
Frame Structure Materials
High -quality hot -dip galvanized steel structure, uses 20 years of service life.
All steel materials are assembled on the spot and do not require secondary treatment.
Galvanized connectors and fasteners are not easy to rust.
Covering Materials
Thickness:
Tempered glass:5mm/6mm/8mm/10mm/12mm.etc,
Hollow glass:5+8+5,5+12+5,6+6+6,etc.
Transmittance:82%-99%
Temperature range:From -40℃ to -60℃
Cooling system
Shading system
Irrigation system
For most greenhouses, the extensive cooling system we use are fans and cooling pad.
When the air penetrates the cooling pad medium, it exchanges heat with the water vapor on the surface of the cooling pad to achieve humidification and cooling of the air.
For most greenhouses, the extensive cooling system we use are fans and cooling pad.
When the air penetrates the cooling pad medium, it exchanges heat with the water vapor on the surface of the cooling pad to achieve humidification and cooling of the air.
According to the natural environment and climate of the greenhouse. Combined with the crops that need to be planted in the greenhouse.
We can choose a variety of irrigation methods; droplets, spray irrigation, micro -mist and other methods. It is completed at one time in hydrating and fertilization of plants.
Ventilation system
Ventilation is divided into electric and manual.
Different from the ventilation position can be divided into side ventilation and top ventilation.
It can achieve the purpose of exchanging indoor and outdoor air and the purpose of reducing the temperature inside the greenhouse.
Lighting system
Setting the optical system in the greenhouse has the following advantages.
First, you can provide a specific spectrum for plants to make plants grow better.
Secondly, the light required for plant growth in the season without light.
Third, it can increase the temperature inside the greenhouse within a specific range.
