Quick Details
-
Brand Name:
-
Gooxi
-
Model Number:
-
DST202-S24RB
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
data storage dual- control server
-
Memory:
-
2400/2133/1866 RDIMM/LRDIMM
-
Processor:
-
Xeon E5-2600 V3/V4
-
Warranty:
-
3 Years
-
Hard Drive:
-
24 2.5 "SAS disks
-
Certification:
-
CE FCC CCC
-
MOQ:
-
2
-
Application:
-
server storage
-
Keywords:
-
data storage
-
Maximum memory:
-
1024GB
Quick Details
-
Type:
-
Rack
-
Processor Type:
-
INTEL
-
Processor Main Frequency:
-
3.0G
-
Brand Name:
-
Gooxi
-
Model Number:
-
DST202-S24RB
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
data storage dual- control server
-
Memory:
-
2400/2133/1866 RDIMM/LRDIMM
-
Processor:
-
Xeon E5-2600 V3/V4
-
Warranty:
-
3 Years
-
Hard Drive:
-
24 2.5 "SAS disks
-
Certification:
-
CE FCC CCC
-
MOQ:
-
2
-
Application:
-
server storage
-
Keywords:
-
data storage
-
Maximum memory:
-
1024GB

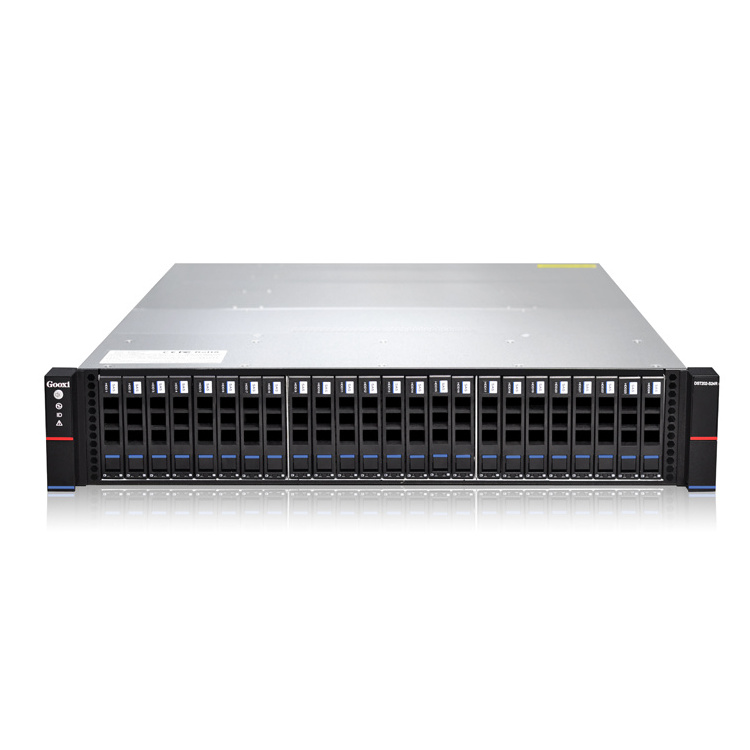

Products Description
Massive storage
Supports two high-performance easy-swappable nodes, single node supports 1x Intel® Xeon® E5-2600 V3/V4 processors/8 DDR4 2400/2133/1866 RDIMM/LRDIMM/24 hot-swap SAS(HDD/SSD)
Data protection
1 + 1BBU redundant battery backup system protects data over 10minutes after AC power-failure.
Large Expansibility
Intel®Xeon® E5-2600 V3/V4 processor. Per controller supports up to 8* DDR4 memories, whole machine up to 1024GB memory.End-to-end 12GB solution maximizes I/O performance.
Power-saving
PSU module adopts 1+1 redundant, intelligent fan control based on PID closed-loop control, power capping NM technology, and DC-DC switch PSU with 94%conversion efficiency.
Rich I/O
Per controller onboard 4 iSCSI host ports, 1 GbE management LAN port and 1 console port; 2* 10Gb iSCSI host ports or 4* 16Gb FC/8GB FC ports can expand.The back-end disk expansion port supports 2* 12Gb SFF8644 Mini SAS HD for each controller.
Specification
|
System Model
|
DST202-S24RB
|
|
Processor
|
A single node supports one Intel® Xeon® E5-2600 V3/V4 series processor Socket H3 (LGA2011) up to 145W CPU
Supports two controller nodes with high performance and easy-swap. Single or dual control mode |
|
Chipset
|
Intel ®C621 series server dedicated chipset
|
|
Memory
|
A single node supports eight DDR4 nodes 2400/2133/1866 RDIMM/LRDIMM
Capacity of a single memory: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB |
|
Storage Controlle
|
PCH supports RAID 0\1\10&5 (for Windows only)
5 SATA 7pins and 2 Mini SAS HD ports |
|
Storage
|
Front: 24 2.5 "SAS disks
Internal storage: One PCIe 3.0 x4/SATA M.2 port (2242, 2280, or 22110) |
|
Network
|
Four iSCSI (Intel®I350 RJ45) host ports
|
|
I/O Ports
|
One gigabit Ethernet management network port (used with IPMI), one Console port (RJ45, compatible with CISCO standard), two 4x12Gb
SFF8644 Mini SAS HD, and optional expansion two 10Gb iSCSI or four 16Gb FC/8Gb FC |
|
PCIe Expansion
|
Each controller supports one half-height PCIe3.0 x8 slot and 1 PCle3.0 x8 Mezzanine interface
|
|
Power Supply
|
Two power off protection BBus and 800W 1+1 redundant power supply
|
|
Fan
|
4x 8038 & 4x 4028 temperature control fans
|
|
Management
|
IPMI2.0
|
|
Security
|
Supports TPM module
|
|
Operating System
|
Microsoft Windows Server、Red Hat Enterprise Linux、 SUSE Linux Enterprise Server、CentOS、Ubuntu
|
|
Server Size
|
600mm x 448mm x 87.6mm(D * W * H)
|
|
Working Temperature
|
Operating temperature: 5º C-35 ºC(indoor)
Storage temperature: -40º C-70 ºC |
|
Package Size
|
975mm*591mm*401mm (D* W* H）
|
|
Metal Thickness
|
1mm SGCC
|
|
Chassis Dimensions
|
670*444*132mm (DxWxH)
|
|
Net Weight
|
15.5 KG
|
|
Carton Dimensions
|
902*591*273mm (DxWxH）
|
|
Gross Weight
|
21.5 KG
|
|
Certification
|
CE, FCC, RoHS
|
