Quick Details
-
Shape:
-
D
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Lisheng
-
Model Number:
-
G2150 Shackle
-
Treatment:
-
Quenched&Tempered
-
OEM:
-
Accept
Quick Details
-
Measurement system:
-
Metric
-
Application:
-
Heavy Industry, Mining, Retail Industry, General Industry, Automotive Industry
-
Material:
-
Carbon steel
-
Shape:
-
D
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Lisheng
-
Model Number:
-
G2150 Shackle
-
Treatment:
-
Quenched&Tempered
-
OEM:
-
Accept

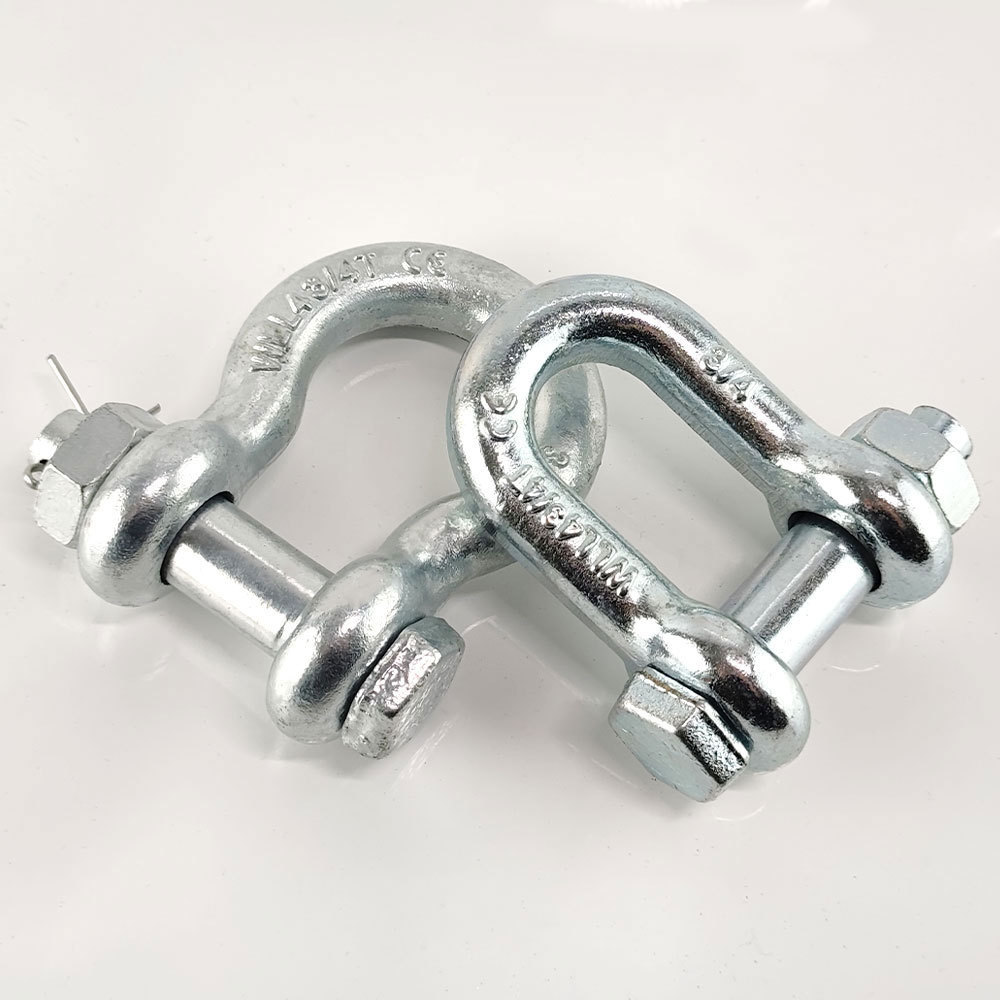

Rigging hardware galvanized US G2150 D type shackle with safety pin
G2150 US type dee shackle is a metal shackle used to join chains and is commonlyused in industrial construction and agricultural equipment.
About material:
This shackle is usually made of stainless steel or forged steel for strength and durability.
About size:
G2150 US type dee shackle are often available in different sizes to accommodatedifferent types and sizes of chain.
About use:
This shackle is suitable for connecting and securing chains. When in use, place it onboth ends of the chain and secure it to the chain by threads.
| Nominal | Weight each/kg | Working | Dimensions/mm | ||||||||||
| Size/in | G2130 | G2150 | Limit/t | A | C | D | E | F | G | H | L | M | P |
| 3/16 | 0.03 | 0.03 | 1/3 | 9.65 | 22.4 | 4.85 | 15.2 | 14.2 | - | 37.3 | 24.9 | - | 32.77 |
| 1/4 | 0.05 | 0.06 | 1/2 | 11.9 | 28.7 | 6.35 | 19.8 | 15.5 | 19.05 | 46.7 | 32.5 | 15.49 | 39.62 |
| 5/16 | 0.1 | 0.1 | 3/4 | 13.5 | 31 | 7.85 | 21.3 | 19.1 | 25.4 | 53 | 37.3 | 19.05 | 46.23 |
| 3/8 | 0.15 | 0.15 | 1 | 16.8 | 36.6 | 9.65 | 26.2 | 23.1 | 30.99 | 63 | 45.2 | 23.11 | 55.12 |
| 7/16 | 0.22 | 0.22 | 1-1/2 | 19.1 | 42.9 | 11.2 | 29.5 | 26.9 | 36.09 | 74 | 51.5 | 41.15 | 63.75 |
| 1/2 | 0.36 | 0.34 | 2 | 20.6 | 47.8 | 12.7 | 33.3 | 30.2 | 41.04 | 83.5 | 58.5 | 45.97 | 71.12 |
| 5/8 | 0.76 | 0.67 | 3-1/4 | 26.9 | 60.5 | 16 | 42.9 | 38.1 | 50.8 | 106 | 74.5 | 58.67 | 89.66 |
| 3/4 | 1.23 | 1.14 | 4-3/4 | 31.8 | 71.5 | 19.1 | 51 | 46 | 60.45 | 126 | 89.5 | 69.85 | 103.38 |
| 7/8 | 1.79 | 1.74 | 6-1/2 | 36.6 | 84 | 22.4 | 58 | 53 | 71.37 | 148 | 102 | 81.03 | 119.63 |
| 1 | 2.57 | 1.52 | 8-1/2 | 42.9 | 95.5 | 25.4 | 68.5 | 60.5 | 81.03 | 167 | 119 | 93.73 | 134.87 |
| 1-1/8 | 3.75 | 3.45 | 9-1/2 | 46 | 108 | 28.7 | 74 | 68.5 | 90.93 | 190 | 131 | 103.12 | 149.86 |
| 1-1/4 | 5.31 | 4.9 | 12 | 51.5 | 119 | 31.8 | 82.5 | 76 | 100.98 | 210 | 146 | 115.06 | 165.35 |
| 1-3/8 | 7.18 | 6.24 | 13-1/2 | 57 | 133 | 35.1 | 92 | 84 | 111.25 | 233 | 162 | 127 | 183.13 |
| 1-1/2 | 9.43 | 8.39 | 17 | 60.5 | 146 | 38.1 | 98.5 | 92 | 122.17 | 254 | 175 | 136.05 | 196.34 |
| 1-3/4 | 15.4 | 14.2 | 25 | 73 | 178 | 44.5 | 127 | 106 | 146.05 | 313 | 225 | 162.05 | 229.87 |
| 2 | 23.7 | 21.2 | 35 | 82.5 | 197 | 51 | 146 | 122 | 171.45 | 348 | 253 | 184.15 | 264.41 |
| 2-1/2 | 44.6 | 38.6 | 55 | 105 | 267 | 66.5 | 184 | 145 | 203.2 | 453 | 327 | 248.25 | 344.42 |
| 3 | 70 | 56 | 85 | 127 | 330 | 76 | 200 | 165 | 215.9 | 546 | 365 | 279.4 | 419.1 |
| 3-1/2 | 120 | - | 120 | 133 | 372 | 92 | 229 | 203 | - | 626 | 419 | - | 282.6 |
| 4 | 153 | - | 150 | 140 | 368 | 104 | 254 | 229 | - | 653 | 468 | - | 501.65 |
