Automatic Wood Hot Press Machine Vacuum Membrane Woodworking Hot Press

Automatic Wood Hot Press Machine Vacuum Membrane Woodworking Hot Press

FOB Reference Price: Get Latest Price

≥1 Sets

US $11780

≥3 Sets

US $11480

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Brand Name:: SOSN

Weight (KG):: 6500 KG

Dimension(L*W*H):: 4000*1700*1800mm

Product name:: Hot press

Function:: Hot pressing

Color:: white+orange

Service:: Aftersale

Advantage:: High Efficiency Low Cost

Package:: Wooden Box

Quick Details

Max.Pressure(T):: 100

Working Table Size(mm):: 1300*2500*42mm

Marketing Type:: Hot Product 2024

Place of Origin:: Shandong, China

Brand Name:: SOSN

Weight (KG):: 6500 KG

Dimension(L*W*H):: 4000*1700*1800mm

Product name:: Hot press

Function:: Hot pressing

Color:: white+orange

Service:: Aftersale

Advantage:: High Efficiency Low Cost

Package:: Wooden Box

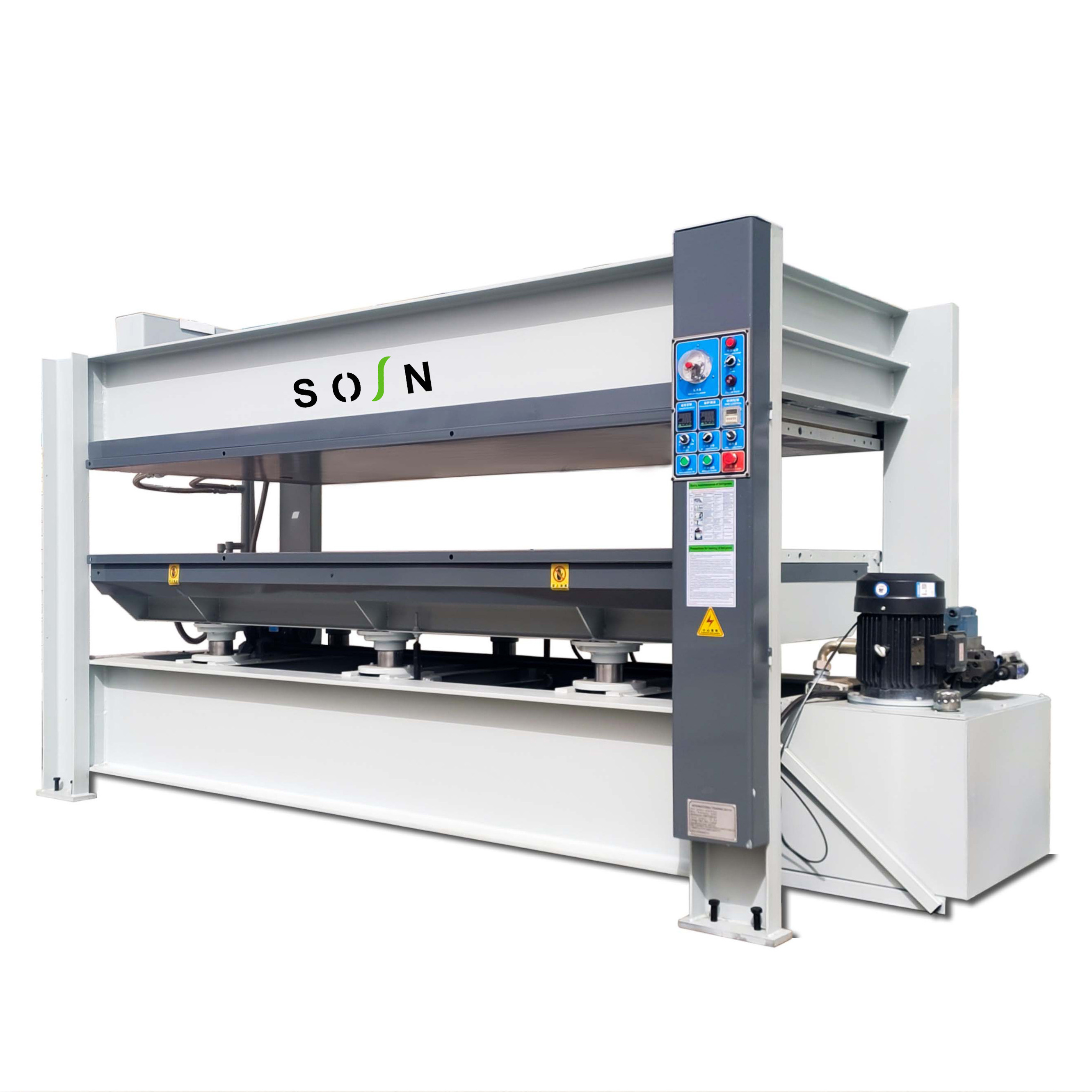

Hot Press Machine

--Suitable to press veneer ,fireproofing-board ,decorating-paper etc.

---make lamination for furniture panel,building partition, wooden door or laminate all kinds of decorative material on man-made board.
---It also can be used for drying or leveling veneer.

---solid steel heat conduction board with deep-hole drilling technic.
---Automatic device for controlling close and open.
---pedal emergency switch, much safety.
---quadric temperature protection device
---Main hydraulic parts cylinders and composites are from Japan and Taiwan .
--- CHINT Electrical parts

Size (Foot)	4x8
Dimension of hot platens (mm)	1300x2500*42mm
Nominal pressure	100T
Max. Service opening	200mm
Number of layers	1 layer
Heating media	Thermal oil or steam
Installed power	4.5kw
Heating power	37.5kw
No. And dia. Of cylinders	6 *90 mm
The voltage	380v,50hz,3phase
Overall dimension	400017001800mm
Weight	6.5T
