1, Directly factory, ensuring high quality while minimizing your costs, all support customization
2, Professionalism, to ensure products are of high technology, high precision and quality
3, Fast delivery and active communication make us a satisfied manufacturer
4,
Complete and satisfactory pre-sales and after-sales services
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Qualitior
-
Focal Spot Diameter:
-
O.3
-
Weight (KG):
-
200 KG
-
Marketing Type:
-
New Product
-
Warranty of core components:
-
1 years
-
Core Components:
-
High Definition Microscope, Liftable operating table, Automatic water pumping, Emergency button, Power on button, Open operation window, Interface panel
-
Welding depth:
-
0.5-5
-
Product name:
-
Qualitior
-
Cooling System:
-
water-cooled
-
Laser type:
-
Continuous Fiber Laser
Quick Details
-
Max. Output Power:
-
2000w
-
Usage:
-
Matel Welding
-
Laser Source Brand:
-
Qualitior
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Qualitior
-
Focal Spot Diameter:
-
O.3
-
Weight (KG):
-
200 KG
-
Marketing Type:
-
New Product
-
Warranty of core components:
-
1 years
-
Core Components:
-
High Definition Microscope, Liftable operating table, Automatic water pumping, Emergency button, Power on button, Open operation window, Interface panel
-
Welding depth:
-
0.5-5
-
Product name:
-
Qualitior
-
Cooling System:
-
water-cooled
-
Laser type:
-
Continuous Fiber Laser
Products Description
Customized high-tech machines & parts
Qualitior Technology Co., Limited
Product Paramenters
|

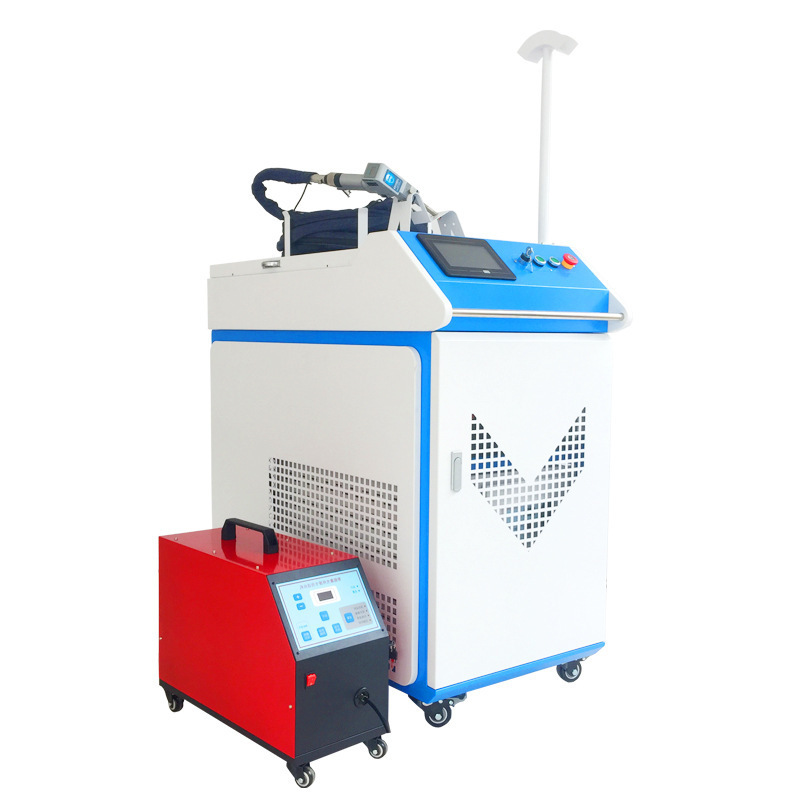

Handheld Fiber Laser Welding Machine
|
|
|
|
|
||||
|
laser power
|
1000w
|
1500w
|
2000w
|
|
||||
|
Depth of fusion (stainless steel，1m/min)
|
1.8mm
|
3.0mm
|
3.9mm
|
|
||||
|
Depth of melting (carbon steel，1m/min)
|
1.75mm
|
2.95mm
|
3.8mm
|
|
||||
|
Depth of melting (aluminum，1m/min)
|
1.0mm
|
2.1mm
|
3.5mm
|
|
||||
|
Automatic wire loading
|
φ0.8-1.2weld
|
φ0.8-1.6weld
|
φ0.8-1.6weld
|
|
||||
|
Power consumption of the whole machine
|
≤3kw
|
≤4.5kw
|
≤6kw
|
|
||||
|
Cooling method
|
water-cooled
|
water-cooled
|
water-cooled
|
|
||||
|
electricity demand
|
220v
|
220v or 380v
|
380v
|
|
||||
|
Argon or nitrogen protection (customer provided)
|
20Liters/minute
|
20Liters/minute
|
20Liters/minute
|
|
||||
|
Positioning mode
|
red light positioning
|
|
|
|
||||
|
Operating mode
|
continuous/modulated
|
|
|
|
||||
|
laser power
|
1000w~2000w
|
|
|
|
||||
|
operating voltage
|
220v±10%AC
|
|
|
|
||||
Products Display
Factory direct supply quality assurance
Handheld Laser Welder
Firmly welded
Smooth welds
quality assurance (QA)
High welding quality & beautiful seam
Can complete the ordinary welding machine can not complete the welding needs,
weld seam solid and beautiful, no slag, not easy to deformation, black.
Product Details
NEW UPGRADE PERFORMANCE IMPROVEMENT
About the product
Product Advantage Comparison
Handheld Fiber Laser Welding Machine
Conventional TIG welding
Simple operation, the average worker half an hour to get started, low employment costs, fast speed, welding speed is the traditional argon arc welding 5 to 10 times, saving three to five welders
Concentrated energy, small thermal deformation, fine and beautiful weld seam, deep melting pool, high strength, can weld very thin materials, can be filled with wire welding, can also be welded without wire welding.
High professional and technical requirements, high cost of employing people, not good for the body, slow speed, low efficiency, heat effect, easy to degenerate, thick weld, irregular, need to be polished for the second time, limitations, can not be welded too thin material, there are consumables, the need to fill in the wire, there are holes easy to weld through the
Detail Show
Fast welding speed, beautiful weld seam, flexible and convenient, saving labor
costs
Welding nozzles made of pure copper, lightweight and flexible overall, integrated gas, protection system
Product Showcase
Wide range of applications
Aluminum windows and doors
shelf for goods
Kitchenware Applications
automobile manufacturing
Welding sample display
aluminum
stainless steels
fillet welding
