Quick Details
-
Brand Name:
-
Saier
-
Model Number:
-
SEN-HZ83K
-
Material:
-
Plastic
-
Color:
-
white color
-
Flow Range:
-
0.3~10L/Min
-
Connection:
-
G3/8 straight structure
-
specifictation:
-
60*31*35mm
-
Flow conversion:
-
1L Water=1319 pulse±5%~8%
-
pressure performance:
-
1.2MPA
-
Line specification and install direction:
-
could be Customized
-
water temperature:
-
less than 60 ℃
-
insulated resistor:
-
>100MΩ
Quick Details
-
Type:
-
Flow Sensors
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Saier
-
Model Number:
-
SEN-HZ83K
-
Material:
-
Plastic
-
Color:
-
white color
-
Flow Range:
-
0.3~10L/Min
-
Connection:
-
G3/8 straight structure
-
specifictation:
-
60*31*35mm
-
Flow conversion:
-
1L Water=1319 pulse±5%~8%
-
pressure performance:
-
1.2MPA
-
Line specification and install direction:
-
could be Customized
-
water temperature:
-
less than 60 ℃
-
insulated resistor:
-
>100MΩ
G3/8
FDA authentication, POM material ,apply to water dispenser,water purifier,coffee machine,beer machine
Certifications
Product Description
|
Product Name
|

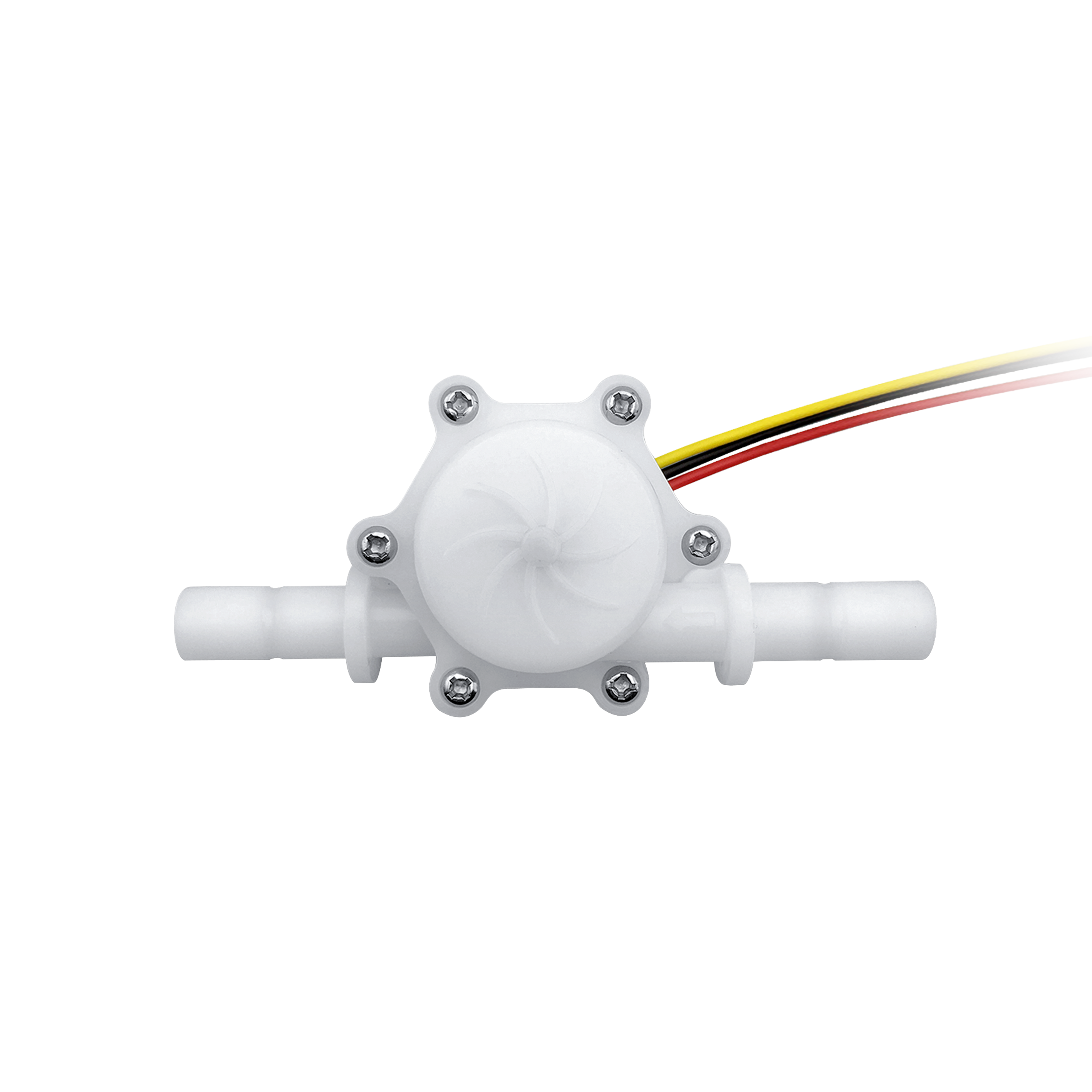

Miniature plastic flowmeter, turbine flow sensor
|
|
|
|
|
||||
|
Material
|
food grade material
|
|
|
|
|
||||
|
Connection Size
|
OD G3/8
|
|
|
|
|
||||
|
Flow Range
|
0.3-10L/min
|
|
|
|
|
||||
|
Contact Capacity
|
DC 5-24V, can be customized DC 3V
|
|
|
|
|
||||
|
Function
|
Measure water flow, It is installed in various coffee machines, water dispensers, and water inlets of electrolyzers to detect the influent flow.
|
|
|
|
|
||||
Details Images
Impeller Flowmeter
Application:
water dispenser,water purifier,coffee machine,beer machine
Material: Food grade
