Quick Details
-
Use:
-
High quality cleaner
-
Production Capacity (kg/h):
-
4500 - 5000
-
Color:
-
Different according to requirement
-
Delivery time:
-
7 days
-
Function:
-
Can be used to kinds of oil seeds.
-
English manual:
-
Yes
-
Noise:
-
≤85dB
-
Sieve form:
-
Rubber ball sieve
-
Capacity:
-
5000kg/h
-
Sieve layers:
-
3
-
Selected rate:
-
>98%
-
Sieve size(H*W):
-
2000*1000 mm
-
Certification:
-
ISO,CE
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
VIC
-
Type:
-
High quality soybean cleaner
-
Use:
-
High quality cleaner
-
Production Capacity (kg/h):
-
4500 - 5000
-
Color:
-
Different according to requirement
-
Delivery time:
-
7 days
-
Function:
-
Can be used to kinds of oil seeds.
-
English manual:
-
Yes
-
Noise:
-
≤85dB
-
Sieve form:
-
Rubber ball sieve
-
Capacity:
-
5000kg/h
-
Sieve layers:
-
3
-
Selected rate:
-
>98%
-
Sieve size(H*W):
-
2000*1000 mm
-
Certification:
-
ISO,CE
Application:
1.This machine main function is accomplished by vertical air screen, which according to the aerodynamic characteristics of the seed, the seeds and the impurities in accordance with the critical speed is different, by adjusting the flow rate, to achieve the purpose of separation of the lighter impurities are inhalation settling chamber concentrate discharged through the air after a good seed sieve into the shaker.
2.Sorting is based on the principle of vibrating screen geometry characteristics of the seed determined different kinds of seeds and varieties, all sizes are different, choose to replace the different specifications sieve, sorting will be able to meet the requirements.
Feature:
1.The machine is my company developed for the primary grain cleaning equipment.
2.The amplitude of screen box is 4mm,the vibration frequency is 960times/min.
3.The body is 2m and made of high quality steel welded bending.
4.Galvanized sheet punching screen thickness is 1mm, sieve flatness, pore size, pore width meet with the GB3943 requirements.
5.The suction efficient winding system, equipped with spiral dust, effectively improve the working environment.
6.Screen box is sealed and rubber balls sieve, little pollution. Have better adaptability and convenience, sieve layers can be customized on request.
Main data
|
Type |
VIC-5DH Wind screen cleaning machine |
|
Size |
4970*1950*3100 mm |
|
Capacity |
5000kg/h |
|
Power |
7.74kw |
|
Sieve layers |
3 layers |
|
Sieve size(H*W) |
2000*1000 mm; |
|
Selected rate |
>98% |
|
Sieve form |
Rubber ball sieve |
|
Noise |
≤85dB |

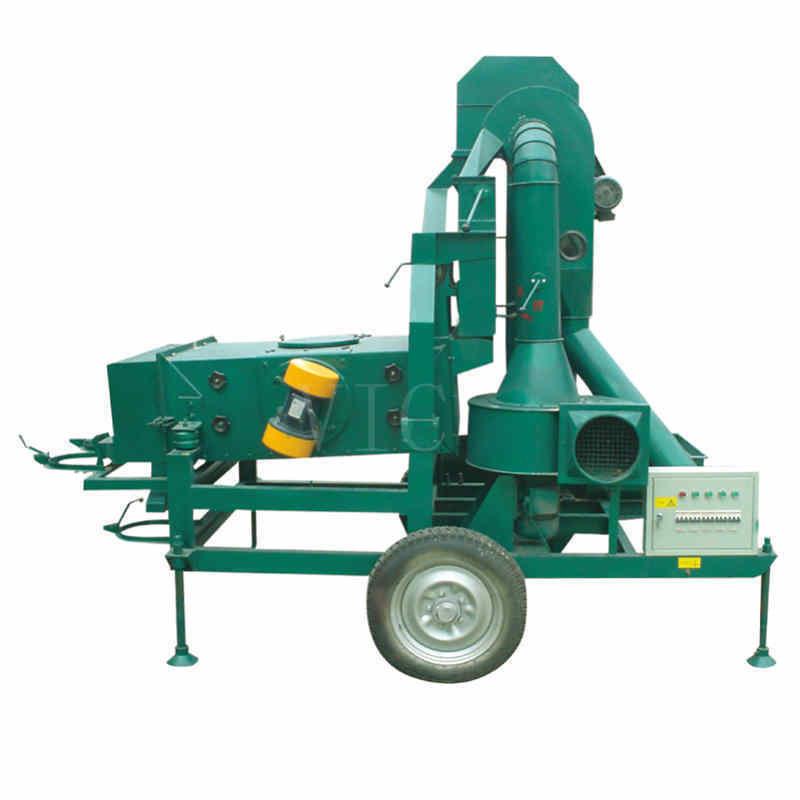

The picture
Packaging
Shipping:
Delivery time: In 15 days after paid deposit.
Packing: wooden case package.
Partial shipment:not allowed
Transshipment:allowed
For warranty parts and service:
**1 year warranty.
**Within warranty period, all exchanges due to defects are free (Buyer is responsible for shipping charges).
** Within warranty period, As to after-sales service, all the freight fare and accommodation will be paid by buyer
