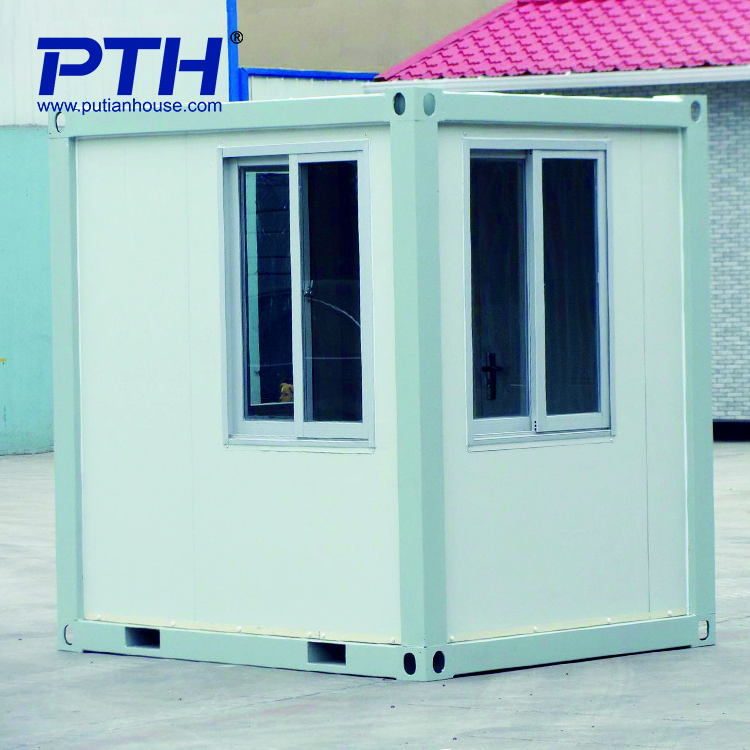

10ft Sandwich Panel sentry box, Kiosk, Mobile Coffee shop,Booth Use prefab home container house

10ft Sandwich Panel sentry box, Kiosk, Mobile Coffee shop,Booth Use prefab home container house

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1250

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Certificate:: IOS, CE

Wall system:: 50/75/100mm EPS(PU,rcok wool,PIR) sandwich panel

Roof:: 70mm rock wool sandwich panel

Column:: 3mm galvanized container home

Window:: PVC sliding window with roller shutter

Floor:: 18mm cement fiber board + PVC

Door:: Steel door/Aluminum alloy sliding door/sandwich panel door

Electricity:: Customization

Size:: 8*20', 10*20', 10*24'

Color:: White, Blue, Gray, Red, etc.

Model Number:: PTJ-8*20

Quick Details

Application:: Booth

Place of Origin:: Zhejiang, China

Brand Name:: PTH

Certificate:: IOS, CE

Wall system:: 50/75/100mm EPS(PU,rcok wool,PIR) sandwich panel

Roof:: 70mm rock wool sandwich panel

Column:: 3mm galvanized container home

Window:: PVC sliding window with roller shutter

Floor:: 18mm cement fiber board + PVC

Door:: Steel door/Aluminum alloy sliding door/sandwich panel door

Electricity:: Customization

Size:: 8*20', 10*20', 10*24'

Color:: White, Blue, Gray, Red, etc.

Model Number:: PTJ-8*20

Modular Container House for Temporary Dormitory, Single Department, Office-PTH prefab container houses

Detailed Photos

Products Description

Frame: Q355 steel structure is hot-dip galvanized and completed welding, coated with hot galvanized zinc 100g/m2+surface uses electrostatic powder treatment finish 100um.Q355 Steel is better than Q235 ,and with HDG treatment with powder sprayi ng,it woul d keep the frame in high anti-corrosion .

Roof: For the roof ,our cases is PU foaming (45kg/m3 which meets standard of PIR)which has high integarity for the airtightness which would be better than common EPS sandwich panel or glass wool as roof insulation.

Panel: For the sandwich panels,we remarks with density and thickness of both sides of steel sheets,in the same time,you can find the treatment with Aluminum zinc magnesium AMZ galvanized 100g/m2 with PE baking finish 20/5um. which can last more than 25 years.

Specifications

Size	Length	6058mm / 6000mm or customized
		Width	2438mm /3000mm or customized
		Height	2600mm / 2791mm / 3000mm or customized
		Clear height indoor	5800mm2200mm2300mm, it is changable
Standard accessory	Roof System	Top structure + 70mm thick integrated PU foam insulation + embedded electrical system
		Chassis System	steel struction chassis + 18mm thickness cement-fiber board + 2mm thickness PVC floor sheet (glass wool insulation for optional)
				Permitted loading:>2.5KN/m2
		Wall System	50/75/100mm EPS sandwich panel, rock wool sandwich panel,glass fiber sandwich panel, or PU sandwich panel
		Door System	Steel door / Fire-proof door / Sandwich panel door
		Window System	Aluminum alloy shutter window and the plastic-steel window, single or double glass
		Floor System	PVC, plywood or customized
Option	Drainage system	Provided plan, design and constrution
		Electric system	Provided plan, design and constrution
Technical parameter	Resistant temperature	-40ºC to 40ºC
		Wind resistance	210km/h
		Earthquake resistance	Grade 8
