Quick Details
-
Model Number:
-
other
Quick Details
-
Certification:
-
other, ROHS, CE, U L
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
zjtex
-
Model Number:
-
other

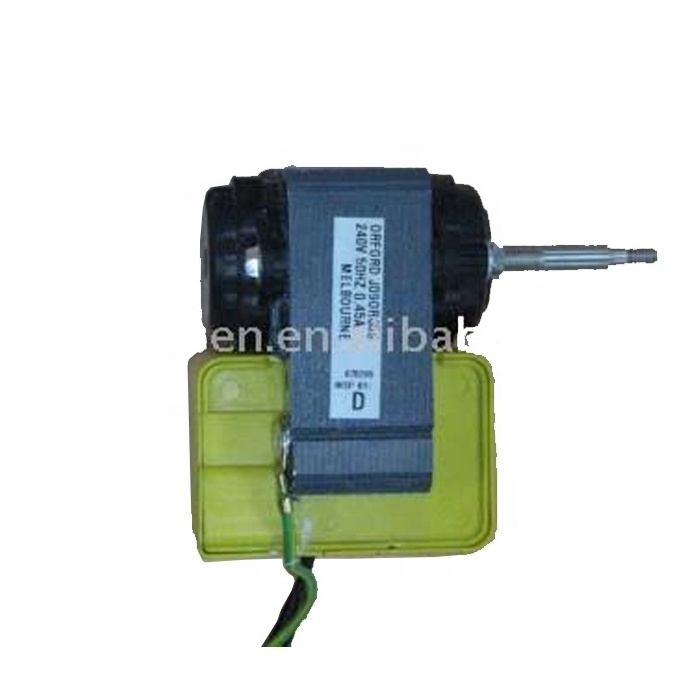

YJF61 Series shade pole motors are mainly used in microwave ovens, air conditioner, bathing machines, air purifiers, heaters, dish washing machines, automatic warming hands machines, refrigerators, freezing chests, slide projectors, water pumps and oil pumps, etc.
Technical specifications :
|
Model
|
VOL
|
HZ
|
FREE LOAD
|
ON LOAD
|
(MN . M) |
STARTING TORQUE
(MN
.
M)
|
OUTPUT (W)
|
|||||
|
CURRENT
(A)
|
INPUT
(W)
|
(RPM) |
CURRENT
(A)
|
RATED POWER(W)
|
SPEED
(RPM)
|
(MN . M) |
||||||
|
YJF61/10-2
|
220
|
50
|
0.130
|
12.0
|
2820
|
0.150
|
15.0
|
2300
|
5.88
|
7.84
|
4.90
|
1.4
|
|
YJF61/13-2
|
0.150
|
15.0
|
2830
|
0.170
|
17.5
|
2300
|
8.82
|
14.70
|
6.86
|
2.2
|
||
|
YJF61/15-2
|
0.170
|
18.0
|
2850
|
0.190
|
20.0
|
2350
|
12.74
|
15.68
|
8.82
|
3.2
|
||
|
YJF61/16-2
|
0.180
|
21.0
|
2850
|
0.200
|
23.0
|
2350
|
14.70
|
17.64
|
9.80
|
3.7
|
||
|
YJF61/20-2
|
0.200
|
22.0
|
2850
|
0.210
|
25.0
|
2500
|
16.56
|
19.60
|
13.72
|
4.5
|
||
|
YJF61/25-2
|
0.230
|
25.0
|
2850
|
0.250
|
28.0
|
2550
|
19.60
|
22.54
|
17.64
|
5.4
|
||
|
YJF61/30-2
|
0.265
|
28.5
|
2850
|
0.285
|
31.0
|
2600
|
23.00
|
25.00
|
20.58
|
6.45
|
||
|
YJF61/35-2
|
0.300
|
31.5
|
2850
|
0.320
|
34.5
|
2600
|
26.46
|
28.90
|
24.00
|
7.42
|
||
|
1.Rotate direction: cw or ccw
2.Time rating: S1
3.Insulation class: E
4.The main characters of motor can be designed according to the voltage (220V, 50HZ or 110V, 60HZ) and the real load of user whole machine. 5.Length of shaft can be made according to user requirement. 6.Coil can be sealed by ABS plastics or epoxy. 7.The end of coil may use all kind of plastic wire or 187#, 250# socket. 8. There are 30 kinds of brackets made of aluminum or strengthened nylon in factory, these brackets will combine with sliding bearing or ball bearing, the diameter of shaft can be designed from 2.5mm to 6mm, and other kinds of brackets can be made according to user requirement. |
