Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RuiFeng
-
Model Number:
-
RF
-
Product type:
-
Push Button Swicth
-
Mounting Hole Size:
-
22mm
-
Application:
-
General-Purpose
-
Feature:
-
Water-proof
-
Terminal type:
-
Pin Terminal
-
Operating temperature:
-
-25 ~+55
-
Operation type:
-
Turn
-
Switch combination:
-
5 position or 6position
-
Material:
-
Brass Nickel Plated/stainless steel
-
Illuminated type:
-
LED available
-
Certification:
-
China
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
3A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RuiFeng
-
Model Number:
-
RF
-
Product type:
-
Push Button Swicth
-
Mounting Hole Size:
-
22mm
-
Application:
-
General-Purpose
-
Feature:
-
Water-proof
-
Terminal type:
-
Pin Terminal
-
Operating temperature:
-
-25 ~+55
-
Operation type:
-
Turn
-
Switch combination:
-
5 position or 6position
-
Material:
-
Brass Nickel Plated/stainless steel
-
Illuminated type:
-
LED available
-
Certification:
-
China

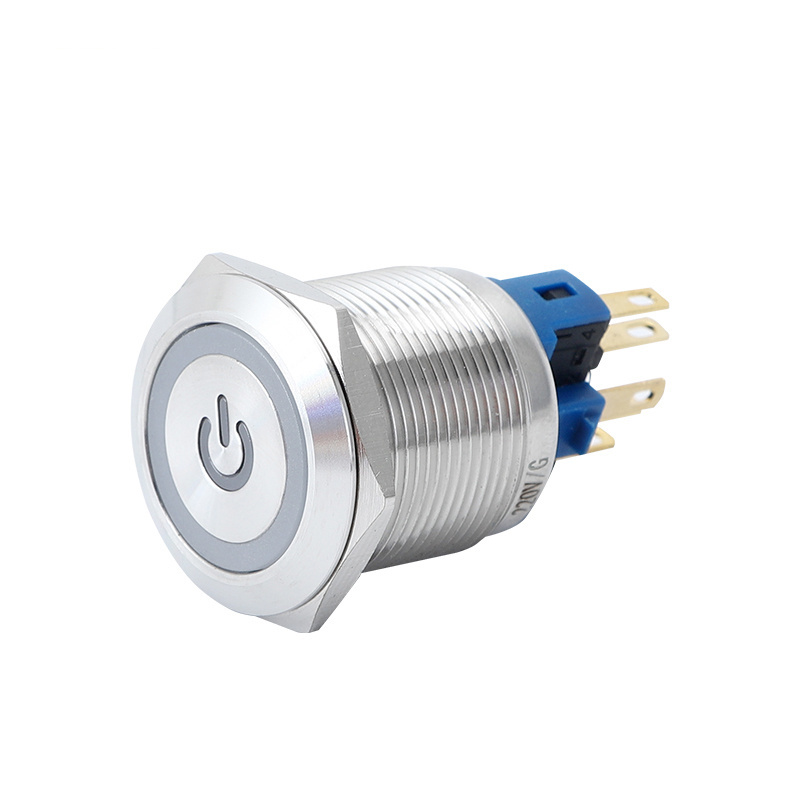

22mm 12V/24V Mounting Hole 5pin IP67 momentary latching LED light metal push button switch
Size
: Ø 22mm
Switch Rating
: 3A/250VDC
Head shape
: Flat or High
Contact configuration
: NO
Operation type
: Momentary / Latching
LED color
: Red (other options: Blue, Green, Yellow, Orange, white)
LED voltage
: 12V (other options: 6V, 24V, 110V, 220V)
Shell material
: Stainless steel
Grades
: IP67
Terminal type
: Pin terminal
What you need it?
The following information is very important
1. Head shape: Flat Head/High Head
2.Operation type
3.LED Voltage
4. Please confirm your LED Color
5.Connection type: Solder Terminal or Screw Terminal
6. Switch Combination:10-1NO/NC 11-1NO1NC 22:2NO2NC
7. LED illumination types
8.Shell material
9. With hardness or without
Product characteristics
Wide Application ,can be used in wet or dusty environment.
Feature :Stable Current;Long life;Flame-resistant Fire;Waterproof,explosionproof;Anti-Vandal non-corrosive;Large contact surface
| Protection Level | IP7, IK10 |
| Ambient temperature | -20℃~+55℃ |
| Electrical life | ≥50,000 times |
| Mechanical life | ≥500,000 times |
| Contact resistance | ≤50mΩ |
| Insulation resistance | ≥1000mΩ |
| Dielectric strength | 1500VAC |
| Nut torque | 5~14Nm |
|
Nut
|
Brass Plated Nickel |
| Base/Bottom/Insert | High Flame Retardant PA66 |
| Switch Rating | 3A/250VAC |
| Panel thickness | ≤10mm |
| Accessories | O-ring,Nut |
| Customized requirement | Acceptable |
