Quick Details
-
Knitting Method:
-
Single
-
Computerized:
-
Yes
-
Gauge:
-
7 GG, 12 GG, 14 GG, 16 GG, 9 GG, 5 GG, 10GG, 8GG, 3-5-7 multi-gauge, 8-10-12 multi-gauge
-
Knitting width:
-
52 inch
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HAOYUE
-
Power:
-
1000 W
-
Weight:
-
600 KG
-
Dimension(L*W*H):
-
2400*850*1700cm
-
Product Name:
-
Flat sweater knitting machine
-
knitting width:
-
52Inch
-
guage:
-
5G, 7G, 8G, 9G, 10G, 12G, 14G, 16G
-
knitting system:
-
single system
-
After-sales Service Provided:
-
Video technical support
-
Certificate:
-
CE Certificate
Quick Details
-
Type:
-
Flat
-
Production Capacity:
-
Max:1.6m/s
-
Knitting Style:
-
Weft
-
Knitting Method:
-
Single
-
Computerized:
-
Yes
-
Gauge:
-
7 GG, 12 GG, 14 GG, 16 GG, 9 GG, 5 GG, 10GG, 8GG, 3-5-7 multi-gauge, 8-10-12 multi-gauge
-
Knitting width:
-
52 inch
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HAOYUE
-
Power:
-
1000 W
-
Weight:
-
600 KG
-
Dimension(L*W*H):
-
2400*850*1700cm
-
Product Name:
-
Flat sweater knitting machine
-
knitting width:
-
52Inch
-
guage:
-
5G, 7G, 8G, 9G, 10G, 12G, 14G, 16G
-
knitting system:
-
single system
-
After-sales Service Provided:
-
Video technical support
-
Certificate:
-
CE Certificate

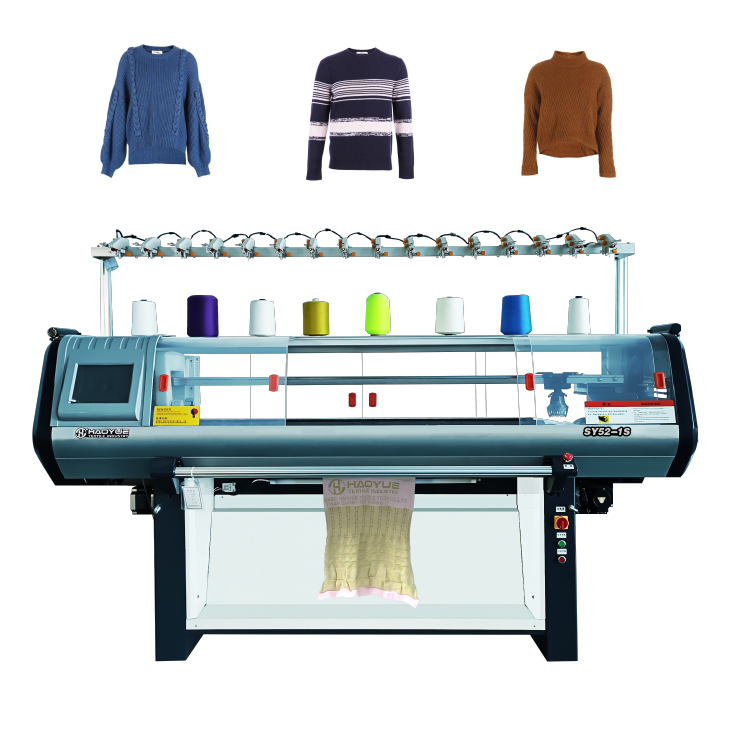

Single system flat sweater knitting machine
|
Machine show |
|
|
|
|
High quality mountain plate, the latest cam board controlled by stepper motor transmission, performance is more stable. |
Maximum speed is 1.6m/s, adjustable according to the width and patterns of knitwear to avoid invalid movement and achieve high efficiency. It also has short circuit protection of electromagnet, current excessive and jam protection of motor. |
|
|
|
|
Adopting industrial LCD, graphic interface, color display. On working condition, parameters like weaving pieces, finished pieces, time, velocity, Roller, mesh number, yarn nozzle etc, could be all displayed clearly on the screen. When running, you can adjust parameters freely. This is the most convenient and time-saving device. All you need to do is just focusing on the fabric and inputting the command, and then all the parameters and pattern types could be changed. |
Made by special wear-resistant steel, the nozzle can avoid long yarn fabric pilling, yarn broken, easy to cross, less yarn shaking. The combined yarns leave little impact and friction and moves quite smoothly when through across each other. |
|
SPECIFICATION, GAUGE AND TECHNICAL PARAMETER |
|
| Gauge | 5G,7G,8G,9G,10G,12G,14G,16G |
| Knitting width | 48,52,56,60,66,68,72,80inch |
| Knitting system | Single carriage with single system |
| Knitting function | Knit, miss, turk, transfer, pointel, intarsia, jacquard, apparent or hide shaping and other regular or irregular patterns |
| Knitting speed | Controlled by sevro-motor with 32 sections optional, max speed reach 1.6M/S |
| Racking | Controlled by sevro-motor racking within 2 inches and with fine adjusting function |
| Needle selection |
Advanced encoder reading pin.8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width jacquard needle selector. |
| Stitch density |
Controlled by stepping motor, 32 section stitch selectable adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled. |
| Transfer |
Triangular composite design can realize the efficient stitch reversing. |
| Comb device | Grip or knock-over the yam reliably (Optional) |
| Cutters and Grippers | Include 2 cutters and 4 grippers, controlled by 6 motors respectively(Optional) |
| Take-down system |
Computer programs instruction,stepper motor control and 32-stagetension selection with an adjustable range between 0-100 |
| Color-changing sytem |
2×6 yarn feeders at the single side of 3 guide rails, shiftable on any needle position. |
| Protection system |
The machine will automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking, needle breakage, error programming occur, also set up the safety auto-lock protect device. |
| Control system |
1. LCD industrial display, Can display various parameters, which can be adjustable during operation. 2. USB memory interface,System memory 1G. 3. Free design system is visual and easy to understand and software upgrade free of charge. Support multi-language operation as Chinese and English, Spanish, Russian etc. |
| Network fuction | Has network interface,enable remote-monitoring via network,and connecting with ERP system. |
| Power |
Single-phase 220V/three-phase 380V,adopt advanced CMOS technology, having memorizing function at power shock stop. |
|
Machine details show |
