Quick Details
-
Cooling Capacity:
-
50ton
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Moon
-
Voltage:
-
220v,240v,380v, 220V/380V
-
Power:
-
customized
-
Dimension(L*W*H):
-
customized
-
Weight:
-
50 KG
-
Application:
-
Cold Storage Room Freezer Room
-
Functions:
-
Vegetable Refrigerator Fruit Storage
-
Keywords:
-
Coldroom Cold Storage
-
Product Type:
-
Cold Stroage Room
-
After-sales Service Provided:
-
Online Support
-
Application of Industry:
-
Fresh Storage
-
Usage of cold room:
-
Freeze Preservation
-
Product name:
-
Freezing Chamber
Quick Details
-
Temperature:
-
-40℃ ~ +20℃
-
Compressor brand:
-
Bristol, Maneurop
-
Panel Thickness:
-
100mm, 200mm, 120mm, 150mm, Other
-
Cooling Capacity:
-
50ton
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Moon
-
Voltage:
-
220v,240v,380v, 220V/380V
-
Power:
-
customized
-
Dimension(L*W*H):
-
customized
-
Weight:
-
50 KG
-
Application:
-
Cold Storage Room Freezer Room
-
Functions:
-
Vegetable Refrigerator Fruit Storage
-
Keywords:
-
Coldroom Cold Storage
-
Product Type:
-
Cold Stroage Room
-
After-sales Service Provided:
-
Online Support
-
Application of Industry:
-
Fresh Storage
-
Usage of cold room:
-
Freeze Preservation
-
Product name:
-
Freezing Chamber
Product Description
Specification
|
Item Name
|
Condensing unit
|
|
|
||
|
|
|
Semi-hermetic Reciprocating compressor
|
2HP-50HP
|
||
|
|
|
2-stage Semi-hermetic Reciprocating compressor
|
5HP-60HP
|
||
|
|
|
Semi-hermetic Screw Compressor
|
Min: 30HP
|
||
|
|
Refcomp Compressor condensing unit
|
Semi-hermetic Reciprocating compressor
|
2HP-50HP
|
||
|
|
|
Semi-hermetic Screw Compressor
|
Min: 30HP
|
||
|
|
Monoblock condensing unit
|
Embraco,Manuerop,etc .compressor
|
|
||
|
|
AC type condensing unit
|
Copeland,Panosonic,Danfoss,etc. Scroll compressor
|
2-15HP
|
||
|
Refrigerant
|
R404A,R507A,R407F,R22,R134A
|
|
|
||
|
Power supply
|
220v/50hz/1phase,220v/60hz/1phase,380v/50hz/3phase,220v/60hz/3phase,440v/60hz/3phase
|
|
|
||
|
Condensor type
|
Air cooled condensor,water-cooled condensor,evaporative condensor
|
|
|
||
|
Fan type
|
Axial fan: High degree of protection, large Air flow, low noise
|
|
|
||
|

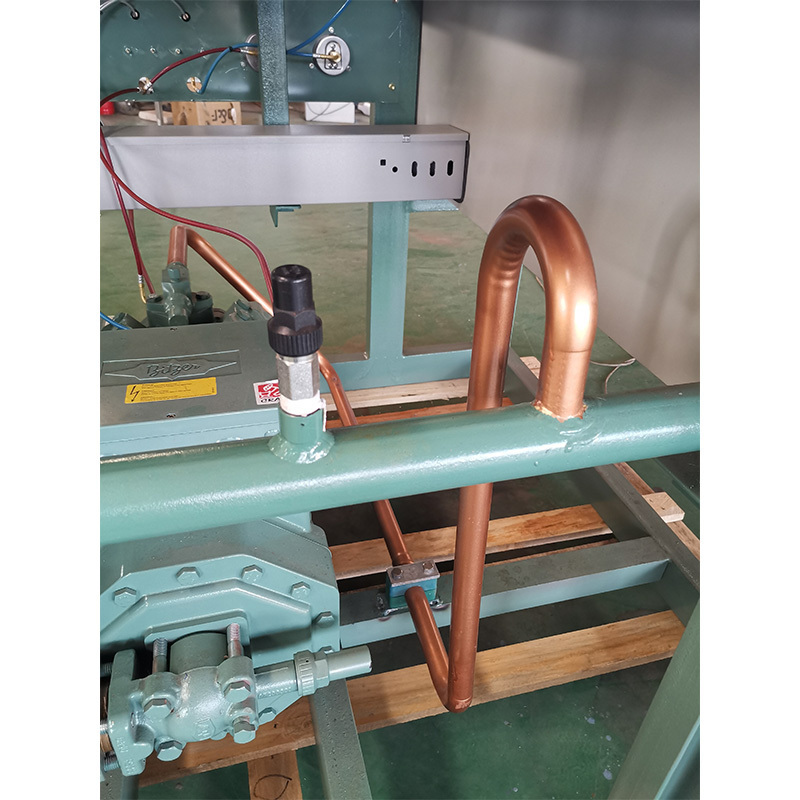

Open Type Condensing unit
|
|
|
|
|
||||
|
Compressor type
|
|
Semi-hermetic Reciprocating compressor,
2-stage Semi-hermetic Reciprocating compressor |
|
|
||||
|
Horsepower
|
|
2HP-23HP
|
|
|
||||
|
Compressor brand
|
|
Original Bitzer,Recomp Italy,Frascold Italy,Copeland Emerson,customized.
|
|
|
||||
|
Condensor type
|
|
Air cooled condensor
|
|
|
||||
|
Cold room temperature range
|
|
-5~+15’c ,-10~-32’c,-15~-50’c
|
|
|
||||
|
Power supply
|
|
380v/50hz/3phase,220v/60hz/3phase,440v/60hz/3phase
|
|
|
||||
|
Components(standard)
|
|
1.Compressor 2.Condenser 3. Oil supply globe valve 4. Liquid receiver 5. Filter 6. Sight glass 7. Solenoid valve
8.H/L P gauge 9. Mechanical Pressure controller 10. Suction filter 11. Vibration eliminator 12. Oil separator 13. Gas separator 14.Filter Barrel |
|
|
||||
|
Box Type Condensing Unit
|
|
|
|
|
||||
|
Compressor type
|
|
Semi-hermetic Reciprocating compressor,
2-stage Semi-hermetic Reciprocating compressor Screw compressor |
|
|
||||
|
Horsepower
|
|
3HP-60HP
|
|
|
||||
|
Compressor brand
|
|
Original Bitzer,Recomp Italy,Frascold Italy,Copeland Emerson,customized.
|
|
|
||||
|
Condensor type
|
|
V type air cooled condensor
|
|
|
||||
|
Cold room temperature range
|
|
-5~+15’c ,-10~-32’c,-15~-50’c
|
|
|
||||
|
Power supply
|
|
380v/50hz/3phase,220v/60hz/3phase,440v/60hz/3phase
|
|
|
||||
|
Components(standard)
|
|
1.Compressor 2.Condenser 3. Oil supply globe valve 4. Liquid receiver 5. Filter 6. Sight glass 7. Solenoid valve
8.H/L P gauge 9. Mechanical Pressure controller 10. Suction filter 11. Vibration eliminator 12. Oil separator 13. Gas separator 14.Filter Barrel |
|
|
||||
|
Compressor Rack unit
|
|
|
|
|
||||
|
Compressor type
|
|
Semi-hermetic Reciprocating compressor,
2 stage Semi-hermetic Reciprocating compressor Screw compressor |
|
|
||||
|
Horsepower
|
|
Hundreds horsepower ,customized
|
|
|
||||
|
Compressor brand
|
|
Original Bitzer,Recomp Italy,Frascold Italy,Copeland Emerson,customized.
|
|
|
||||
|
Condensor type
|
|
V type air cooled condensor or water cooled condensor or evaporative condensor
|
|
|
||||
|
Cold room temperature range
|
|
-5~+15’c ,-10~-32’c,-15~-50’c
|
|
|
||||
|
Power supply
|
|
380v/50hz/3phase,220v/60hz/3phase,440v/60hz/3phase
|
|
|
||||
|
Control system
|
|
PLC control or customized
|
|
|
||||
|
AC Type Condensing Unit
|
|
|
|
|
||||
|
Compressor type
|
|
Scroll type compressor
|
|
|
||||
|
Horsepower
|
|
2hp~15hp
|
|
|
||||
|
Compressor brand
|
|
Copeland Emerson,Danfoss,customized
|
|
|
||||
|
Condensor type
|
|
Air cooled condensor
|
|
|
||||
|
Cold room temperature range
|
|
+15~-30’c
|
|
|
||||
|
Power supply
|
|
380v/50hz/3phase,220v/50hz/1phase
|
|
|
||||
|
Monoblock Condensing Unit
|
|
|
|
|
||||
|
Compressor type
|
|
Scroll type compressor
|
|
|
||||
|
Horsepower
|
|
0.5hp~3hp
|
|
|
||||
|
Compressor brand
|
|
Spanish Kide,Invotech,customized
|
|
|
||||
|
Condensor type
|
|
Air cooled condensor
|
|
|
||||
|
Cold room temperature range
|
|
+10~-25’c
|
|
|
||||
|
Power supply
|
|
380v/50hz/3phase,220v/50hz/1phase,,220v/60hz/1phase
|
|
|
||||
|
Oil and gas inside the monoblock unit
|
|
|
|
|
||||
How to get the suitable compressor model number?Kindly advice the following details:
1).Refrigerant type
2).The cooling capacity
3).The cold room temperature
4).The power supply
FAQ
Q1: Are you a factory or a trading company?
A1: We are a factory and we are offering our goods to trading companies.
Q2: Where is your factory located?
A2: Our factory is located in Jinan, shandong province,north of China.
Q3.What is your delivery time?
A3：The delivery time is 5~7days
Q4: What is the Payment Terms?
A4: 40% advance payment in T/T, 60% balance before delivery
Q5: What is the warranty of products?
A5:1) 12 months warranty: non-artificial free exchange damaged parts along with the shipment in warranty
2)Per your special requests are welcome for discussion
3)After-sale: Salesmen phone 24 hours a day, if you meet any question, we will serve you at any time.
Q6: Packaging & Shipping?
A6:①Packaging：PVC film for cold room door, carton box for Accessories.Pallet, wooden case or as per customers' specific requirements.
② Shipping：By sea
Q7: What is the main market for your products?
A7: We have customers all over the world.Our main market is in Oceania(Australia,Newzealand), North America,Southeast Asia,Mid Asia, South America, Africa and so on.
Q8: What information is needed to provide the quotation?
A8: Generally, for cold room door we need to know the following information in order to suggest the suitable cold room door and for providing the quotation.
①Temperature of cold room.
②Dimension of the opening of the cold room door.
③Door type
