Quick Details
-
Model Number:
-
WNK811
-
Output signals:
-
4~20mA, 1-5V, 0-5V, 0-10V, 0.5V-4.5V, I2C
-
Pressure range:
-
-1~600Bar
-
Housing material:
-
304SST
-
Measured media:
-
liquid, gas and steam
-
Accuracy:
-
0.5%F.S
-
Protection class:
-
IP65
-
Power Supply:
-
24VDC/12VDC/5VDC/3.3V
-
Product name:
-
diffused Silicone oil filled pressure sensor
-
Application:
-
Water Oil Air Pressure Measurement
-
Process connection:
-
G1/8, G1/4, 1/4NPT,1/8NPT
Quick Details
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
WNK
-
Model Number:
-
WNK811
-
Output signals:
-
4~20mA, 1-5V, 0-5V, 0-10V, 0.5V-4.5V, I2C
-
Pressure range:
-
-1~600Bar
-
Housing material:
-
304SST
-
Measured media:
-
liquid, gas and steam
-
Accuracy:
-
0.5%F.S
-
Protection class:
-
IP65
-
Power Supply:
-
24VDC/12VDC/5VDC/3.3V
-
Product name:
-
diffused Silicone oil filled pressure sensor
-
Application:
-
Water Oil Air Pressure Measurement
-
Process connection:
-
G1/8, G1/4, 1/4NPT,1/8NPT
Product Description

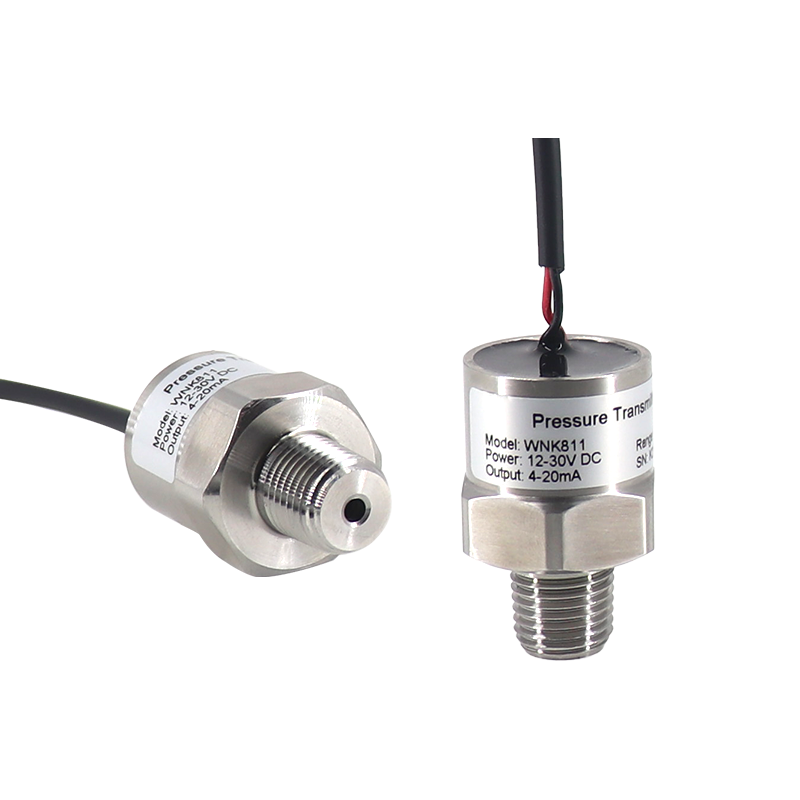

WNK811 Silicone Oil-Filled Water Pressure Sensor/Air Pressure Transducer For IOT Application
WNK811 is a series of high performance compact pressure transducer, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 10 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.
Specifications
| Pressure Type | Gauge Pressure , Absolute Pressure, Sealing Pressure |
| Pressure Range | -1 - 60Mpa |
| Accuracy | 0.5%FS |
| Power Supply | 5VDC, 12-32VDC |
| Measuring Media | Gas, Steam, Liquid, Oil |
| Output | |
| Analog | 4-20mA, 0.5-4.5V, Other |
| Digital | I 2 C, |
| Operation Condition and Temperature | |
| Compensation Temperature | -40...75℃ |
| Medium Temperature | -45 ... 85℃ |
| Storage Temperature | -45 ... 85℃ |
| Material and Protection | |
| Ingress Protection | IP65, IP67 |
| Housing Material | 304SS, 316L |
Applications
| - Automobile, Compressor and Refrigeration Industry |
| - Engineering machinery |
| - Pressure control and monitor |
| - Water treatment system |
| - Hydraulic and Pneumatics |
| - HAVC and BAS Control |
| - Pump, fitness equipment, household appliances |
| - Factory Automation |
| - Fluid Control and Instrumentation Systems |
Pressure Port
