- Product Details
- {{item.text}}
Quick Details
-
Network:
-
other
-
Product name:
-
photocell sensor for automatic door/gate
-
Power supply:
-
DC/AC 12 to 24V
-
Size:
-
49.2 x 76 x 21.6mm
-
Working current:
-
40mA
-
Relay Output:
-
1A max 36v
-
Range:
-
15m
-
Current:
-
Rx15mA-Tx30mA
-
Wave length:
-
940nm
-
Temperature range:
-
-25℃~55℃
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YET
-
Model Number:
-
YET607
-
Network:
-
other
-
Product name:
-
photocell sensor for automatic door/gate
-
Power supply:
-
DC/AC 12 to 24V
-
Size:
-
49.2 x 76 x 21.6mm
-
Working current:
-
40mA
-
Relay Output:
-
1A max 36v
-
Range:
-
15m
-
Current:
-
Rx15mA-Tx30mA
-
Wave length:
-
940nm
-
Temperature range:
-
-25℃~55℃

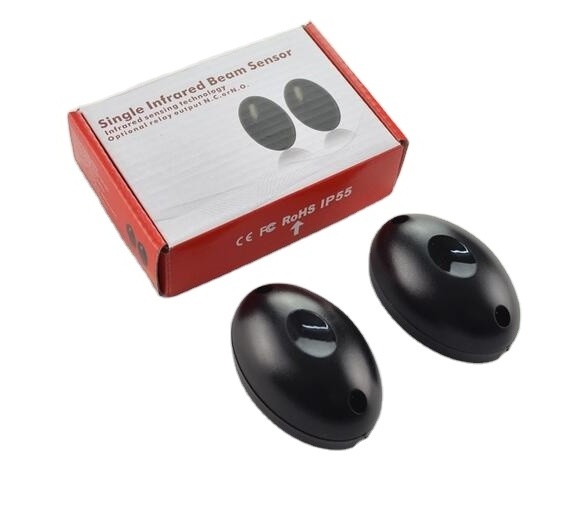

Automatic Photocell Sensor/Gate Photocell/Safety Beams for Automatic Doors Sensor YET607
Photocell sensor for automatic door and gate
1.Indoor 20m, Outdoor 10m
2.12-24 VDC/AC
3.waterproof
4.Anti-sunlight
Infrared Frequancy : 1.92khz
Power supply : 12 to 24 VDC /AC
Wave length :940nm
Input : r*15ma - t*30ma
operating temperature : -20 degrees to 50degrees
Relay output : 1 a max *36 v
Range : range can be reduced to 30% in bad weather conditions : for rain ,dust ,etc
Single beam photocell sensor/single beam detector is used for automatic slide door, coil door , garage door windows etc.
Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam.
Narrow infrared beam (I or II) can avoid interruption by external light.
Even installed at low height(20-40cm from the floor), the detecting distance can also be guaranteed(5-15meters).
The beam produced by MICROCELL provides a self-detecting function for the sliding doors. Once the self-detecting beam is interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detectin g beam is resumed. When the door completely closes, the detecting beam becomes invalid.
11.18KG, 100pcs/carton, carton dimension 46.7*37.1*24.8cm
