Led Screen Sound Crank Up Lift Lighting Tower Lifting Stand Truss Stage Lighting Speaker Hang Truss Lift Tower 8m for Concert

Led Screen Sound Crank Up Lift Lighting Tower Lifting Stand Truss Stage Lighting Speaker Hang Truss Lift Tower 8m for Concert

FOB Reference Price: Get Latest Price

≥2 Sets

US $256

≥100 Sets

US $235

≥1000 Sets

US $215

≥10000 Sets

US $198

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: Crank Stand Truss Lift

Material:: Steel

Max. Height:: 6 M

Min. Height:: 2.06 M

Load capacity:: 250 kg

Colors:: Black

Handle color:: Yellow or silver

Types:: Light duty, medium duty, heavy duty

Keywords:: Crank stand, truss stand, lifting truss stand

Usage:: Outdoor events, wedding, party, concerts

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: SIL

Model Number:: SCS-04

Product name:: Crank Stand Truss Lift

Material:: Steel

Max. Height:: 6 M

Min. Height:: 2.06 M

Load capacity:: 250 kg

Colors:: Black

Handle color:: Yellow or silver

Types:: Light duty, medium duty, heavy duty

Keywords:: Crank stand, truss stand, lifting truss stand

Usage:: Outdoor events, wedding, party, concerts

SIL Led Screen Sound Crank Up Lift Lighting Tower Liftng Stand Truss Stage Lighting Speaker Hang Truss Lift Tower 8M For Concert

SIL Truss Systems:

Established in 2013, SIL has been engaged in manufacturing high standard aluminum truss for 10 years. Throughout the years SIL established itself as one of the leading aluminium trussing manufacturers & wholesalers in China. We have been working on building up a good relationships within our customers network, and now our products can be found all over the world.

SIL is proud to offer great services including designs, static calculations and custom engineering to any field in which our products can be used. Our aluminum trussing, accessories and other products are mostly used in entertainment industry, exhibitions, corporate events, building constructions, architectural designs, advertisement market and sport events market. Our products can be found under many various labels such as stage truss or staging truss, lighting truss, light truss, DJ truss,
exhibition truss etc.

Many applications of the SIL product range include church sets, finish lines, exhibition booths, aluminum stages, trade show exhibit booths, display booths, exhibit display booth, trade show display, DJ shows, Dj trussing booth, truss roofs, portable displays and many others.

Spigot Truss

Ladder/triangle/box

GP Truss

12" x 12"

Bolt Truss

Ladder/triangle/box

PA Tower

290/400/520 mm

LED Screen

290/400/520 mm

LED Ground Support

I-beam/Base/Bar

DJ Truss

DJ show

Exhibit & Display

10'*10'/10'*20'/2 0'*20'

Finish Line Truss

Gantry truss

Pitched Roof

10*8 m/ 12*10 m

Arched Roof

8*6 m/10*6 m

Dome Roof

290/400/520 mm

Crank Stands

Light/medium/heavy duty

Truss Clamps

Made from high tensile, aircraft grade, extruded aluminum

Custom Truss

Customization Service

Description：

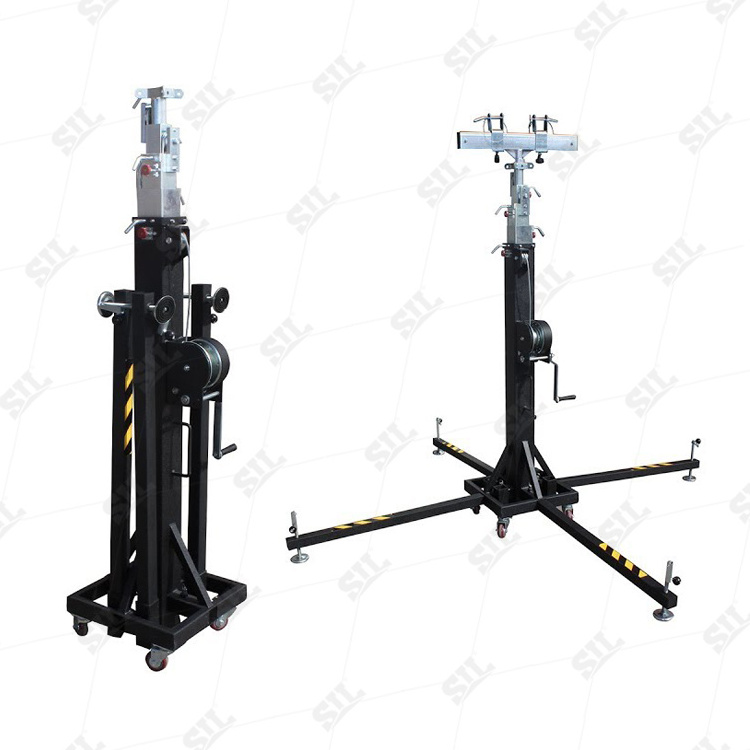

SIL heavy duty crank support system can get the job done with minimal effort. This crank stand system can support up to a 250kg vertical load and reach a maximum height of 6M. With a base diameter of 7ft, this stand is very stable and safe. Our Truss Heavy Duty Crank Stands are an integral part of the Truss SQ System for temporarily mounting lights for small to medium sized DJ lighting at any event. It has Integrated casters, independently adjustable leg braces, and nylon guided leg sliders, which can all be used in conjunction with another same-rated stand, & trusses and T-Adapters (sold separately). Each is
made with Heavy Duty All-metal components; Sturdy, steel / aluminum construction. Eliminate direct lifting and lowering of heavy loads with the SIL Truss Heavy Duty Crank Stand. It folds easily to portable size for transport. It's equipped with a smooth, heavy-duty cranking mechanism. Perfect for a live band and mobile DJ applications, eliminate direct lifting and lowering of heavy loads.

Features:

* Quick, easy-to-use, trouble-free installation and compact storage .
* Adjustable heights from 2.06 M to 6 M .
* Max. loading capacity can reach 250 KG .
* F olds easily to portable size for transport .
* S table and safe with diameter of 7ft .

* Compatible with all current truss, exhibition gantry, portable stage, and temporary roofing systems.

* Application range includes concert stages, larger exhibit displays or any other types of indoor or outdoor events.

Specification:

Product Name	Crank Stands
Brand	SIL
Model No.	SCS-04
Material	Steel
Adjustable Heights	2.06~6M, 1.8M~5.5M, 1.7M~4M
Tube thickness	2.5 mm, 3.0 mm
Self Weight	60 kg
Max. Load	100kg~250kg
Base Size	400400 mm, 460460 mm
Keywords	Crank stands, truss, stands, stage truss, staging truss, lighting truss, light truss, aluminum truss, roofing truss, roof truss system, outdoor convert roof truss
Application	Concert, events, exhibits, weddings, performance, school, fashion show,catwalks, theatre, churches, fashion runways

Tent System

Stage System

Bleacher System

Barrier System

Dance Floor

Cable Protector

About Us

Established in 2013, SIL has been one of the leading manufacturers of aluminum stage, truss and tent. With 10 years’ experience, SIL can offer the perfect solutions for entertainment industry, corporate events, concerts, theaters, churches, schools, exhibitions, indoor & outdoor events, and event architectural designs, fields of building constructions, advertisement market and sport events market.

SIL covers a factory area of 10,000m², located in Panyu District, Guangzhou, China. Our factory introduces numerous advanced extrusion machine, drilling punching, forming and other equipment.

With the 6S management, SIL has established a strict management system, such as strict online production and inspection, final product erection test for each order, to guarantee the product precision and quality.

Our factory is located in Guangzhou, China and covers over an area of 10,000 square meters with a team of 150 staffs, owning top advanced processing equipment from Germany, Japan, Korea and Taiwan. Our products all pass ISO9001, TUV, and CE test report. Also, we have our own QC system, and can do 100% inspection for each product before packing. After inspection, we use good quality non-woven bag inside and reinforced cardboard cartons with clear labeling. What’s more, we have over 1000 square meters' show room and professional photographers to provide you best clear pictures. All of our products can be guaranteed 2 years from the date of purchasing except for products being damaged by man-made.

Q1: Are you a trading company or factory? Do you have a show room?

A1: We've been one of the leading manufacturers of stage, truss and tent for over 10 years in China. Our factory is located in Guangzhou, covering over 10,000 ㎡ area, 150 staff and a 1000 ㎡ show room.

Q1: Can you do OEM/ODM?
A1: Yes, OEM/ODM is available. we have focused on furniture manufacturing for more than 10 years, and no problem to meet your needs.

Q2: What's your minimum quantity order?
A2: 50 pcs for one design. If you can mix few items in one container, we can accept small quantity for first trial.

Q3: Can I get a sample to test the quality?
A3: Yes, we accept the sample delivery before the formal order.

Q4: What about the lead time for mass production?
A4: Generally, after receiving 50% deposit and confirming the drawing, the delivery time will take 18-20 days.

Q5. What's your warranty year?
A5: The warranty for our product is 2 years.
