Density and Viscosity Rapid Tester for Petroleum Products Rapid Measuring Instrument

JSR1310B Density and Viscosity Rapid Tester for Petroleum Products Rapid Measuring Instrument

Density and Viscosity Rapid Measuring Instrument

Density Viscosity Rapid Measuring Instrument is a high-precision instrument for rapid measurement of density and viscosity values of liquids (e.g., gasoline, diesel fuel, etc.), featuring a wide range of application scenarios, accurate measurement results, fast measurement speed, controllable measurement temperature, and automatic sampling and sampling.

The Density Viscosity Rapid Measuring Instrument is equipped with a high-precision liquid density viscosity sensor DLOM2, a constant temperature control system for adjusting the temperature of the measured liquid, one-key sampling and measurement, and storage of measurement results.

Measurement performance

Maximum measurement deviation :

Density: +0.5 kg/m³ (optionally ± [0.2 or 0.0075 x abs (T-25 °C)] kg/m3 for values > 0.2)

Temperature: +0.3°C (±0.15 or ±[0,005 x abs(T-25 °C)] °C for values >0.15)

Repeatability :

Density: +0.25 kg/m³ (±0.1 kg/m³ selectable)

Temperature: +0.1°C (±0.05°C optional)

Temperature conditions

Permissible medium temperature: -40~+60 °C

Permissible ambient temperature: -40~+60 °C

Permissible storage temperature: -40 ~ +60 °C

Application range

Permissible density measurement range:

600 to 1000 kg/m³ (optionally 0 to 1200 kg/m³)

Permissible viscosity range:

0~5 mPa s (optional 0~50 mPa s)

Allowable measuring pressure:

0~20 bar (abs)

Burst pressure 80 bar (abs)

Allowable particle size:

Up to 30 μm

Permissible flow range:

0~10 l/h (water)

Vibration:

Due to the high operating frequency of the microchannel, vibrations (<20 kHz) have no influence on the measuring accuracy.

Inflow and outflow:

Inflow and outflow have no influence on the measuring accuracy.

Main Technical Features:

The instrument adopts a new electronic module, electronic module built-in U-tube oscillation method principle, effectively combined with the Peltier precise temperature control technology, to provide users with accurate, stable and reliable test results, the density meter measurement accuracy, fast determination speed, the amount of samples is small.

The instrument can s tore the results , check and correct the record automatically.

Specifications:

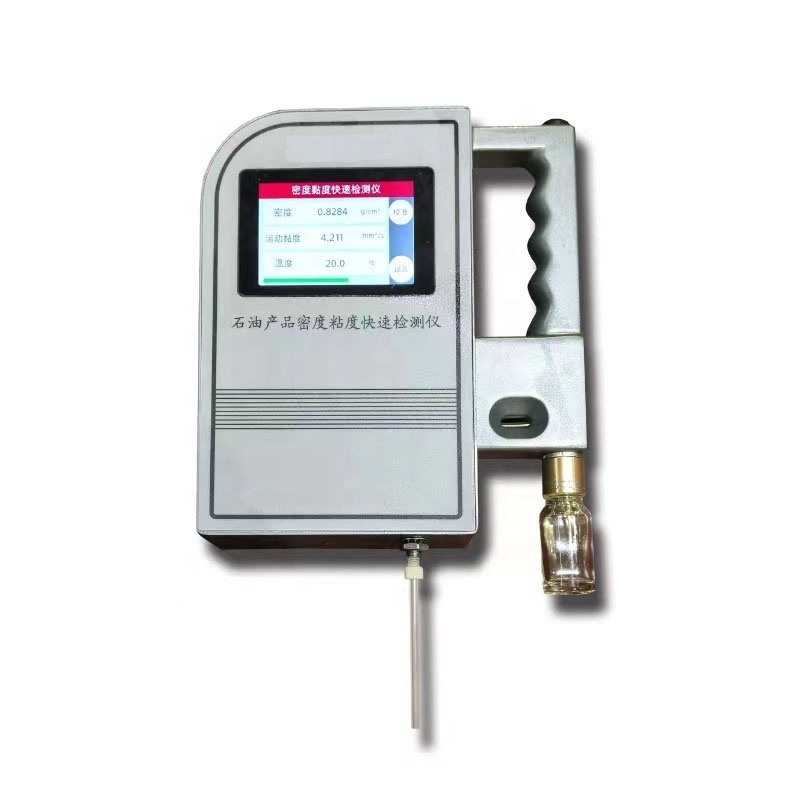

Images of Product:
