Quick Details
-
Brand Name:
-
PRINTYOUNG
-
Voltage:
-
380V
-
Power:
-
6kw
-
Dimension(L*W*H):
-
10500*1300*1300(mm)
-
Weight:
-
3000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Line speed:
-
280m/min
-
Paperboard:
-
200-600gsm
-
Paper feeding:
-
Automatic feeding
-
Binder:
-
Dissovle the type
-
Product name:
-
ZH-1200G Automatic cake box making machine
Quick Details
-
Production Capacity:
-
280m/min
-
Product Type:
-
Folder Gluer Machine
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PRINTYOUNG
-
Voltage:
-
380V
-
Power:
-
6kw
-
Dimension(L*W*H):
-
10500*1300*1300(mm)
-
Weight:
-
3000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Line speed:
-
280m/min
-
Paperboard:
-
200-600gsm
-
Paper feeding:
-
Automatic feeding
-
Binder:
-
Dissovle the type
-
Product name:
-
ZH-1200G Automatic cake box making machine

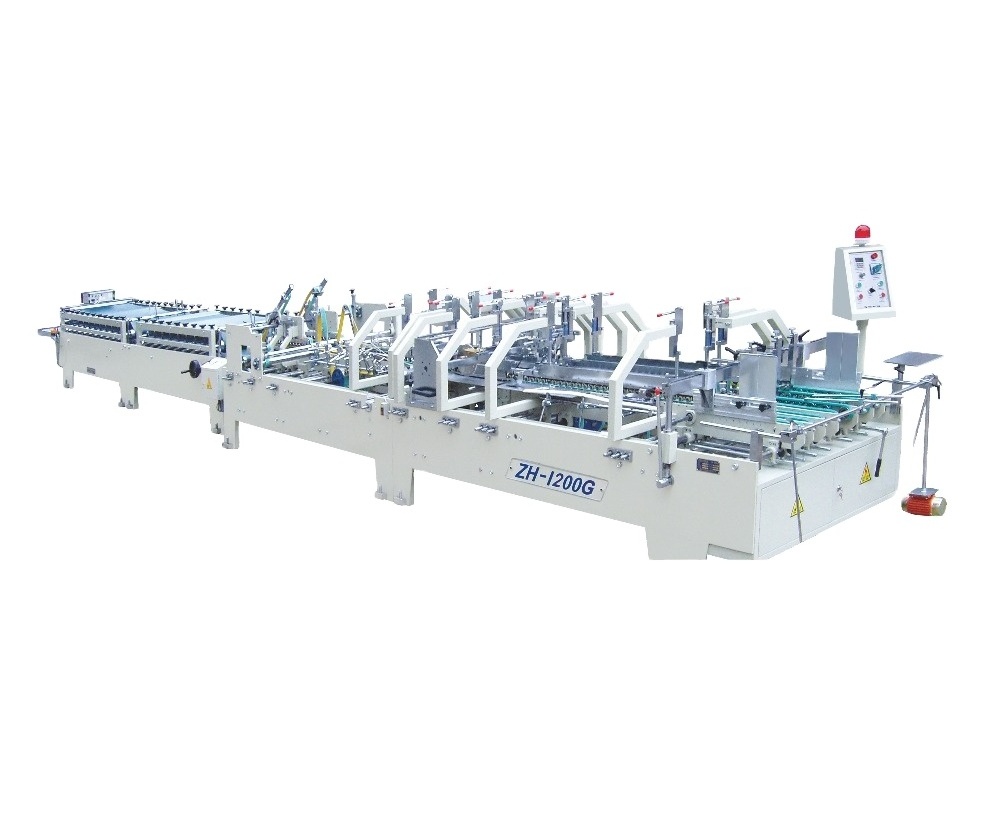

ZH-1200G Automatic cake box making machine
Specifications
2.easy to operate
3.reasonable price and good after-sales service
4.CE certificate
ZH-1200G folder gluer is specially designed for large straight line box, large pre-fold box and large crash lock bottom box. Its feeding width can be up to 1000mm. Larger sized folding section will increase the folding and gluing accuracy, and thus decrease the trumpet mouth box forming on the older generation model. Upper belt of ZH1200G can be adjusted separately, and thus for E corrugated box, the trumpet mouth box forming phenomena will also be decreased. Its motor can be separately independently and makes the collecting effect better. It is ideal equipment for large box packing factories.
FEATURES
|
1. |
Line speed |
280/min, Continuous adjustment. |
|
2. |
Usage paper |
200600g/ Paperboard |
|
3. |
Box forming |
Either side fold, and bottom fold |
|
4. |
Fold method |
1st and 3rd folds 90°,2nd and 4th folds 180° |
|
5. |
Paper feeding |
Automatic feeding |
|
6. |
Binder |
Dissovle the type |
|
7. |
Electric |
6kw 380v |
|
8. |
Weight |
3000kg |
|
9. |
Dimension |
10500×1300×1300(mm) |
MAIN TECHNICAL DATAS (Unit:mm)
|
Box type |
(A Max) |
(A Min) |
(B Max) |
(B Min) |
(C Max) |
(C Min) |
(D Min) |
(D Min) |
|
Straight line box(I) |
1000 |
160 |
700 |
90 |
450 |
100 |
12 |
10 |
|
Pre-fold box(I) |
1000 |
220 |
700 |
90 |
450 |
100 |
17 |
10 |
|
Crash-lock Bottom box(II) |
1000 |
200 |
700 |
90 |
450 |
100 |
70 |
10 |
