Factory Customized hospital radiation protection easily installed x-ray lead lined door

Factory Customized hospital radiation protection easily installed x-ray lead lined door

FOB Reference Price: Get Latest Price

≥1 Pieces

US $620

≥100 Pieces

US $550

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Kunda steel

Model Number:: 1m*2m , 1.5*3 m ect

Quality Certification:: ce/iso

Product name:: Lead door

Function:: protection from X-ray

lead equivalent:: 0.125, 0.175, 0.25, 0.35, 0.50, 1.00,2.0.

Package:: wooden Box

Size:: S/M/L/XL and OEM

Properties:: Medical-Ray Protective Products

Payment Term:: L/C T/T (30%DEPOSIT)

Delivery time:: 7-20days

Advantage:: Customized

Quick Details

Warranty:: 1 Year

After-sale Service:: Free spare parts

Place of Origin:: Shandong, China

Brand Name:: Kunda steel

Model Number:: 1m*2m , 1.5*3 m ect

Quality Certification:: ce/iso

Product name:: Lead door

Function:: protection from X-ray

lead equivalent:: 0.125, 0.175, 0.25, 0.35, 0.50, 1.00,2.0.

Package:: wooden Box

Size:: S/M/L/XL and OEM

Properties:: Medical-Ray Protective Products

Payment Term:: L/C T/T (30%DEPOSIT)

Delivery time:: 7-20days

Advantage:: Customized

Product Description

Product name	Lead Door for hospital
Surface-mount	Surface-mount full stainless steel sheets or ivory anti-static plate spliced with wire-drawing stainless steel sheets,with stainless steel bindings.
Surface-mount		stainless steel frame ,one-off forming at high temperature and high pressure.
Thickness	The thickness of the PB is 2mm to 8mm
Size	1x2 M , 1x3M,1.5x3M ,2x4M etc.
Pb Equivalent	Pb Equivalent
Package	Standard Sea-worthy package , fixed by belt then loaded into fumigated wooden box .
Style	Sliding/vertical hinged door
Application	·Application of a plurality of intelligent and protection units capable of automatic setting of control process.
		·Use of a safety beam to ensure safe access of persons.
		·Use of a safety beam to ensure safe access of persons.
		·X-ray Shielding ,Open with hand/feet sensor switch or keypad.

Detailed Images

Customized hospit lead protection lined door Medical hospital stainless steel lead lined door X ray Lead Door .
The x-ray protective lead door was also named CT room door or radiation protective lead door.
High quality imported seal strips are embedded between the four sides of the door, which meets the sanitary requirements in hospital. The air tightness of this product is detected and meets the Highest Grade (grade 8) of the National Standard.

Single-leaf vertical hinged door

Double-leaf vertical hinged door

Vertical hinged door: (single door, double door.) It is mainly used in places with weak ray intensity and airtightness requirements. It is generally used in personnel access channels. This type of place generally has a small shielding layer and a large The size is small and the air tightness is required. The opening method can generally be manually opened.

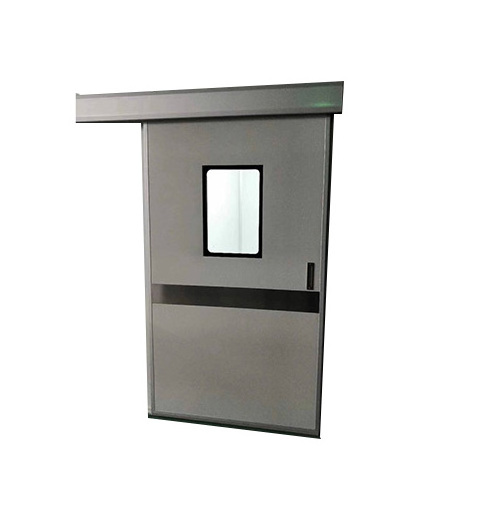

Electric sliding door

Manual sliding door

Sliding lead door: ( manual, electrical ) It is mainly used in places with relatively strong ray intensity and no airtightness requirements. It is generally used in the doors of mixed entrances and exits or special logistics passages. The space outside the passage is large and the thickness of the shielding layer is large. Relatively large, the channel size is large and there is no air tightness requirement, the opening method can generally be opened manually or electrically.

Installation Instructions

Before the installation of the casement door, process the cement foundation according to the size of the door. Push the casement door into the doorway.
There are some technical holes in the doorframe. Make holes in the cement foundation, then fix the door frame to it with the setscrews.

Fill in the doorframe with the leadings for fear that the leakage of the X-rays.
Please be careful to protect the painting surfaces of the door body and the fittings.

The above mentioned is just for your reference.

Workshop

Product packaging

Packing:

1) wooden packing .

The inner size of container is below:
20ft GP: 5.8m(length) x 2.2m(width) x 2.18m(high)
40ft GP: 11.8m(length) x 2.2m(width) x 2.18m(high)
40ft HG: 11.8m(length) x 2.2m(width) x 2.72m(high)

Delivery :
Loading Port: Qingdao, Tianjin or your request.
Shipping time: Normal size7-15 days
