Raw material:
A)Normal Al tube: 0D 8mm.
wall thickness:0.7-1.2mm, and can be customized.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Sanhe
-
Product name:
-
Refrigerator Condenser
-
Material:
-
Iron
-
Regular length:
-
6U-60cm/7U-70cm
-
Bundy tube diameter:
-
1/4 inches
-
the wire diameter:
-
1.1mm
-
U tube diameter:
-
43-45mm
-
U tube wide:
-
43cm
Quick Details
-
Type:
-
Condenser
-
Application:
-
Refrigeration Parts
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sanhe
-
Product name:
-
Refrigerator Condenser
-
Material:
-
Iron
-
Regular length:
-
6U-60cm/7U-70cm
-
Bundy tube diameter:
-
1/4 inches
-
the wire diameter:
-
1.1mm
-
U tube diameter:
-
43-45mm
-
U tube wide:
-
43cm
|
Material
|
Iron
|
|
Product name
|
Wire tube condenser
|
|
Regular length
|
6U-60cm/7U-70cm
|
|
Bundy tube diameter
|
1/4 inches
|
|
The wire diameter
|
1.1mm
|
|
U tube diameter
|
43-45mm
|
|
U tube wide
|
43cm
|
Fin Type Refrigerator Evaporator
Advantages:
A) Adopting aluminium tube and fin,saving cost.
B) Adopting Continuous tube and canted design.
1.Continuous tube decreases the number of joints and reduces the probability of leaking.
2.Canted design saves room, increases the density of aluminium tube and improves efficiency of heat exchange.
3.Canted design improves air turbulence and efficiency of heat exchange.
C)Improve the fin' s surface area and improves the efficiency of heat exchange
|

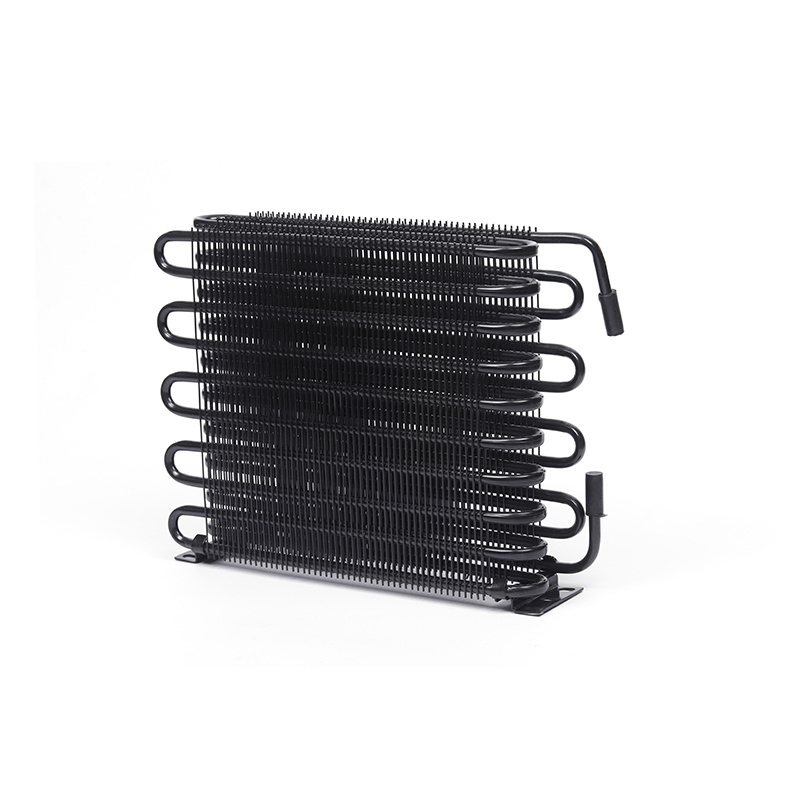

Wire Tube Condenser
|
|
|
|
|||
|
Model
|
L
|
ITEM LXWxH
|
QTY PER CTN/PCS
|
|||
|
WT-1/3HP
|
2
|
310*43*250
|
10
|
|||
|
WT-1/2HP
|
3
|
310*75*250
|
10
|
|||
|
WT-3/4HP
|
4
|
310*108*250
|
10
|
|||
|
Copper Condenser&Fan Motor
|
|
|
|
|
|
|
|
|
||||||||
|
Model
|
Dimension(mm)
|
Cooling surface（m*2)
|
Holes
|
RoWS
|
Holesdistance（mm）
|
IRows distance(mm)
|
Fin thichness(mm)
|
Fin pitch(mm)
|
||||||||
|
SH-1/4HP
|
320*100*230
|
2
|
8
|
2
|
25
|
21.65
|
0.015
|
2.4
|
||||||||
|
SH-1/3HP
|
320*106*230
|
3.2
|
8
|
3
|
25
|
21.65
|
0.015
|
2.1
|
||||||||
|
SH-1/2HP
|
370*100*280
|
4.4
|
10
|
3
|
25
|
21.65
|
0.015
|
2.4
|
||||||||
|
SH-3/4HP
|
400*100*330
|
5.4
|
12
|
3
|
25
|
21.65
|
0.015
|
2.8
|
||||||||
|
SH-1HP
|
440*135*330
|
7
|
12
|
4
|
25
|
21.65
|
0.015
|
2.8
|
||||||||
|
Copper Condenser
|
|
|
|
|
|
|
|
|||||||
|
Model
|
Dimension(mm)
|
Cooling surface（m*2)
|
RoWS
|
Holesdistance（mm）
|
IRows distance(mm)
|
Fin thichness(mm)
|
Fin pitch(mm)
|
|||||||
|
CP-1/4HP
|
320*100*235
|
2
|
2*4
|
25
|
21.65
|
0.015
|
2.4
|
|||||||
|
CP-3/8HP
|
320*100*235
|
3.4
|
3*4
|
25
|
21.65
|
0.015
|
2.1
|
|||||||
|
CP-1/2HP
|
370*100*285
|
4.4
|
3*5
|
25
|
21.65
|
0.015
|
2.4
|
|||||||
|
CP-3/4HP
|
440*100*330
|
5.4
|
3*6
|
25
|
21.65
|
0.015
|
2.8
|
|||||||
|
CP-1HP
|
440*135*330
|
2
|
4*6
|
25
|
21.65
|
0.015
|
2.8
|
|||||||
