Quick Details
-
Weight:
-
30-50KGS
-
Size:
-
110*50*60CM
-
Power:
-
no
-
Weight (KG):
-
30 kg
-
Product name:
-
Stainless Steel Multi Cartridge Filter Housing
-
technology:
-
Polishing,Sandblast
-
connection:
-
flange or others
-
operating pressure:
-
100psi or 150psi
-
Inlet/Outlet size:
-
1inch-3inch
-
Certification:
-
ISO
-
Feature:
-
Eco-friendly
-
Function:
-
Producing Fresh Water
-
Connecting:
-
Spanner or clamp
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
EWATER
-
Material:
-
Stainless steel 304/316L, SS304,SS316L
-
Weight:
-
30-50KGS
-
Size:
-
110*50*60CM
-
Power:
-
no
-
Weight (KG):
-
30 kg
-
Product name:
-
Stainless Steel Multi Cartridge Filter Housing
-
technology:
-
Polishing,Sandblast
-
connection:
-
flange or others
-
operating pressure:
-
100psi or 150psi
-
Inlet/Outlet size:
-
1inch-3inch
-
Certification:
-
ISO
-
Feature:
-
Eco-friendly
-
Function:
-
Producing Fresh Water
-
Connecting:
-
Spanner or clamp

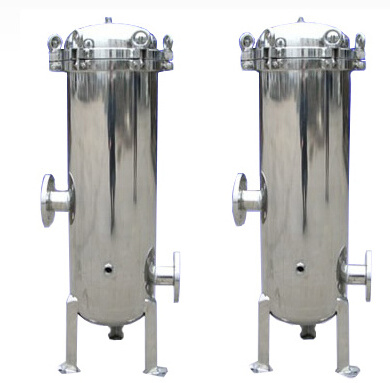

China manufacturer stainless steel Multi cartridge filter housing for water treatment
SS 316 multi cartridge filter housing
-
-
Cartridge filter, also known as security filters, generally set before the pressure vessel to remove the tiny particles whose turbidity above 1 degree, to meet the requirements of the follow-up process of water; sometimes, it is also set at the end of the entire water system to prevent small particles (such as broken resin) into the finished water.
-
We also customized filter housings according to requirement.
Cartridge filter, also known as security filter. The shell is made of high quality stainless steel, filter using molded filter, The liquid went through filter under pressure, residue left on the filter, and the filtrate outflow through the filter can effectively remove impurities in the water, sediment and suspended solids, bacteria. Molded filters are: cloth, screen, filter, sintered filter tube, wound filter, melt-blown filter, micro-porous filter and multi-function filter. Due to different filter, the filter pore size is not the same. Precision filter is between the sand filter (coarse) and a filter between ultra-filtration, filter pore size generally between 0.01-120um.For the same form of filter,it is divided into different models by their dimensions.
Parameter of Multi cartridge filter housing
-
Working pressure: 0.6 / 1.0 / 1.6Mpa Body Material: Stainless steel (SUS304, SUS304L, SUS316, SUS316L). Operatin g temperature: 5 ~ 40 ℃ (exceed 60 ℃ to be informed) Design temperature: 5 ℃ -100 ℃ Replace the pressure: 0.05Mpa-0.07MPA Filter interface: flat compression, plug-in Cylinder and base connection mode: quick opening, flanged Filtration accuracy: 1μm ~ 100μm Cartridge Quantity: 1 core to 180 cores Filter Length: 10 "~ 40" Seal type: O-ring or flat washer Seal Material: PTFE, rubber. Outside treating :matte jet beads, mirror electrolytic polishing. Sealing material: nitrile rubber, silicone, Viton, standard configuration for the silicone seal. Interface Type: GB, HG, DIN, ANSI, JIS standard flanges, dental mouth, clamps and so on. Flange Standard: GB, HG, SH, HGJ, JB, ANSL, JIS and other standards. (User-specified, please indicate the pressure level) Manufacturing, testing standard: GB150 standard, or user-specified criteria.
Packaging&Delivery:
Standard exporting carton package.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity
.
