Adopting laser reflection principle, the thickness of glass can be measured on the glass surface on one side, realizing
non-destructive testing.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
LS201
-
Material:
-
Metal
-
Item Weight:
-
330
-
Accuracy:
-
± 0.1mm
-
Product name:
-
LS201 glass thickness meter
-
Measurement Accuracy:
-
± 0.1mm
-
Measurement Range:
-
Glass thickness≤70mm,air layer thickness≤45mm
-
Weight:
-
330g
-
Battery:
-
4 AAA alkaline dry batteries
-
Display:
-
240 * 160 dot matrix LCD
-
Test Slot Size:
-
2mm * 38mm
-
Dimension:
-
130mm*72mm*33mm (L*W*H)
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Linshang
-
Model Number:
-
LS201
-
Material:
-
Metal
-
Item Weight:
-
330
-
Accuracy:
-
± 0.1mm
-
Product name:
-
LS201 glass thickness meter
-
Measurement Accuracy:
-
± 0.1mm
-
Measurement Range:
-
Glass thickness≤70mm,air layer thickness≤45mm
-
Weight:
-
330g
-
Battery:
-
4 AAA alkaline dry batteries
-
Display:
-
240 * 160 dot matrix LCD
-
Test Slot Size:
-
2mm * 38mm
-
Dimension:
-
130mm*72mm*33mm (L*W*H)
Related Products
Product Description

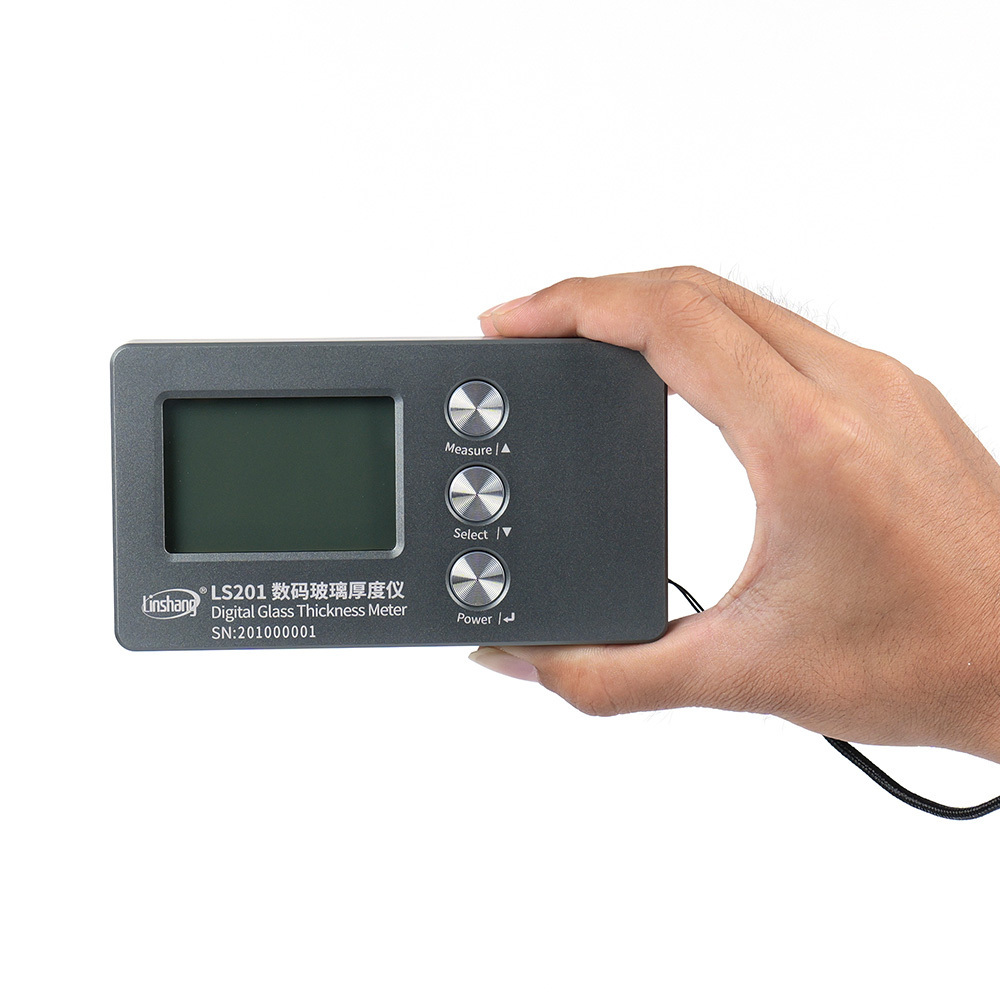

LS201 Digital Hollow Glass Thickness Meter Gauge Double Triple Glazing Measuring Tool Laser Window Glass Thickness Meter
LS201
hollow glass thickness gauge
adopts digital display for measuring glass thickness on one side of the glass surface. The
glass thickness meter
is especially suitable for situations where general measuring tools, such as scales or vernier calipers, are either not feasible or not easy to use, such as measuring the thickness of architectural laminated glass or insulating glass windows. For the measurement of air laminated glass, it can also obtain the thickness of multi-layer glass and the air space in the middle at the same time.
Features：
1. Laser reflection principle for one-sided measurement of glass thickness.
2. High testing accuracy of ±0.1mm and fast testing speed.
3. The glass thickness measuring tool can measure triple glazing, laminated glass and other types of glass.
4. In manual mode, accurate data can be measured by setting parameters according to actual glass type.
5. Direct display of measurement results in automatic mode.
2. High testing accuracy of ±0.1mm and fast testing speed.
3. The glass thickness measuring tool can measure triple glazing, laminated glass and other types of glass.
4. In manual mode, accurate data can be measured by setting parameters according to actual glass type.
5. Direct display of measurement results in automatic mode.
Specifications
|
Parameter
|
Value
|
|
Measurement Accuracy
|
± 0.1mm
|
|
Measurement Range
|
Glass thickness≤70mm，air layer thickness≤45mm
|
|
Weight
|
330g
|
|
Battery
|
4 AAA alkaline dry batteries
|
|
Display
|
240 * 160 dot matrix LCD
|
|
Test Slot Size
|
2mm * 38mm
|
|
Dimension
|
130mm×72mm×33mm (L*W*H)
|
Structure & Packing
|
No.
|
Description
|
Quantity
|
Unit
|
|
1
|
LS201 Glass Thickness Meter
|
1
|
Set
|
|
2
|
User Manual
|
1
|
Pcs
|
|
3
|
Certificate / warranty card
|
1
|
Pcs
|
|
4
|
Wrist Lanylard
|
1
|
Pcs
|
|
5
|
Screwdriver
|
1
|
Pcs
|
|
6
|
Calibration report
|
1
|
Pcs
|
One-side measurement of the glass thickness
Easy to operate
Pressing the measurement button immediately displays the glass and air space thickness with digital display for easy reading.
Applicable to a wide range of materials
It can measure double glazing, triple glazing, laminated glass, insulating glass and other types of glass.
Manual measurement mode
In manual mode, accurate data can be measured by setting parameters according to actual glass type.
Auto measurement mode
Direct display of measurement results in automatic mode.
High precision
Its high precision ensures it can pass testing by authoritative metrological institutes.
Transaction & Client
FAQ
LS200 is a scale display. When testing, you need to press and hold the button to read and calculate the thickness of the glass and air layer. LS201 is digital display. It is placed on one side of the measured material. The thickness of the glass and air layer will be immediately displayed on the display interface after placing the instrument on the measured material.
LS200 test accuracy is ± 0.5mm, LS201 test accuracy is ± 0.1mm, LS201 test accuracy is higher.
LS200 can only measure insulating glass. In addition to insulating glass, LS201 can also test laminated glass for a wider range of applications.
2. Can the LS201 glass thickness gauge measure the thickness of the laminated layer?
LS201 glass thickness gauge can test the thickness of laminated glass, but cannot measure the thickness of the middle laminated layer. The instrument calculates the thickness of the laminated layer within a certain glass thickness.
3. The maximum thickness that LS201 glass thickness meter can measure
If measuring single or multiple layers of glass without interlayer, the maximum glass thickness that the LS201 glass thickness gauge can measure is 70mm.
If measuring double glzaing, the measurable insulating glass needs to meet the following requirements: Sum of 2 layers of glass thickness + air layer thickness * 1.5 <70mm.
If measuring triple glazing, the measurable insulating glass needs to meet the following requirements: Total thickness of 3 layers of glass + total thickness of 2 layers of air * 1.5 <70mm.
4. Do you offer OEM and ODM service?
Yes. We can supply OEM and make customized design for any specific application.
5. Who are we?
We are based in Guangdong, China, start from 2008,sell to Domestic Market(60.00%), Eastern Europe(6.00%), Eastern Asia(6.00%), South Asia(5.00%), Mid East(4.00%), Southern Europe(3.00%), North America(3.00%), Western Europe(3.00%), South America(2.00%), Northern Europe(2.00%), Central America(2.00%), Southeast Asia(2.00%), Africa(1.00%), Oceania(1.00%). There are total about 51-100 people in our office.
6. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
7. What can you buy from us?
Colorimeter,Gloss meter,Coating thickness meter,window tint meter,UV meter, Leeb hardness tester, Ultrasonic thickness gauge.
8. Why should you buy from us not from other suppliers?
Shenzhen Linshang Technology Co., Ltd. was established on June 16, 2008. The company adheres to independent design, research and development, production and sales of various measuring instruments.
9. What services can we provide?
Accepted Delivery Terms: EXW,DAP；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Western Union;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, French, Russian, Korean, Italian.
10. Does the instrument have a warranty?
Guarantee period is 12 months, after the warranty, we also provide life-long paid or service.
Yes, you are welcome to order samples to experience our excellent quality and service.
12. Can you offer quality certification?
Yes, we can offer quality certification issued by our lab free of charge, or issued by third-party international inspection
Organizations with extra charge, please contact us for confirmation.
13. Do you have after-sales service?
Yes, our instrument have professional After-sales Dept. lf you have any technical problem or question with our goods welcome to contact us.
