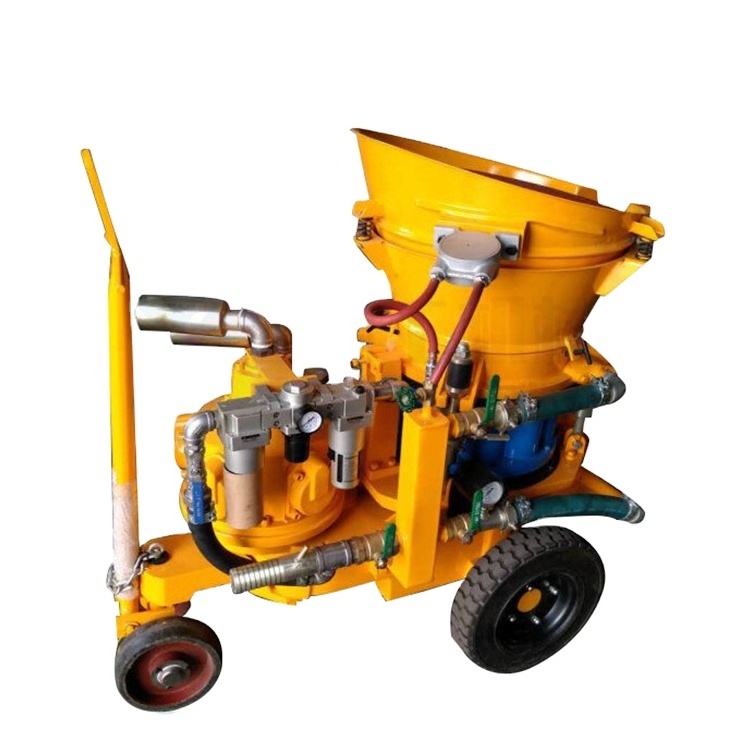

Easy adjusted swimming pools concrete spray shotcrete machine in variable outputs

Easy adjusted swimming pools concrete spray shotcrete machine in variable outputs

FOB Reference Price: Get Latest Price

≥1 Sets

US $1800

≥2 Sets

US $1750

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: concrete spraying machine

Place of Origin:: Henan, China

Brand Name:: YUGONG

Dimension(L*W*H):: 1400*750*1300mm

Weight:: 850kg

Power:: 380V

Name:: mix used concrete shotcrete machine

Usage:: building wall spraying slope tunnel

Type:: wet & dry spraying

Max. Convey Distance:: 20m

Motor Power:: 7.5kw

Accelerator pump:: Air motor

bearing of shafts:: 310,311,216

Vibration motor power:: 0.37kw

Operating Pressure:: 0.4-0.6MPa

Aggregate. Size:: 15mm

After Warranty Service:: Video technical support, Online support

Local Service Location:: None

After-sales Service Provided:: Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support

Certification:: ISO CE

Quick Details

Max. vertical conveying distance:: 15M

Max. horizontal conveying distance:: 50M

Hopper Capacity:: 5l

Application:: concrete spraying machine

Place of Origin:: Henan, China

Brand Name:: YUGONG

Dimension(L*W*H):: 1400*750*1300mm

Weight:: 850kg

Power:: 380V

Name:: mix used concrete shotcrete machine

Usage:: building wall spraying slope tunnel

Type:: wet & dry spraying

Max. Convey Distance:: 20m

Motor Power:: 7.5kw

Accelerator pump:: Air motor

bearing of shafts:: 310,311,216

Vibration motor power:: 0.37kw

Operating Pressure:: 0.4-0.6MPa

Aggregate. Size:: 15mm

After Warranty Service:: Video technical support, Online support

Local Service Location:: None

After-sales Service Provided:: Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support

Certification:: ISO CE

Easy adjusted swimming pools concrete spray shotcrete machine in variable outputs

Shotcrete machine is widely used in building wall spraying slope, slope protection, tunnel construction and other places without harmful gas and need concrete spraying. It is also called concrete spraying machine mainly used for slope protection anchorage, foundation pit reinforcement, tunnel spraying anchorage.

Product Description

It’s widely used in concrete spraying in tunnels, culvert, underground construction, slope protection projects and mine roadway construction. We have engineering oriented shotcrete machine and mine oriented shotcrete machine , wet or dry shotcrete machine .

Wet shotcrete machine has a set of pumping system (accelerator conveying system) more than dry shotcrete machine, with a small motor of 0.75 kw. It is suitable for tunnel, high-speed railway and highway. Wet shotcrete machine can spray dry material or wet material. Dry shotcrete machine can only spray dry material.

Mine shotcrete machine uses concrete pump to convey concrete through pipeline to the nozzle of manipulator, and uses compressed air with accelerator to spray concrete to the wall of shotcrete roadway. It is widely used in various working environments, such as tunnels, culverts, subway, hydropower projects, underground projects, slope protection and high methane mine roadways.

Technical Parameters

Dry Shotcrete Machine( Engineering oriented shotcrete machine )
Model	YG-D5	YG-D6	YG-D7
Product capacity	3m³ /h	6m³ /h	7m³ /h
Maximum delivery distance	200m	200m	200m
Practical material water-cement ratio	<0.4	<0.4	<0.4
Biggest bone grain size of fire	20mm	20mm	20mm
Rotor block	350mm	440mm	480mm
Working pressure	0.4-0.6mpa	0.4-0.6mpa	0.4-0.6mpa
Blast consumption	3-4m³ /h	6-8m³ /h	7-8m³ /h
Motor power	3kw	5.5kw	7.5kw
Dimension	1040550950	13007051300	16007501200
Weight	260kg	600kg	700kg

Wet Shotcrete Machine ( Engineering oriented shotcrete machine )
Model	YG-W5	YG-W7
Product capacity	5m³ /h	7m³ /h
Lift	Horizontal 30m, vertical 20m	Horizontal 30m, vertical 20m
Maximum particle diameter	15mm	15mm
Motor power	5.5kw	7.5kw
Weight	700kg	800kg
Dimension	12807001280mm	20008001300mm

More parameters about the mine use shotcrete machine welcome to contact us.

Structures

Features

1. Through the rotor type non-bonded material chamber, the discharge is smooth, efficient and time-saving.
2. Four-point elastic compensation compaction, good sealing effect, less dust near the machine, long service life of vulnerable parts.
3. Using low pressure and high speed swirling airflow to convey materials to overcome the sticking and blockage of pipes and pulses in conveying materials.
The material flow is uniform, continuous and stable.
4. New sprinkler and elbow device can improve spraying effect with less springback and high spraying layer quality.
5. The chassis of the machine can be assembled into tyre type, skid type and wheel type with various gauges.

Packaging & Shipping

1. Wrapped by protective film;
2. Packed by standard import & export wooden cases or carton boxes;
3. Customized according to your requirement.
Delivery Time
Within one week
Shipping
Port : Tianjin, Qingdao, Shanghai,Guangzhou or other ports according to your requirements.
Sea freight : FOB/CIF/DDU quotation are all available.
Transport method : By logistics; by automobile; by train; by shipping; by air etc.
