Quick Details
-
Ink Type:
-
Environmental Protection Ink
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KONGKIM
-
Voltage:
-
AC 110V~220V 50/60HZ
-
Dimensions(L*W*H):
-
4800mm x 1100mm x 1700mm
-
Weight:
-
850 KG
-
Machine Brand:
-
KONGKIM RT-3200 series
-
Print Head:
-
i3200-E1 / DX5 Print Head
-
Head Number:
-
1~4 pcs Heads optional
-
Print Resolution:
-
3.5pl / 3200dpi
-
Printing Speed:
-
40sqm/h (double i3200 heads)
-
Ink Colors:
-
Cyan;Magenta;Yellow;Black
-
Application:
-
Vinyl sticker , flex banner , tarpaulin , pvc ,leather , etc
-
Operating System:
-
Windows 7/ 8 / 10
-
RIP Software:
-
MainTop RIP
-
Data Interface:
-
USB2.0/3.0 (480m/s)
Quick Details
-
Print Dimension:
-
Maximum 3300mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
Environmental Protection Ink
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KONGKIM
-
Voltage:
-
AC 110V~220V 50/60HZ
-
Dimensions(L*W*H):
-
4800mm x 1100mm x 1700mm
-
Weight:
-
850 KG
-
Machine Brand:
-
KONGKIM RT-3200 series
-
Print Head:
-
i3200-E1 / DX5 Print Head
-
Head Number:
-
1~4 pcs Heads optional
-
Print Resolution:
-
3.5pl / 3200dpi
-
Printing Speed:
-
40sqm/h (double i3200 heads)
-
Ink Colors:
-
Cyan;Magenta;Yellow;Black
-
Application:
-
Vinyl sticker , flex banner , tarpaulin , pvc ,leather , etc
-
Operating System:
-
Windows 7/ 8 / 10
-
RIP Software:
-
MainTop RIP
-
Data Interface:
-
USB2.0/3.0 (480m/s)

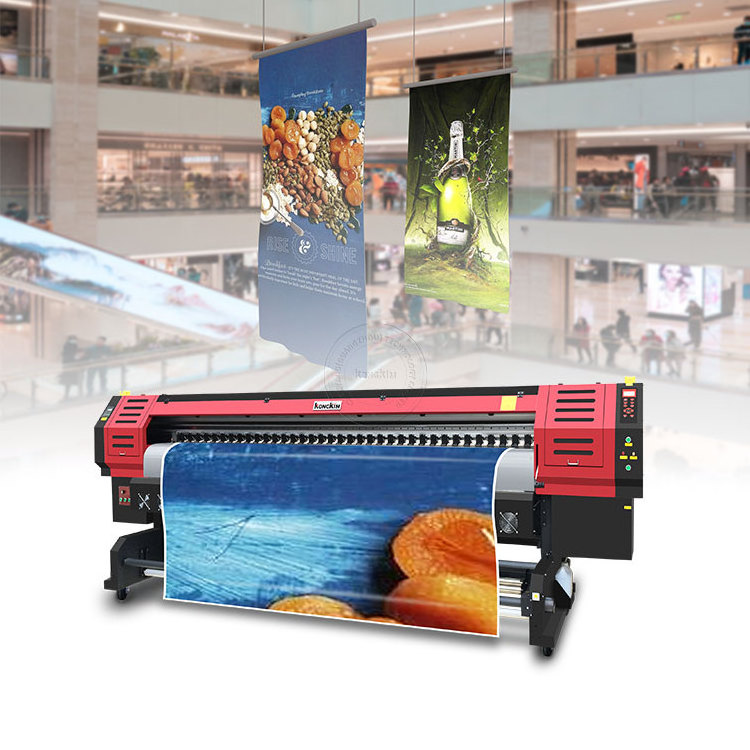

10ft eco solvent printer tarpaulin car sticker printing machine available i3200 heads printing
|
Technical Parameter
|
|
|
|
|
||||
|
Model
|
|
RT-3202 / RT-3204
|
|
|
||||
|
Print Head
|
|
E-PSON DX5 / i3200-E1 print head are optional
|
|
|
||||
|
Max Print Width
|
|
Maximum 3300mm
|
|
|
||||
|
Print Speed
(sqm /h)
|
Print Head
|
DX5 * 2pcs
|
i3200 * 2pcs
|
i3200 * 4pcs
|
||||
|
|
Production mode
|
4 pass 30.6
|
4 pass 37
|
4 pass 74
|
||||
|
|
Standar mode
|
6 pass 24
|
6 pass 25.5
|
6 pass 50
|
||||
|
|
Quality mode
|
8 pass 15.4
|
8 pass 18.5
|
8 pass 36
|
||||
|
Ink
|
Type
|
Eco-Solvent ink / Sublimation ink
|
|
|
||||
|
|
Color
|
Cayn , Magenta , Yellow , Black
|
|
|
||||
|
Media Type
|
|
Eco-Sovlent
: Viny sticker ,fex banner,tarpauli ,wall paper ,Cavnas ...
Sublimation
: Sublimation paper , T-shirt , cloths,tower,home textile...
|
|
|
||||
|
Ink Supply
|
|
Auto Ink Supply system
|
|
|
||||
|
Maintenance Of The Printhead
|
|
One button cleaning printhead by solvent
|
|
|
||||
|
Rip Software
|
|
MainTop ; PhotoPRINT
|
|
|
||||
|
Data Interface
|
|
USB 2.0 / USB 3.0
|
|
|
||||
|
Assistant Option
|
Feeding&Take up
|
Auto Feeding And Take Up System
|
|
|
||||
|
|
Heating System
|
Stage heating system include back, front heating
|
|
|
||||
|
|
Carriage Height
|
1.5mm~5 mm Distance to the printing platform , adjustable
|
|
|
||||
|
|
Othere Functions
|
Light for carriage position
|
|
|
||||
|
Printer Info
|
Operating voltage
|
AC 220V 50Hz/60Hz ( 110V Optional )
|
|
|
||||
|
|
Power
|
Print system:0.5kw ; Front 0.5kw ; Rear 0.5kw ; Back 1kw
|
|
|
||||
|
|
Working Enviroment
|
Temperature: 18 - 28 Humi dity:35% - 65%
|
|
|
||||
|
|
Printer Dimension
|
4567mm(L)x970mm(W) x1500mm(H) 800kg (RT-3202)
|
|
|
||||
|
|
Shipping Dimension
|
4800mm(L) x1100mm(w) ×1700mm(H) 850kg (RT-3202)
|
|
|
||||
10ft eco solvent printer tarpaulin car sticker printing machine available i3200 heads printing
About Service : Product with good quality is very important,but after sales sevice also very important:
1 . We have professional engineers who have more than 6years, is very patient to support you if you have any questions;
2
.
We can support you 24hous for online training and guide you step by step;
3
.
If you need to support you in your local shop,our engineers have passport,we can suppor you for overseas training.
4.
We have showroom in Guangzhou, welcome to learn more here,we can discuss and guide face by face.
Welecome to contact Andrea at anytime : 0086-18011715128 ( WhatsApp & WeChat )
