Hot sale electrical silver gold melting induction furnace 1kg 2kg 3kg 5kg 10kg for sale price list
What is the type of the gold melting furnace?
HF induction melting furnace
MF induction melting furnace
What is the description of the gold melting furnace?
|

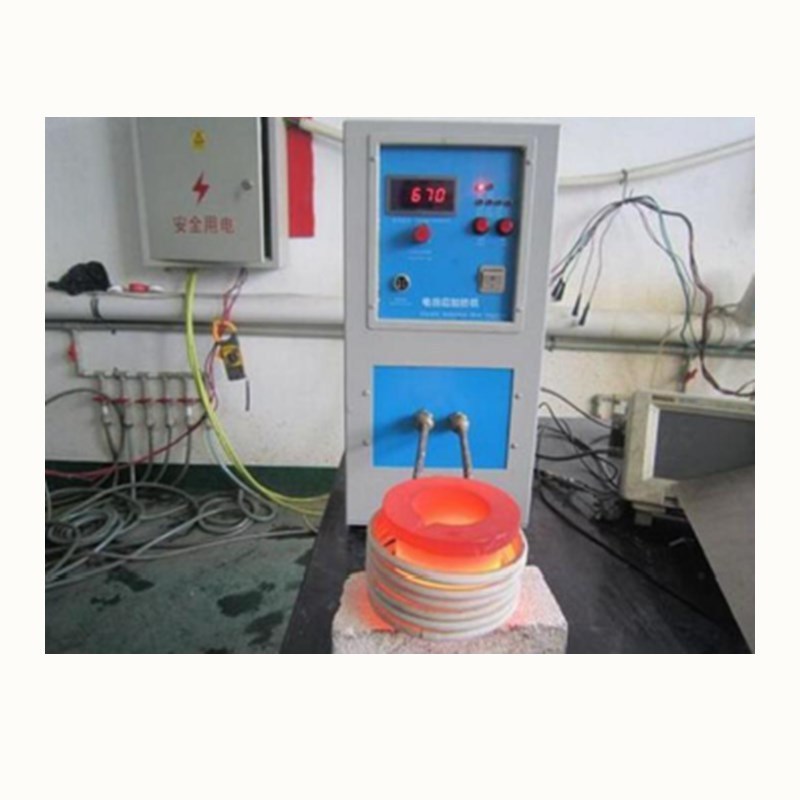

High frequency induction furnace(use induction coil load crucible to melt) |
|||||
|
Model No. |
Input power |
Max input current |
Working voltage |
Frequency |
Net weight |
|
YJ-HF15 |
15KW |
35A |
220V/50HZ |
28-40KHZ |
26kg |
|
YJ-HF30 |
30KW |
52A |
380V/50HZ |
25-35KHZ |
45kg |
|
One set of HF melting furnace, we will send the agent one induction coil, one set of crucible(high graphite crucible with ceramic coat), one crucible tang, and one set of insulation glove. |
|||||
|
Medium frequency induction furnace(with tilting system, crucible in the furnace body) |
|||||
|
Model No. |
Input power |
Max input current |
Working voltage |
Frequency |
Net weight(3 parts) |
|
YJ-MF15 |
15KW |
22A |
380V/50HZ |
1-20KHZ |
24+30+98kg |
|
YJ-MF25 |
25KW |
45A |
380V/50HZ |
1-20KHZ |
24+30+103kg |
|
YJ-MF35 |
35KW |
70A |
380V/50HZ |
1-20KHZ |
34+40+104kg |
|
YJ-MF45 |
45KW |
95A |
380V/50HZ |
1-20KHZ |
36+50+106kg |
|
YJ-MF70 |
70KW |
130A |
380V/50HZ |
1-20KHZ |
51+60+110kg |
|
YJ-MF90 |
90KW |
170A |
380V/50HZ |
1-20KHZ |
57+70+150kg |
|
YJ-MF110 |
110KW |
200A |
380V/50HZ |
1-20KHZ |
89+70+230kg |
|
YJ-MF160 |
160KW |
290A |
380V/50HZ |
1-20KHZ |
100+85+350kg |
|
One set of MF melting furnace will have one crucible build into the furnace body, we will send extra crucible to agent for free. |
|||||
What is the capacity of the gold melting furnace?
|
Model |
Steel,Iron (kg) |
Gold, Silver, Copper(kg) |
Aluminum(kg) |
|
YJ-HF15 |
0.5 |
1-5 |
0.5 |
|
YJ-HF30 |
1 |
2-10 |
1 |
|
YJ-MF15 |
3 |
10 |
3 |
|
YJ-MF25 |
5 |
20 |
5 |
|
YJ-MF35 |
10 |
30 |
10 |
|
YJ-MF45 |
18 |
50 |
18 |
|
YJ-MF70 |
25 |
100 |
25 |
|
YJ-MF90 |
40 |
120 |
40 |
|
YJ-MF110 |
50 |
150 |
50 |
|
YJ-MF160 |
100 |
250 |
100 |
What is optinal parts?
Crucible
What is the features of the gold melting furnace?
1.Induction heating melting furnace use crucible high temperature to heat metal.then can melt, refine, casting, etc production.
2.Can melt platinum, rhodium and palladium, gold,silver, copper, steel, aluminium, Activated carbon,gold dust sands, electrolysis mud, gold and silver powder, tin ash tin slag etc.
3.Induction heating melting furnace can melt weight from 0.001KG--500KG per time. melting time from 5-40 minutes. max temperature will be 1500C--2000C.
4.Induction heating melting furnace have fixed type,push out type,auto pouring type,furnace up down moving type
What is advantage of the gold melting furnace?
1.IGBT(INFINEON) technology, high conversion efficiency;
2.Energy saving 15%-30%, compared to SCR/KGPS technology much more efficient gas
fired and coal fired method 100% start-up success rate; power factor>95%
3.Perfect and complete protection functions, increasing machine's reliability & stability.
4.No special foundations required, Low operating cost, Easy operation.
5.Modular design, ease of maintaining and repairing.
