Quick Details
-
Dimension(Long * Breadth * High):
-
6075*2350*3520 mm
-
Machine Weight:
-
8200 kg
-
Bucket capacity:
-
1.0, 1 cbm
-
Outline dimensions(L*W*H):
-
7440*2350*3450 mm
-
Total weight:
-
7600 kg
-
Max. travel speed:
-
40 km/h
-
Rated power:
-
82 kw
-
Rated load:
-
2500 kg
Quick Details
-
Engine Brand:
-
Top brand
-
Power:
-
76KW
-
Place of Origin:
-
China
-
Dimension(Long * Breadth * High):
-
6075*2350*3520 mm
-
Machine Weight:
-
8200 kg
-
Bucket capacity:
-
1.0, 1 cbm
-
Outline dimensions(L*W*H):
-
7440*2350*3450 mm
-
Total weight:
-
7600 kg
-
Max. travel speed:
-
40 km/h
-
Rated power:
-
82 kw
-
Rated load:
-
2500 kg
Product Brief Introduction

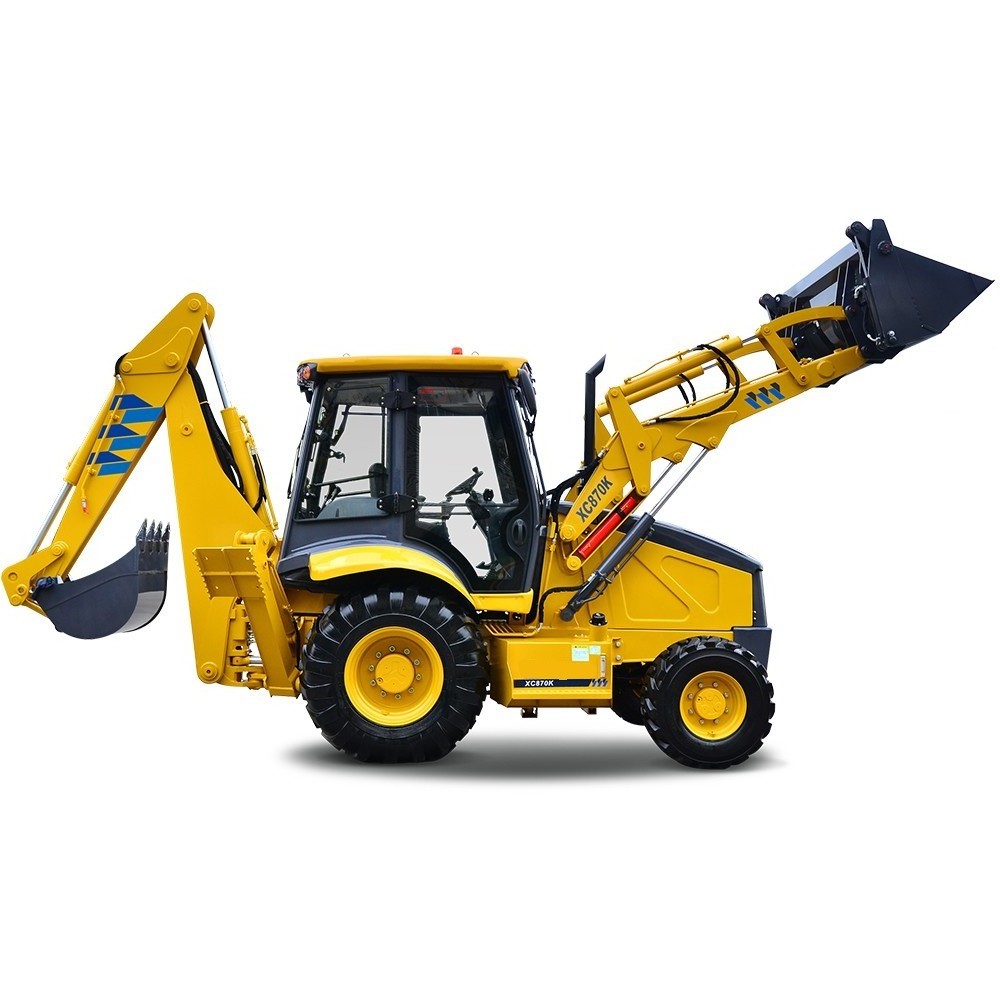

XC870K 2.5 ton 4x4 skid steer backhoe excavator loader
XC870K 2.5 ton 4x4 skid steer backhoe excavator loader
2,The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3,The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4,The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.
Environmental-friendliness
The double pump confluence system with unloading function can automatically or manually switch over the individual pump based on the working condition and unload the high pressure by auxiliary pump, featuring high intelligence and energy-saving.
It's independently developed load-sensing system features smooth digging and loading combination motions, low motion changeover impact, and high efficiency and energy-saving.
During the digging and loading combination operations, the engine power to the drive system can be easily cut off so that all power is supplied to the hydraulic system to improve the digging and loading efficiency.
The machine automatically switches to two-wheel drive mode while traveling in gear IV to eliminate the parasitic power loss.
Product Paramenters
|
Description
|
Unit
|
|
Parameter value
|
|
|
Chassis type
|
|
|
integrated
|
|
|
Drive style
|
|
|
4 drive/2 drive
|
|
|
Digging working device
|
|
|
middle
|
|
|
Outline dimensions(L×W×H)
|
mm
|
|
7440×2350×3450
|
|
|
Total weight
|
kg
|
|
7600
|
|
|
Max. travel speed
|
km/h
|
|
≥40
|
|
|
Wheelbase
|
mm
|
|
2180
|
|
|
Engine
|
Power
|
kW
|
82
|
|
|
|
Supplier
|
|
tier 3 tier 2 tier 3 tier 2
|
|
|
Loading device
|
Bucket capacity
|
m³
|
1
|
|
|
|
Rated load
|
kg
|
2500
|
|
|
|
Max. breakout
|
kN
|
66
|
|
|
|
Max. discharge height
|
mm
|
2770
|
|
|
|
Max. discharge distance
|
mm
|
755
|
|
|
|
System pressure
|
Mpa
|
24
|
|
|
Digging device
|
Bucket capacity
|
m³
|
0.3
|
|
|
|
Max. digging radius
|
mm
|
5460
|
|
|
|
Max. digging depth
|
mm
|
4425
|
|
|
|
Max. digging force
|
kN
|
63
|
|
|
|
System pressure
|
Mpa
|
24
|
|
