Wood Pallet Nailing Machine Automatic Pallet Production Line

Wood Pallet Nailing Machine Automatic Pallet Production Line

FOB Reference Price: Get Latest Price

≥1 Sets

US $12000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 1400cm*250cm

Weight:: 1000 KG

Place of Origin:: Henan,chine

Power:: 7.5KW

Key Machines:: Wood Pallet

Product Type:: Wood Pallet Nailing Machine

Name:: Wood Pallet Nailing Machine Automatic Pallet Production Line

Keywords:: Automatic Pallet Production Line

Package:: Wooden Box

Voltage:: 380v,50hz, 3Phase

Capacity:: 60pcs/Hour

Color:: Customers' Demand

Machine Type:: Wood Sanding Machine

Video outgoing-inspection:: Provided

Machinery Test Report:: Provided

Marketing Type:: New Product 2020

Quick Details

Machinery Capacity:: 60pcs / hour

Brand Name:: LEABON

Year:: 2022

Dimension(L*W*H):: 1400cm*250cm

Weight:: 1000 KG

Place of Origin:: Henan,chine

Power:: 7.5KW

Key Machines:: Wood Pallet

Product Type:: Wood Pallet Nailing Machine

Name:: Wood Pallet Nailing Machine Automatic Pallet Production Line

Keywords:: Automatic Pallet Production Line

Package:: Wooden Box

Voltage:: 380v,50hz, 3Phase

Capacity:: 60pcs/Hour

Color:: Customers' Demand

Machine Type:: Wood Sanding Machine

Video outgoing-inspection:: Provided

Machinery Test Report:: Provided

Marketing Type:: New Product 2020

Wood Pallet Nailing Machine Automatic Pallet Production Line

Products Description

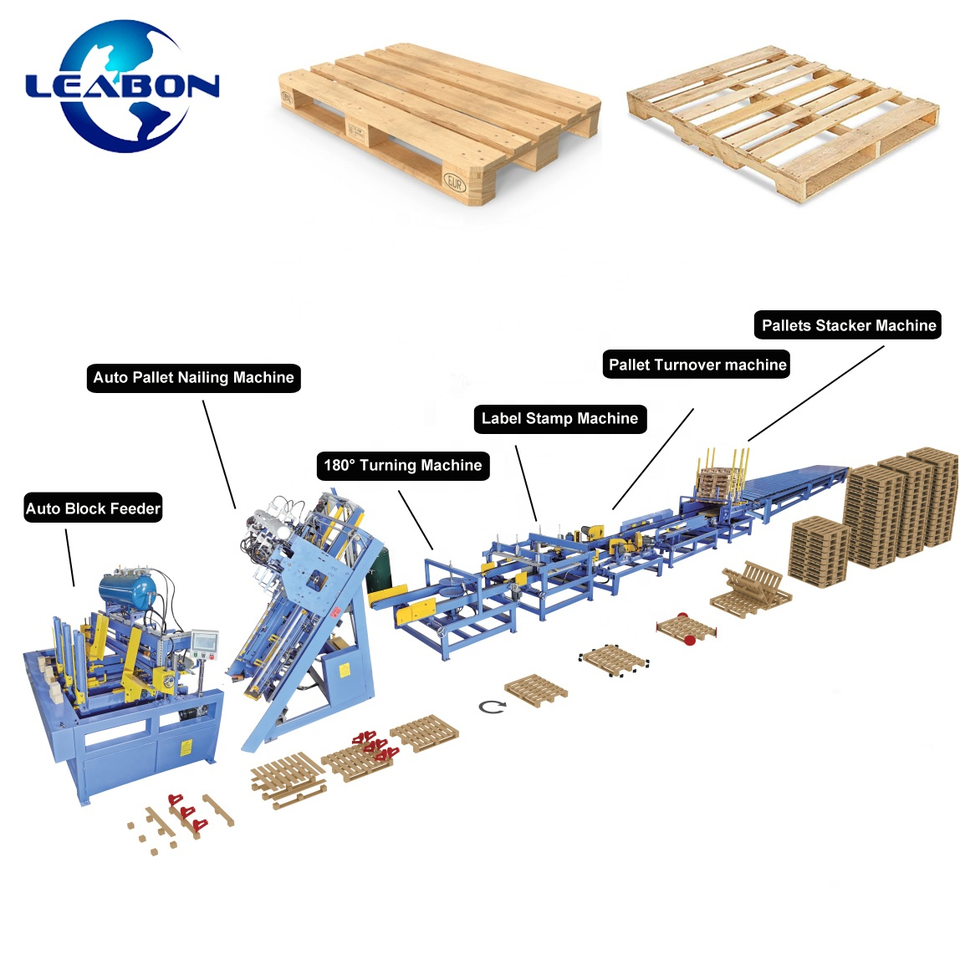

Introduction -Mainly used to nail the wood bars and block feet together,worker just wood bars on the support frame,then it can nail it automatic,then it can lift the finished wood pallet to stack machine,stack machine can stack the wood pallet layer by layer,of course you can choose wood pallet nailing machine with stack,you can aslo buy the wood pallet nailing machine.

-The use of double molds, double-sided nailing, to achieve a pallet in the nailing process, another pallet placed materials, in this way, to achieve the overlapping use of time between feeding and nailing To achieve the purpose of improving efficiency.

Feature of pallets line 1. Applicable tray type, European and American tray 2. Maximum size: 1300x1300x150mm (length x width x height) 3. Production efficiency: up to 60 per hour 4. Number of operators: 1 5. Use nailing tools: automatic air nail gun 6. Power consumption: less than 7.5kw 7. Position and type of nailing: each position can hit 2-4 nails 8. Mould: each tray with different size and structure requires two moulds

Specification

Operation worker	1person	Pallet size	Cover area
Capacity	60pcs/Hour	feeding materials mode	Manual
Nailing mode	automatic	Stacking mode	Fully automatic (Cross stackable）
Nail gun	CN80(max nail of 2.8x80mm）	Output mode	Fully automatic
Power	380v，50hz, 3Phase	Power	7.5kw
Nails	Large coil nail（3000pcs/coil）	Cover area	2.5x14m (Width x Length)
