Quick Details
-
Type:
-
a-Si TFT-LCD, LCM
-
Diagonal Size:
-
15.6 inch
-
Pixel Format:
-
3840(RGB)*2160 [UHD]
-
Active Area:
-
345.6(H)*194.4(V) mm
-
Outline Dim:
-
351.9(H)*217.2(V) *3.2(D) mm
-
Luminance:
-
300 cd/m2 (Typ.)
-
Contrast Ratio:
-
1300:1 (Typ.) (TM)
-
View Direction:
-
Symmetry
-
Viewing Angle:
-
85/85/85/85 (Typ.)(CR≥10)
Quick Details
-
Brand Name:
-
Wisecoco
-
Place of Origin:
-
Guangdong, China
-
Model:
-
15.6 inch LCD display
-
Type:
-
a-Si TFT-LCD, LCM
-
Diagonal Size:
-
15.6 inch
-
Pixel Format:
-
3840(RGB)*2160 [UHD]
-
Active Area:
-
345.6(H)*194.4(V) mm
-
Outline Dim:
-
351.9(H)*217.2(V) *3.2(D) mm
-
Luminance:
-
300 cd/m2 (Typ.)
-
Contrast Ratio:
-
1300:1 (Typ.) (TM)
-
View Direction:
-
Symmetry
-
Viewing Angle:
-
85/85/85/85 (Typ.)(CR≥10)
Related LCD Panel Recommendations
Product Description

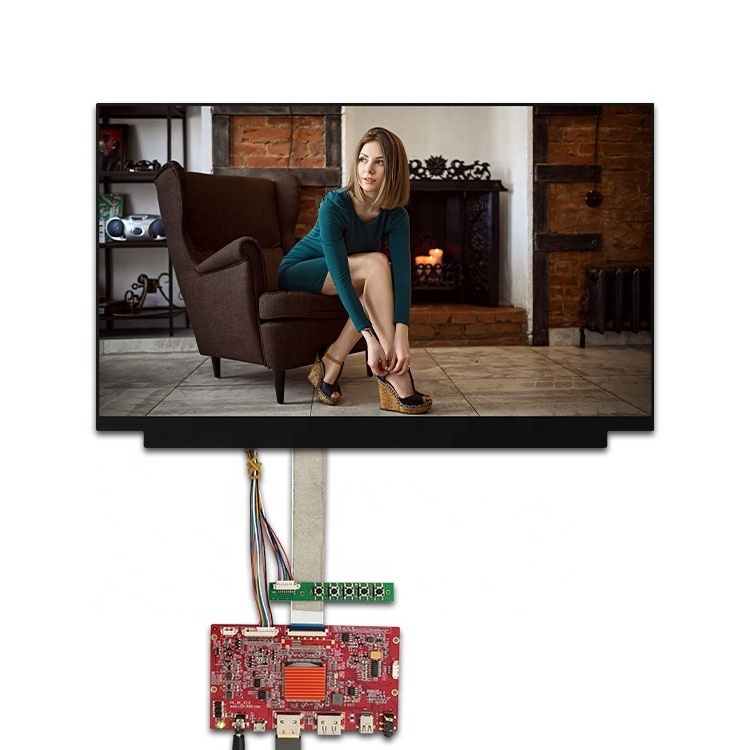

15.6 led edp 4 lane 40 pin connector controller slim IPS display 15.6" edp 4K UHD 3840X2160 lcd screen panel
|
General Features |
|||
|
Screen Size |
15.6 inch |
Type |
LCM , a-Si TFT-LCD |
|
Pixel Number |
3840(RGB)×2160 (UHD) |
Configuration |
RGB Vertical Stripe |
|
Active Area(mm) |
345.6 × 194.4 (H×V) |
Outline(mm) |
351.9 × 217.2 × 3.2 (H×V×D) |
|
Bezel Area(mm) |
- |
Treatment |
Glare (Haze 0%), Hard coating (3H) |
|
Luminance |
300 cd/m2 (Typ.) |
Contrast Ratio |
1300 : 1 (Typ.) (TM) |
|
View Direction |
Symmetry |
Response Time |
30 (Typ.)(Tr+Td) ms |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR ≥ 10) |
Operating Mode |
ADS, Normally Black, Transmissive |
|
Support Color |
16.7M 72% (CIE1931) |
Light Source |
WLED , 15K hours , With LED Driver |
|
Outline Shape |
Slim (PCBA Flat, Depth 3.2mm) |
Used for |
Laptop |
|
Refresh Rate |
60Hz |
Touchscreen |
Optional |
|
Voltage Supply |
3.3V (Typ.) |
Signal Type |
eDP (4 Lanes) , Connector , 40 pins |
|
Environment |
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
||
