Quick Details
-
Board Size:
-
custom
-
Model Number:
-

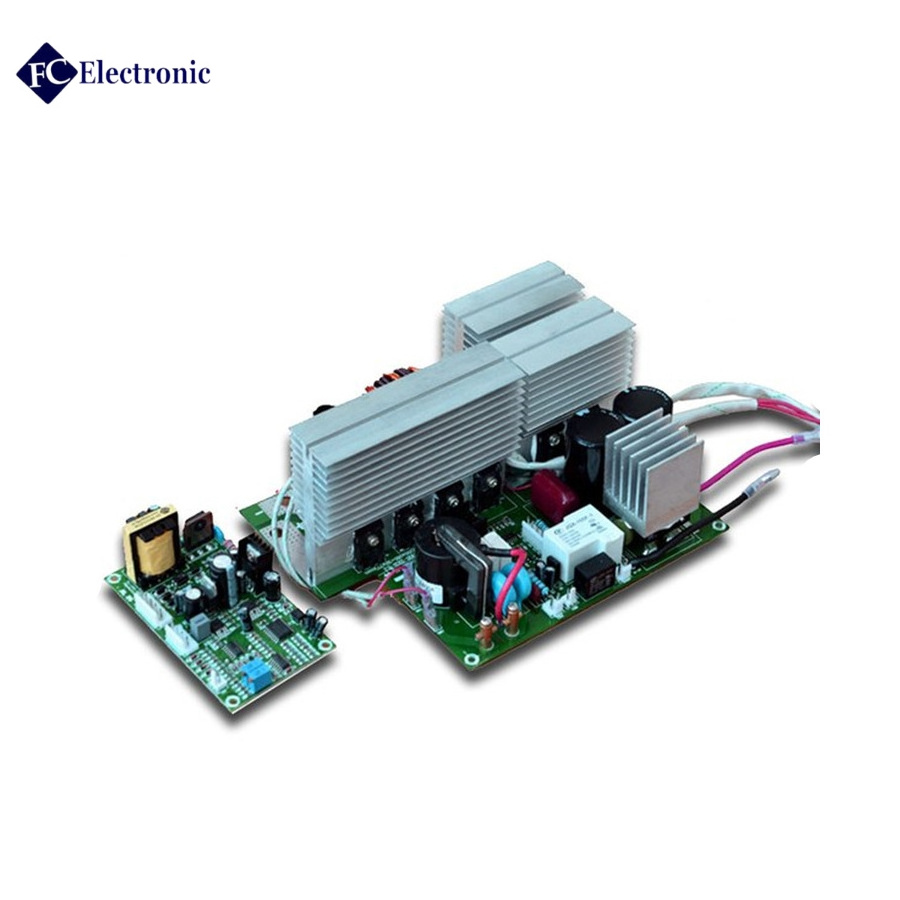

Welding Machines Circuit Board
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
custom
-
Copper Thickness:
-
0.4-2mil(10-50um)
-
Min. Hole Size:
-
0.1mm(4mil)for HDI / 0.15mm(6mil)
-
Min. Line Width:
-
0.075mm/0.075mm(3mil/3mil)
-
Min. Line Spacing:
-
0.003''
-
Surface Finishing:
-
HASL/OSP/Ag/ENIG/ENEPIG/Immersion silver/Tin
-
Material:
-
Rogers,Arlon,Cotanic,F4B,F4BK
-
Layers:
-
2~16 layers
-
Solder mask color:
-
Green/Yellow/Black/White/Red/Blue
-
Average hole wall copper:
-
thickness for HAL board>=25um
-
SMT Efficiency:
-
QFP,TQFP,BGA,QFN,PLCC,SOT,SOIC
-
Service:
-
EMS&OEM&ODM One-stop Service
-
Panel format:
-
Routing, V-CUT, Singl
-
Quality Control:
-
In Process QC, FQC, FQA, TQM
-
Certificate:
-
ISO9001/ISO13485/TS16949/UL
-
Keywords:
-
Welding Machines Circuit Board
Quick Details
-
Number of Layers:
-
2 - 32 Layers
-
Base Material:
-
FR-4/CEM-1/CEM-3/Polyimild/PTFE/Rogers
-
Board Thickness:
-
0.2-6mm
-
Board Size:
-
custom
-
Model Number:
-
Welding Machines Circuit Board
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
custom
-
Copper Thickness:
-
0.4-2mil(10-50um)
-
Min. Hole Size:
-
0.1mm(4mil)for HDI / 0.15mm(6mil)
-
Min. Line Width:
-
0.075mm/0.075mm(3mil/3mil)
-
Min. Line Spacing:
-
0.003''
-
Surface Finishing:
-
HASL/OSP/Ag/ENIG/ENEPIG/Immersion silver/Tin
-
Material:
-
Rogers,Arlon,Cotanic,F4B,F4BK
-
Layers:
-
2~16 layers
-
Solder mask color:
-
Green/Yellow/Black/White/Red/Blue
-
Average hole wall copper:
-
thickness for HAL board>=25um
-
SMT Efficiency:
-
QFP,TQFP,BGA,QFN,PLCC,SOT,SOIC
-
Service:
-
EMS&OEM&ODM One-stop Service
-
Panel format:
-
Routing, V-CUT, Singl
-
Quality Control:
-
In Process QC, FQC, FQA, TQM
-
Certificate:
-
ISO9001/ISO13485/TS16949/UL
-
Keywords:
-
Welding Machines Circuit Board
Poster
| PCB Item | Manufacture Capacity |
| Layer Counts | 1--20L |
| Base Material | FR4,High-TG FR4,CEM3,aluminum,High Frequency(Rogers,Taconic,Aron,PTFE,F4B) |
| Material Thickness(mm) | 0.40, 0.60, 0.80, 1.00, 1.20, 1.50, 1.60, 2.0, 2.4, 3.2 |
| Max board size(mm) | 1200x400mm |
| Board Outline Tolerance | ±0.15mm |
| Board Thickness | 0.4mm--3.2mm |
| Thickness Tolerance | ±8% |
| Minimum line/space | 0.1mm |
| Min Annular Ring | 0.1mm |
| SMD Pitch | 0.3mm |
| Holes | |
| Min Hole Size(mechanical) | 0.2mm |
| Min Hole Size(laser hole) | 0.1mm |
| Hole Size Tol (+/-) | PTH:±0.075mm;NPTH: ±0.05mm |
| Hole Position Tol | ±0.075mm |
| Plating | |
| HASL/LF HAL | 2.5um |
| Immersion Gold | Nickel 3-7um Au:1-5u'' |
| Surface Finish | HAL,ENIG,Plated Gold,Immersion Gold,OSP |
| Copper | |
| Copper Weight | 0.5--6oz |
| Color | |
| Solder mask | Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue |
| Silk screen | White, Black, Blue,Yellow |
| Acceptable File Format | Gerber file,Powerpcb,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000 |
| Certificate | ROSH,ISO9001 |
