- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Microtech
-
Size:
-
0.96inch
-
Display mode:
-
TFT
-
Resolution:
-
80*160
-
Outline Dimension:
-
14.04*27.95*1.35mm
-
Active Area:
-
10.8*21.7mm
-
Interface:
-
4L-SPI
-
FPC:
-
13 PIN
-
Working temperature:
-
-20°C ~ 70 °C
-
Storage temperature:
-
-30°C ~ 80 °C
Quick Details
-
Type:
-
AMOLED
-
Display Size:
-
0.96inch
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Microtech
-
Size:
-
0.96inch
-
Display mode:
-
TFT
-
Resolution:
-
80*160
-
Outline Dimension:
-
14.04*27.95*1.35mm
-
Active Area:
-
10.8*21.7mm
-
Interface:
-
4L-SPI
-
FPC:
-
13 PIN
-
Working temperature:
-
-20°C ~ 70 °C
-
Storage temperature:
-
-30°C ~ 80 °C

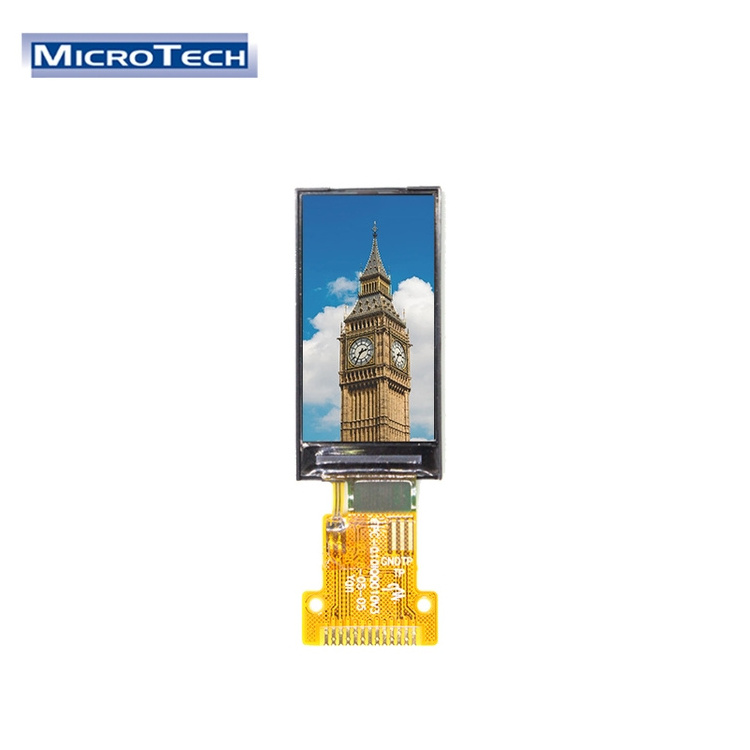

0.96 inch oled display 80*160 with 4 Line SPI interface mini oled screen
Specification
|
Item
|
Contents
|
Unit
|
|
Outline dimensions
|
k04X27.95X1.35
|
mm
|
|
Active area
|
10.80X21.70
|
mm
|
|
Number of Pixels
|
80RGB(H)X160(v)
|
pixels
|
|
Pixel pitch
|
0.045(H) xO.1356(V)
|
mm
|
|
Interface Type
|
4 Line SPI
|
|
|
Display mode
|
Normally black
|
|
|
Driver IC
|
ST7735S
|
|
Product Description
Related Types and Customized Services
TFT LCM Module
Standard and custom make from 0.95" TFT to 27.0" TFT
Resistive Touch Panel and Capacitive Touch Panels
Standard and custom design Resistive and Capacitive Touch Panels from 1.44" to 65.0"
TFT Module with Capacitive Touch Assembly
Standard and custom design Capacitive Touch CTP+TFT module from 1.44" to 19.0"
TFT Controller Board
Standard and custom make TFT Driving Board from 2.4" to 13.3"
Raspberry Pi 4B and TFT Display Kits
Development PCBA Board with Embeded System, Support OS Android, Linux,Windows
TFT Display for iPhone, iPad, Samsung 3G Android Smart Phone, Tablet PC
Customise Resistive and Capacitive Touch Panels as
you requirements Customise AG, AR, AF, AS, Cover lens
Add NTSC, PAL, VGA, HDMI Conversion Board and T-Con Board
Custmise the luminance of LED backlight for particular models,FPC Length, Sunlight Readable
Please contact us to send your engineering request
Resistive Touch Panel and Capacitive Touch Panels
Standard and custom design Resistive and Capacitive Touch Panels from 1.44" to 65.0"
TFT Module with Capacitive Touch Assembly
Standard and custom design Capacitive Touch CTP+TFT module from 1.44" to 19.0"
TFT Controller Board
Standard and custom make TFT Driving Board from 2.4" to 13.3"
Raspberry Pi 4B and TFT Display Kits
Development PCBA Board with Embeded System, Support OS Android, Linux,Windows
TFT Display for iPhone, iPad, Samsung 3G Android Smart Phone, Tablet PC
Customise Resistive and Capacitive Touch Panels as
you requirements Customise AG, AR, AF, AS, Cover lens
Add NTSC, PAL, VGA, HDMI Conversion Board and T-Con Board
Custmise the luminance of LED backlight for particular models,FPC Length, Sunlight Readable
Please contact us to send your engineering request
