- Product Details
- {{item.text}}
Quick Details
-
Certificate:
-
CE
-
Approval:
-
ISO
-
Base frame:
-
light steel structure
-
Standard:
-
Australia standard
-
Name:
-
modular guest house
-
Basic dimension:
-
20ft or 40ft
-
MOQ:
-
1set
-
Assemble time:
-
One unit only need 4 labors 2 days site assemble
-
Switch and power point:
-
AS standard type
-
Voltage:
-
220/380V, 50HZ
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Silverwood
-
Model Number:
-
ABI-240
-
Certificate:
-
CE
-
Approval:
-
ISO
-
Base frame:
-
light steel structure
-
Standard:
-
Australia standard
-
Name:
-
modular guest house
-
Basic dimension:
-
20ft or 40ft
-
MOQ:
-
1set
-
Assemble time:
-
One unit only need 4 labors 2 days site assemble
-
Switch and power point:
-
AS standard type
-
Voltage:
-
220/380V, 50HZ

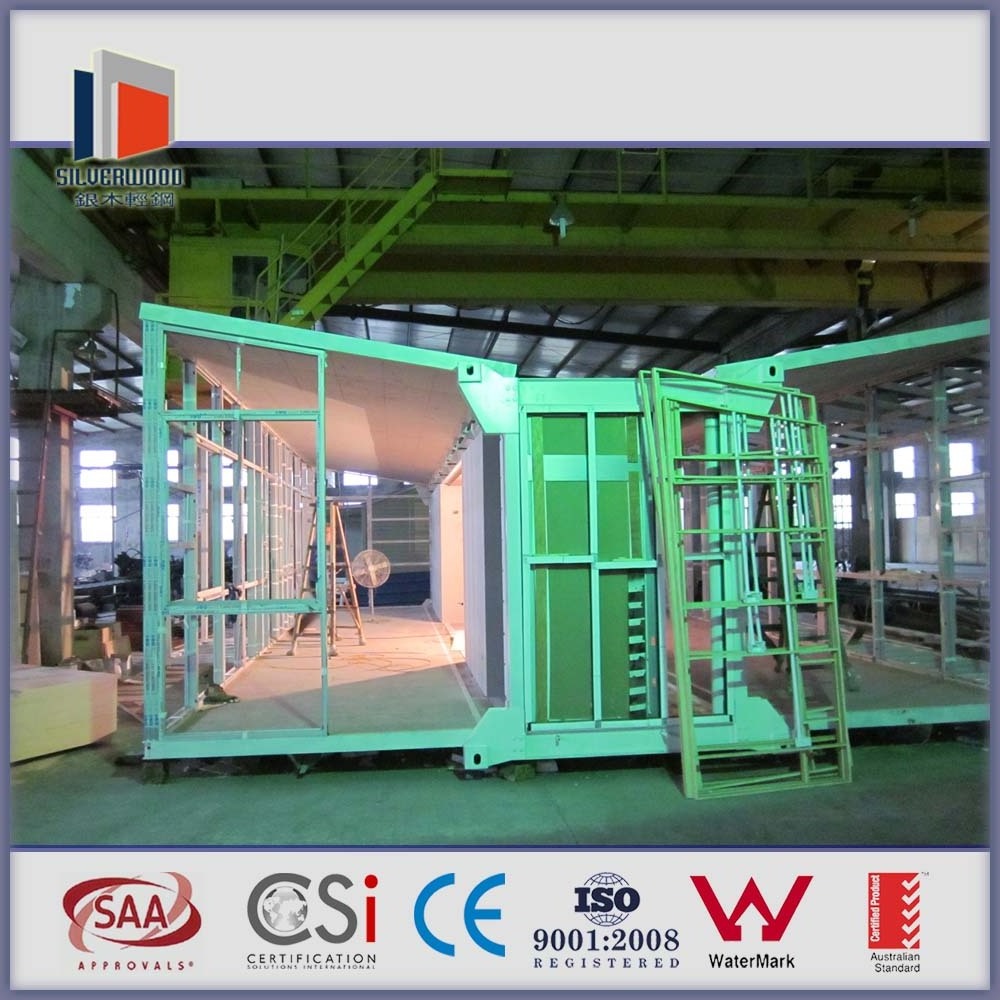

Silverwood Smart house system
- One unit modular guest house only need 4 labors 2 days site assemble. It can be 20’ and 40’, the width can maximum be 7m. it is suitable for the luxury second home, hotel cabin, site office or the mining camp
- We have got the CE certificated for the modular guest house system. And we can supply different country standard for the electrical and sanitary
- We have exported the products more than 50 country around the world. And have more than 10 years experience in this region.
- We supply the supervisor and labors if client need.
- We got the Australia standard window, sanitary, electrical, water pipe etc, and our framing system have already proved by the Australia Engineer.
- We have more than 100000sqm factory area, and the prefab villa manufacture capacity can be 50units per month. prefab mobile homes
|
Smart houses Material specification |
||
|
1 |
Steel framing |
2~10mm , cold-formed steel& hot-rolled beam, strength: G250~350 |
|
2 |
Dimension |
20’: 6055x6943x3000mm , 40’: 12192x6943x3000mm |
|
3 |
Roof |
0.5mm color-bond steel sheet roof |
|
4 |
Floor |
18mm fiber-cement board+15mm bamboo flooring |
|
5 |
Window |
AS standard aluminum double glass sliding window |
|
6 |
External door |
AS standard aluminum double glass sliding door& bi-folding door |
|
7 |
Internal door |
Wooden door |
|
8 |
External wall |
70mm XPS Sandwich panel wall with 2mm special aluminum frame |
|
9 |
Internal wall |
12mm Gyproc with emusion paint |
|
10 |
Ceiling |
18mm PVC ceiling panel |
|
11 |
Sanitary |
White ceramic, water-mark certificate |
|
12 |
smart cabin Kitchen |
MDF cabinet surface with lacquered paint and bench top with quartz stone |
|
13 |
Electrical fittings |
Wiring, power point, switch, light, circuit-breaker etc |
|
14 |
Gutter |
Aluminum gutter with down pipe |
modular guest house Package:
- All the materials of modular guest house are well packed by the plywood or the steel skid before loading the container.
- 20’ SOC HQ container can load 1 units 20’ smart house, 40’ HQ SOC can load 1 units 40’ smart house .
- All the materials of modular guest house are well fixed and tight to prevent the moving during the transport.
- Outside have 2 layer water-proof, one is the film for the internal layer, and external layer use the canvas.
website: www.steelhouse.cn
