Quick Details
-
Model Number:
-
FP4S
-
Weight:
-
3KG, 3KG
-
Aspect Ratio:
-
'4:3, 16:9
-
Panel Type:
-
Other
-
Resolution:
-
Other
-
Packing Dimension:
-
31.5*18*10.5 CM
-
writing method:
-
finger touch
-
Product Dimension:
-
5.3*18*3.0 CM
-
Screen Size:
-
100 Inch
-
Certificates:
-
CE FCC ISO
-
Touch technology:
-
Laser Image Calibration Technology
-
Calibration:
-
Automatic ( 5 seconds)
-
Touch points:
-
10 points touch
-
After Sale Service:
-
Provided
-
Warranty:
-
2 Years
-
Touch method:
-
Finger touch
Quick Details
-
Panel Size:
-
Other
-
Place of Origin:
-
Shanghai China
-
Brand Name:
-
GLOVIEW
-
Model Number:
-
FP4S
-
Weight:
-
3KG, 3KG
-
Aspect Ratio:
-
'4:3, 16:9
-
Panel Type:
-
Other
-
Resolution:
-
Other
-
Packing Dimension:
-
31.5*18*10.5 CM
-
writing method:
-
finger touch
-
Product Dimension:
-
5.3*18*3.0 CM
-
Screen Size:
-
100 Inch
-
Certificates:
-
CE FCC ISO
-
Touch technology:
-
Laser Image Calibration Technology
-
Calibration:
-
Automatic ( 5 seconds)
-
Touch points:
-
10 points touch
-
After Sale Service:
-
Provided
-
Warranty:
-
2 Years
-
Touch method:
-
Finger touch
Product Description
Finger touch smart board portable interactive whiteboard,10 points touch,virtual interactive whiteboard
That is a portable interactive whiteboard with laser touch image calibration technology .we are professional on that market for around 11 years.it can work with any kinds of projector and turn any flat surface into touch screen.it can widely using in classroom,meeting room and for advertising display,big ball projection game....
Application scenarios
Classroom，Training
Classroom，Training
Primary School
Primary School
University
University
Our Advantages
1, Finger touch, active size up to 100 inches.
2, Portable, Easy to maintain and transport.
3,
work with any third party application software.
4, 10 points touch.
5, Plenty of gestures recognition.
6, Cost-effective.
7,
Auto Calibration Function.
Plenty of Gestures recognition to make the operation more easier
Easy teaching of all subjects
Teaching tools,drawing,marking key points
Spotlight to mark key points
Spotlight to mark key points
Comparison Table
|
Technology
|
Structure
|
Auto Calibrate
|
Multi Touch
|
Gesture Recognition
|
Cost and Active Size
|
Maintenance
|
Ability to resist dust
|
Better appearance
|
Cost
|
|
LICT
|
Emitter (5.3cm*18.8cm*3.0cm) and Sensor. Don’t need any special device on the board frame
|
Yes
|
Yes (Max 10 points)
|
More
|
Cost increase little when size increase
|
Only change module
|
Best
(The emitter fix on the upper of the projecting screen,there is no any equipment in frame.no matter there is dust,it still can use.) |
No frame
|
One worker can finish the installation and adjustment within half an hour,Low costs
|
|
IR
|
IR frame in each edges of board
|
No
|
Yes
|
Few
|
Cost increase much when size increase
|
Return the whole board back
|
Bad
(it is easy for the dust to store in IR frame.the dust is influence to the using) |
IR Frame
|
Complex installation,High costs
|
|
Optical
|
Reflective stripes in each frame of the board and optics module
|
No
|
No
|
Few
|
Cost increase much when size increase
|
Return the whole board back
|
Worse
(It is easy for the dust to store in lighting tape.the dust is influence to the using) |
No reflect light frame
|
Complex installation,High costs
|
Specification
|
Finger Touch Portable Interactive Whiteboard—FP4 Board
|
|
|
|
Calibration
|
Automatic(5s) / Manual (25/36 points)
|
|
|
Gestures Recognition
|
Gesture Recognition In Education Software:Write with single finger,Erase with palm, Two fingers for move,Two fingers away for
zooming out and zooming in,Stay 2s with palm for opening spotlight,Double slap with palm for backing to desktop. In Windows:Max,Min windows,Zoom in or Zoom out or Rotate the picture, One finger as a scroll bar,Display all the windows,Shift windows. |
|
|
Multi-touch
|
Ten points touch, write and eraser can do together.
|
|
|
Latency
|
<30ms
|
|
|
Filter
|
Software auto-control, enhance stability.
|
|
|
Minimum Active Size
|
40 inch
|
|
|
Max Active Size
|
100inch ( the room with light-proof curtain,excludes double screen )
|
|
|
Technology
|
Laser Image Calibration Technology
|
|
|
Positional Accuracy
|
±1 Pixel (Resolution: 4096*4096)
|
|
|
Aspect Ratio
|
4:3；16:9；16:10
|
|
|
Projection ratio
|
Ultra short throw:0.15, installation distance:0.35m;
Ultra short throw:0.21, installation distance:0.45m; Ultra short throw:0.28, installation distance:0.45m; Short throw:0.34, installation distance:0.54m； Long throw:0.86, installation distance:1.4m; Long throw:1.34, installation distance: 2.2m. (Depends on 80’’ projection screen aspect ratio:4:3) |
|
|
Laser Beam
|
2units.
|
|
|
Wave of Laser
|
808nm
|
|
|
Power
|
5w
|
|
|
Power of Laser Beam
|
280mw*2
|
|
|
Power Requirements
|
3.3V/2A
|
|
|
Signal Refresh Rate
|
120fps
|
|
|
Connect
|
The sensor and computer are connected by USB Cable; Emitter and
Sensor are wireless; Emitter just needs power. |
|
|
Weight
|
0.5kg
|
|
|
OS Requirement
|
Windows 7, Windows 8,Windows 10,Android
|
|
|
Software
|
Calibration software(driver) and GLboard(education software)
|
|
|
Certification
|
CE, FCC
|
|
|
Warranty
|
2 years
|
|
|
Package
|
1. Sensor 2.Emitter 3.Mounts 4.USB cable (12m) 5.Pointer 6.Power Adapter
|
|
Working principle
Laser Image Calibration Technology (LICT)
FP4 Board with two parts: emitter and sensor. Emitter can be attached on flat surface. It emits infrared laser curtain on the surface which is about 1mm thick invisible light and parallel with the projection screen surface, 1-2mm above the screen surface. When the finger or any non-transparent object touch this virtual surface, the light will be reflected and detected by the sensor. Computer will figure out the position of the mouse by accurate calculating the reflected light position.
Packing & Delivery
Portable ,Easy to store and ship.

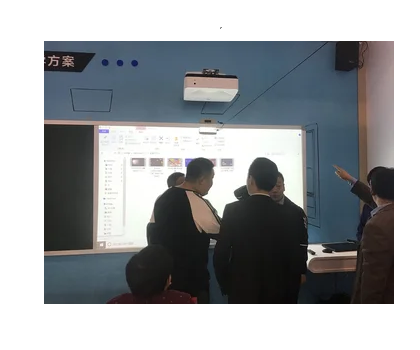

Exhibitions
Bett in London
CES in Las Vegas
Infocomm in Amsterdam
In Thailand
In Dubai
In Germany
