Quick Details
-
Application:
-
Hotel
-
Product Weight（kg）:
-
0.8
-
Wattage:
-
20W
-
Working Temperature(℃):
-
-20℃~40℃
-
Lamp Luminous Flux(lm):
-
1300LM
-
Brand Name:
-
STARLUX
-
Working Lifetime(Hour):
-
30000
-
Beam Angle(°):
-
180°
-
LED Chip Brand:
-
YES
-
Theory:
-
motion Sensor
-
Product name:
-
motion sensor light
-
Colour:
-
White
-
Installation:
-
wall mount
-
Material:
-
PC
-
Function:
-
motion sensor led lights
-
Certificate:
-
CE
-
Warranty:
-
5 Years
Quick Details
-
Type:
-
wall lamp
-
Lamp Luminous Efficiency(lm/w):
-
80
-
Warranty(Year):
-
3-Year
-
Application:
-
Hotel
-
Product Weight（kg）:
-
0.8
-
Wattage:
-
20W
-
Working Temperature(℃):
-
-20℃~40℃
-
Lamp Luminous Flux(lm):
-
1300LM
-
Brand Name:
-
STARLUX
-
Working Lifetime(Hour):
-
30000
-
Beam Angle(°):
-
180°
-
LED Chip Brand:
-
YES
-
Theory:
-
motion Sensor
-
Product name:
-
motion sensor light
-
Colour:
-
White
-
Installation:
-
wall mount
-
Material:
-
PC
-
Function:
-
motion sensor led lights
-
Certificate:
-
CE
-
Warranty:
-
5 Years

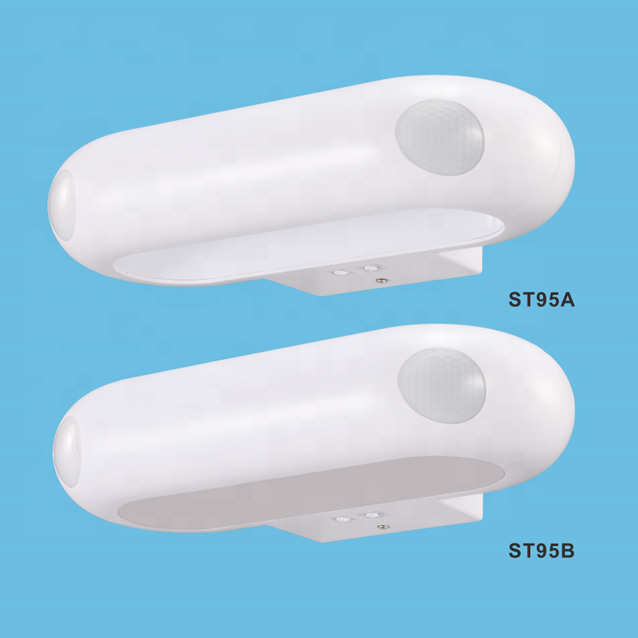

Welcome to read ST95 PIR Sensor Light!
The product adopts microwave LED sensor mould with high-frequency electro-magnetic wave (5.8GHz) and integrated circuit, SMD LED. It gathers automatism, convenience, safety, saving-energy and practical functions. The wide detection field is consisting of detectors. It works by receiving human motion. When one enters the detection field, it can start the load at once and identify automatically day and night. Its installation is very convenient and its application is very wide. Detection is possible to go through doors, panes of glass or thin walls.
SPECIFICATION:
Power Source: 220 -240V/AC Power Frequency: 50/60Hz
Detection angle:180° Transmission Power: <0.2mW
Detection Distance: wall: 10m Installing Height: wall: 1.8-2.5m
Rated Load: 20W (1300LM) Power Consumption: approx 0.9W
Detection Motion Speed: 0.6-1.5m/s IP Class: IP65
Lifetime and warranty:
| Lifetime(hr) | 26000-45000 at least |
| Warranty | 3 years |
FUNCTION:
Ø Hold time is optional. It can be set according to the consumer’s desire. The minimum time is 10sec.The maximum is 10min.
Ø It offers 3 levels of light: 100 %--> dimmed light (20%optional) -->off; and 2 periods of selectable waiting time, motion hold time and stand-by period; selectable LUX value and choice of detection area.
SENSOR INFORMATION:
INSTALLATION: (see the diagram)
Ø Switch off the power.
Ø Screw off the nail on the top and bottom of sensor lamp and unload the bottom .
Ø Pass the wire through the hole in the bottom and c onnect the power wire into connection-wire column according to the connection -wire diagram. Install the sensor lamp in the position where you need with inflated screws. (refer to the below figure)
Ø S witch on the power and test it .
.
CONNECTION-WIRE DIAGRAM:
PRODUCT CAPACITY:
Our company adopts automatic machines,such as:SMD,auto component inserter,wave solder,auto injection machine and so on.And the daily output is up to 20000~30000pcs.
CERTIFICATE:
The concept of our company is"advocating new modern living environment",which focuses on researching and developing the contemporary household intelligent product.Our product can be truly satisfied for different customer's requirement,most of them are available with CE GS ROHS R&TTE REACH certification .
