Quick Details
-
Power:
-
27.1kw
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Xugong
-
Maximum Digging Height:
-
5317mm
-
Maximum Digging Depth:
-
3598mm
-
Max Digging Radius:
-
3697mm
-
Rated Speed:
-
4.2/2.6km/h
-
Marketing Type:
-
New Product
-
Engine Model:
-
4TNV88
-
Certification:
-
ISO CE
Quick Details
-
Operating Weight:
-
4050kg
-
Bucket capacity:
-
0.14m³
-
Engine Brand:
-
Imported
-
Power:
-
27.1kw
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Xugong
-
Maximum Digging Height:
-
5317mm
-
Maximum Digging Depth:
-
3598mm
-
Max Digging Radius:
-
3697mm
-
Rated Speed:
-
4.2/2.6km/h
-
Marketing Type:
-
New Product
-
Engine Model:
-
4TNV88
-
Certification:
-
ISO CE

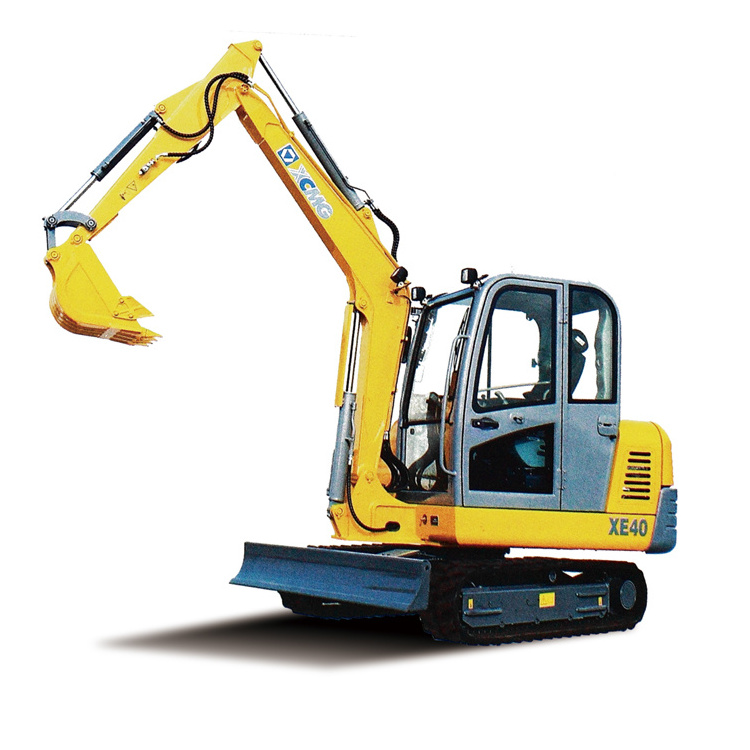

Popular xcm g 4 ton hydraulic crawler excavator XE40 in stock
1,The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2,The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3,The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4,The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.
| Model | XE40 | ||
| Bucket capacity | m3 | 0.14 | |
| Standard bucket width | mm | 652 | |
| Operation weight | kg | 4,050 | |
| Dimension(in transportation) | Overall length | mm | 5,455 |
| Overall width | mm | 1,650 | |
| Overall height | mm | 2,440 | |
| Min. clearance | mm | 350 | |
| engine | Model | 4TNV88 | |
| Total displacement | L | 2.19 | |
| Rated output power | KW/rpm | 27.1/2200 | |
| Digging performance | Max. digging height | mm | 5,317 |
| Max. dumping height | mm | 3,697 | |
| Max. digging depth | mm | 3,598 | |
| Max. vertical digging depth | mm | 3,330 | |
| Max. digging radius | mm | 5,810 | |
| Boom deflection angle | ° | ||
| Min. slew radius | mm | 2,385 | |
| Min. rear slew radius | mm | 1,490 | |
| Bucket digging force | kn | 23.2 | |
| Track type | Rubber/steel | ||
| Track width | mm | 300 | |
| Travel System | Track length | mm | 2,198 |
| Wheel base | mm | 1,721 | |
| Track gauge | mm | 1,335 | |
| Travel speed (Gear I/II) | km/h | 4.2/2.6 | |
| Gradeability | % | 58 | |
| Slew speed | rpm | 13.5 | |
| Bulldozing plate | Bulldozing plate width | mm | 1650 |
| Bulldozing plate height | mm | 300 | |
| Lifting distance | mm | 267/365 | |
| Hydraulic pump type | Variable pump×1 +gear pump×1 | ||
| Slew motor type | Piston hydraulic motor | ||
| Travel motor type | Piston hydraulic motor | ||
| Fuel tank capacity | L | 65 | |
| Hydraulic oil tank capacity | L | 70 | |
