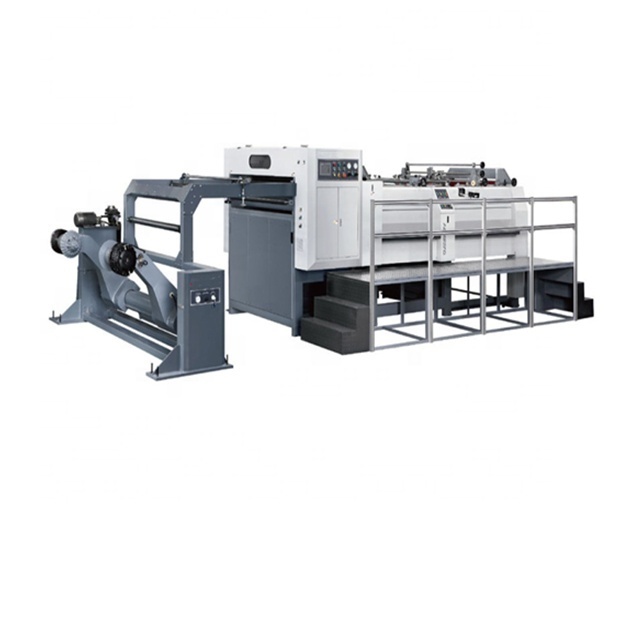

CSC-1400A Servo Driven High Speed Sheet Cutter for Paper Rolls

STRUCTURE CHARACTERISTIC

CSC web cutting machine uses the advanced technologyof Taiwan and Britain,
The machine is driven by AC servo motor.
The speed of paper cutting is fast and stable.
Germany precise bearing and cutting knife assure the high cutting precision.
Touch screen computer interface control, simple operation, reasonable structure,
Anti-noise stands, to ensure smooth paper.
This machine is widely used in paper making, paper products processing and printing industry, and will improve efficiency and increase benefit for your company.

THE CONTENT OF STANDARD CONFIGURATION

1. High-precision single knife cutting machine
2. Prismatic adjustment system for paper
3. Middle slitting and waste collection system
4. Automatic counting and label inserting equipment
5. Paper transporting euipment
6. Automatic paper trimming and collecting machine
7. Electrical controlling system
8. Driving motor
9. Accessory
10. Double lime pneumatic shaftless paper rack

Main Technical Parameter:

1. Measurement of the machine: 17 000* 52 00*2400mm ;

2. Weight: 1 3 000kg reference

3. Max Speed: 300cuts/min

4. Voltage: 380V, 28kw, 3Phase, 50Hz

5. Reference weight of cutting paper: 5 0-550g

6. Cutting accuracy : ± 0.3mm for cutting paper length ≤1000mm, ± 0. 05% for cutting paper length >1000mm

7. Cutting length: 400-1 4 50mm/

8. Maximum scroll diameter : 1800mm (71) max

9 . Maximum paper cutting width : 1 4 00mm

10. The format of slitting :2 sheet

11. Max cutting mater speed :300m/min

12. Air pressure source requirements:0.8Mpa

13. Output: Actual yield based on the paper texture, paper weight, cutting length, volume, number, operator technical paper, operations .

14. Cutter maximum load :Single card paper - 500gsm must consider the density and quality
