Quick Details
-
Place of Origin:
-
Henan, China
-
Voltage:
-
220/380V
-
Power:
-
1.5KW
-
Dimension(L*W*H):
-
1100*265*920mm
-
Weight:
-
100 KG
-
Output product name:
-
Orange juice, Apple juice
-
Application:
-
Tomato Mango Kiwifruit Strawberry
-
Function:
-
Juicer Industrial Profession Juicer Extractor
-
Product name:
-
Pineapple Juicer Machine
-
Advantage:
-
High Efficiency Fruit Press
-
Key words:
-
Mango Juicer Making Machine Commercial
-
MOQ:
-
1 Set
-
Capacity:
-
0.5 -1.5T/H
-
Package:
-
Wooden Case
-
Material:
-
Stainless Steel
-
Related Name:
-
Fruit Washing Machine
Quick Details
-
Raw material:
-
Fruit, Vegetables
-
Model Number:
-
HF-0.5
-
Brand Name:
-
OHFU
-
Place of Origin:
-
Henan, China
-
Voltage:
-
220/380V
-
Power:
-
1.5KW
-
Dimension(L*W*H):
-
1100*265*920mm
-
Weight:
-
100 KG
-
Output product name:
-
Orange juice, Apple juice
-
Application:
-
Tomato Mango Kiwifruit Strawberry
-
Function:
-
Juicer Industrial Profession Juicer Extractor
-
Product name:
-
Pineapple Juicer Machine
-
Advantage:
-
High Efficiency Fruit Press
-
Key words:
-
Mango Juicer Making Machine Commercial
-
MOQ:
-
1 Set
-
Capacity:
-
0.5 -1.5T/H
-
Package:
-
Wooden Case
-
Material:
-
Stainless Steel
-
Related Name:
-
Fruit Washing Machine

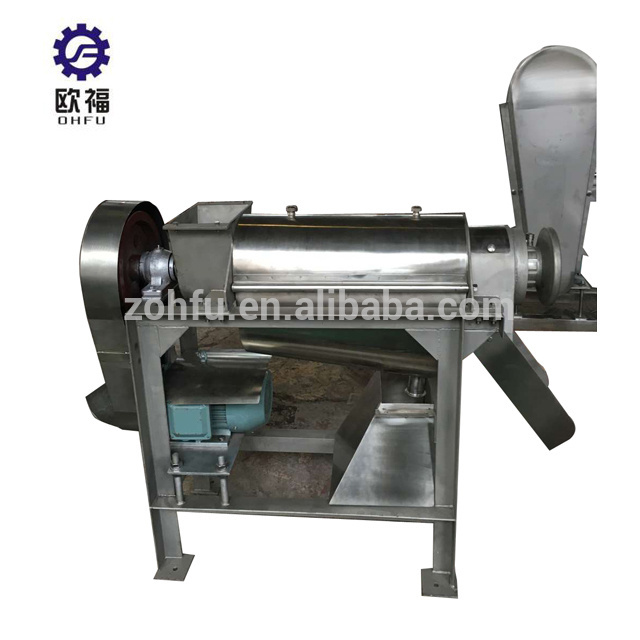

Commercial Juicer Make Pineapple Press Tomato Extract Fruit Juice Extractor Machine
The machine is suitable for pressing tomato, p ineapple, apple and orange etc fruit and
vegetable juice .
|
Type |
HF-0.5 |
HF-1.5 |
HF-2.5 |
|
F eed throughput |
500 Kg/h our |
1500 Kg/h our |
2500 Kg/h our |
|
Screw diamete r |
Φ87.5mm |
Φ175mm |
Φ250mm |
|
F ilter screen pore size |
0.6mm |
0.6mm |
0.6-1mm |
|
Motor Power |
1.5Kw |
4Kw |
11Kw |
|
Spindle speed |
400rpm |
400rpm |
400rpm |
|
Weight |
100Kg |
240Kg |
480Kg |
|
Dimension |
1100*265*920mm |
1560*450*1340mm |
1980*680*1620mm |
Structure
The machine is made of front pedestal, feeding hopper, screw, filtrating screen , juice
storing device, rear support , slag notch and other parts. Screw spindle support in the
rolling bearing and r ighthand side supports in hand wheel bearings. The electric motor drive the spiral working t hrough a pair of v-belt pulley.
