Quick Details
-
Model Number:
-
CM-8822 CM-8823
-
Range:
-
0~1000um/0~40mil
-
Resolution:
-
0.1um/1um
-
Accuracy:
-
±1~3%n or ±2.5um
-
Min.Measuring Area:
-
6mm
-
Min.Sample Thickness:
-
0.3mm
-
Metric/Imperial:
-
Convertible
-
Battery Indicator:
-
Low Battery Indicator
-
Dimensions:
-
161x69x32mm
-
Power Supply:
-
4x1.5V AA (UM-3)Battery
-
Weight:
-
250g(Not Including Batteries)
Quick Details
-
Warranty:
-
14months
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
CM-8822 CM-8823
-
Range:
-
0~1000um/0~40mil
-
Resolution:
-
0.1um/1um
-
Accuracy:
-
±1~3%n or ±2.5um
-
Min.Measuring Area:
-
6mm
-
Min.Sample Thickness:
-
0.3mm
-
Metric/Imperial:
-
Convertible
-
Battery Indicator:
-
Low Battery Indicator
-
Dimensions:
-
161x69x32mm
-
Power Supply:
-
4x1.5V AA (UM-3)Battery
-
Weight:
-
250g(Not Including Batteries)

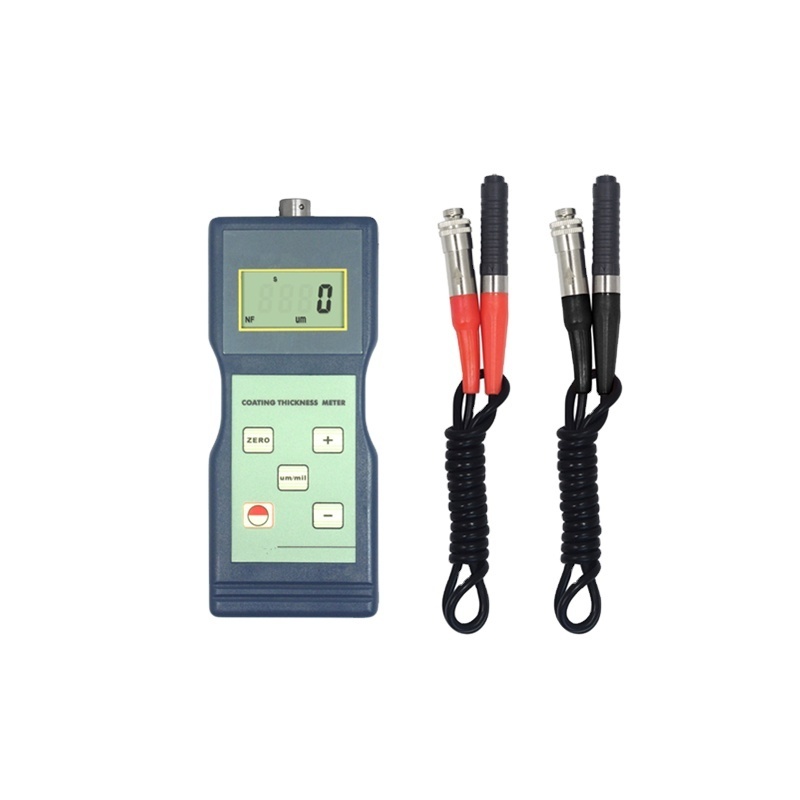

CM-8822 Metric&imperial system galvanized/paint/zinc coating thickness gauge
CM-8822 CM-8823
Spec :
The F probes measure the thickness of non-magnetic materials on magnetic materials. The N probes measure the thickness of non-conductive coatings on non-magnetic metals.
Features
* Two measuring methods: magnetic induction (F) and eddy current (N)
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value,and automatic recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
Principles
|
Principles |
Applications |
Examples |
|
F Type
|
Measure the thickness of non-magnetic materials on magnetic materials |
Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc |
|
NF Type
|
Measure the thickness of non-conductive coatings on non-magnetic metals |
Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc |
Specifications
|
Model |
CM-8822 |
CM-8823 |
|
Principle |
F Magnetic Induction & NF Type Eddy Current |
NF Type Eddy Current |
|
Range |
0~1000µm/0~40mil |
0~1000µm/0~40mil |
|
Resolution |
0.1µm/1µm |
0.1µm/1µm |
|
Accuracy |
±1~3%n or ±2.5µm |
±1~3%n or ±2.5µm |
|
Min.Radius Workpiece |
F Type:convex 1.5mm/concave 25mm |
F Type:convex 1.5mm/concave 25mm |
|
NF Type:convex 3mm/concave 50mm |
NF Type:convex 3mm/concave 50mm |
|
|
Min.Measuring Area |
6mm |
6mm |
|
Min.Sample Thickness |
0.3mm |
0.3mm |
|
Metric/Imperial |
Convertible |
Convertible |
|
Battery Indicator |
Low Battery Indicator |
Low Battery Indicator |
|
Automatic Power Off |
√ |
√ |
|
Operating Conditions |
Temperature:0~50ºC |
Temperature:0~50ºC |
|
Humidity:<80%RH |
Humidity:<80%RH |
|
|
Power Supply |
4x1.5V AA (UM-3)Battery |
4x1.5V AA (UM-3)Battery |
|
Dimensions |
161x69x32mm |
161x69x32mm |
|
Weight |
250g(Not Including Batteries) |
210g(Not Including Batteries) |
Accessories
|
Standard Accessories |
Main Unit |
|
Probe (F Type) |
|
|
Probe (NF Type) |
|
|
Calibration Base (F) |
|
|
Calibration Base (NF) |
|
|
Calibration Foils (1 set, 5 pieces) |
|
|
Carrying Case (B04) |
|
|
Operation Manual |
