small type Rubber Track Chassis for crawler wheelchair

small type Rubber Track Chassis for crawler wheelchair

FOB Reference Price: Get Latest Price

≥1 Pieces

US $4000

≥2 Pieces

US $3900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Construction Work

Type:: Rubber track conversion system for small vehicles

Product Keywords:: undercarriage

Power:: electric motor system

Model:: DP-LY-255

Max load:: 150KG

Color:: Black

Brand:: Pooyert

MOQ:: 1 Set

Quick Details

Place of Origin:: Shanghai, China

Brand Name:: POOYERT

Material:: Rubber, steel

Application:: Construction Work

Type:: Rubber track conversion system for small vehicles

Product Keywords:: undercarriage

Power:: electric motor system

Model:: DP-LY-255

Max load:: 150KG

Color:: Black

Brand:: Pooyert

MOQ:: 1 Set

Product Description

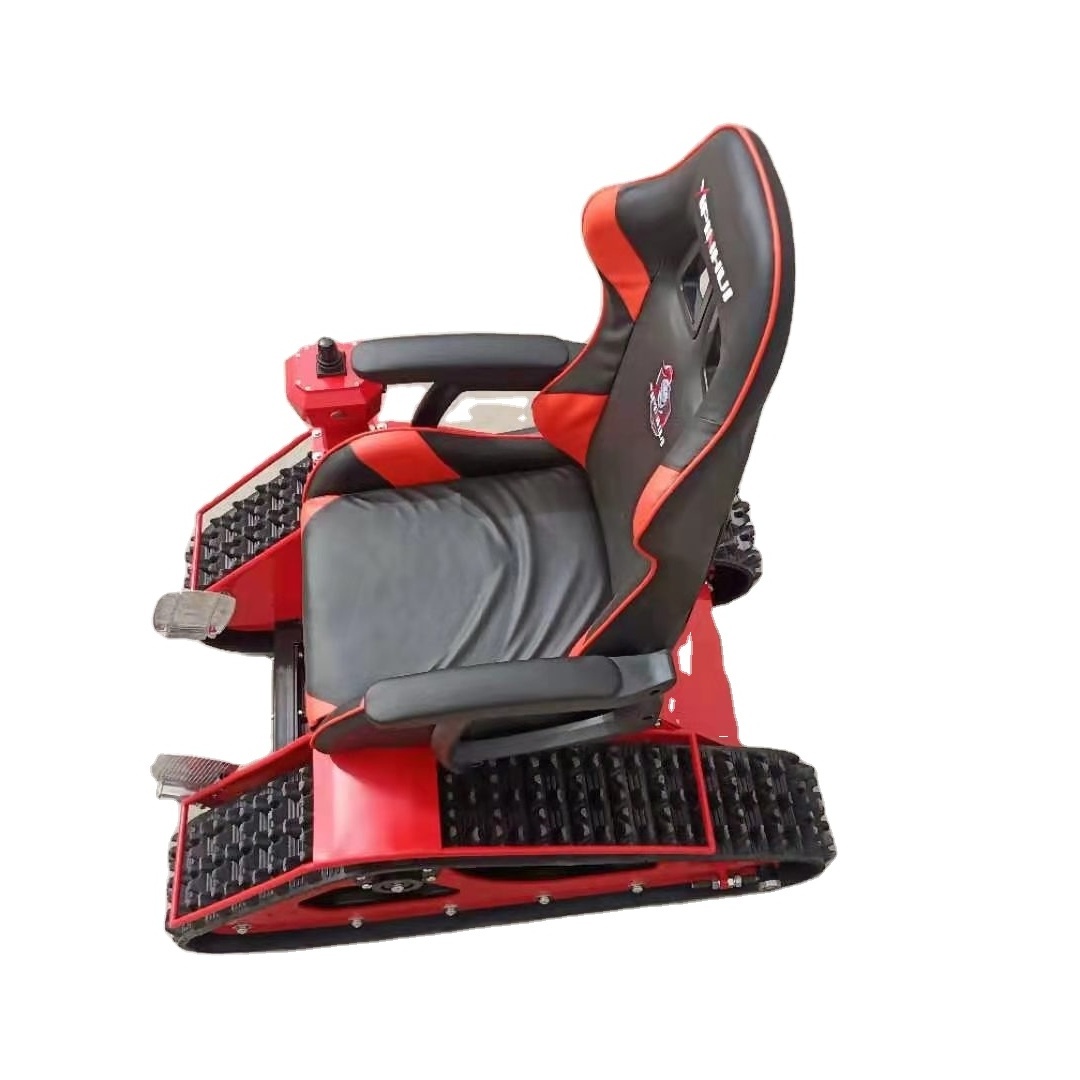

The robot chassis is an all-terrain off-road chassis with powerful functions and versatile uses.

It can achieve 50mm vertical obstacle crossing. Strong climbing ability, can easily climb 15 degrees, side slope 10 degrees.

Reasonable design, with 2000W DC brushless motor and turbo worm reducer, full power, can easily rotate 360 degrees.

The rubber track chassis is meticulous, small,flexible and beautiful. It is preferably made of aluminum alloy, resistant to decay and light in weight.

Size and material can be customized.

Specification

MODEL	DP-LY-200	ELECTRIC TYPE	DC BRUSHLESS MOTOR
LENGTH	1200MM	VOLTAGE	48V
WIDTH	800MM	MOTOR POWER	2000W
HEIGHT	550MM/1400(with chair)	REDUCER TYPE	WORM GEAR REDUCER
TRACK SIZE	200-36link	MAX SPEED	0-5KM/H
UNDERCARRIAGE WEIGHT	178.5KG	REMOTE CONTROL TYPE	RC REMOTE CONTROL
MAX LOAD CAPACITY	150KG	REMOTE AERA	500 METERS WITHOUT OBSTRUCTION
BOX MATERIAL	Steel	CONTROL TYPE	PWM
WHEEL MATERIAL	UPE	RECOMMEND BATTERY	LITHIUM BATTERY 48V30AH
SHAFT MATERIAL	45#steel	BATTERY LIFE	80MINS
STRUCTURE MATERIAL	stainless steel	SPRAYING METHOD	SPRAY
GROUND CLEARANCE	170MM	VERTICAL OBSTACLE HEIGHT	50MM

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

CAN I CUSTOMIZE NEW ONE?

YES!!

You can send us message with your size requirement for the undercarriage, as the size can be customized,so below points we should know from you.

1. The entire size of the rubber track undercarriage,like the Width,Length,Height is also very important for us to make a
recommendation for you.

2. Max loaded weight and what kind of machine to fit is necessary to determine the rubber track type

3. The undercarriage in the ads,please have a reference,if you like,we can adjust the size for you.Special customized size is also acceptable.
