Quick Details
-
Brand Name:
-
Flowpack
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
300*130*200
-
Weight:
-
10 KG
-
Certification:
-
CE ISO
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Automatic Grade:
-
Automatic
-
Application:
-
Date Coding Machine
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Flowpack
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
300*130*200
-
Weight:
-
10 KG
-
Certification:
-
CE ISO
-
Marketing Type:
-
Ordinary Product
automatic small ink roll digital expiry date printer mrp batch coding printing machine for food sachet packing packaging machine
|
|
|
M odel DS-1108 Ink roll coder machine is a newly date code pinter with novel structure, developed from the original design of our factory. It can be equipped with all kinds of flow packing machine and continuously vertical packing machine for tracing and printing production date, lot number, expire date, etc. automatically. Compact in structure, convenient in assembling and using, fast in printing with large printing cover, flexible in formatting types, and much shorter in the minimum printing distance, it has widely used in food and drug industries.
| Technical Parameter |
| Print Area | Axial=40mm, Radial=60mm | Type of Print Head | Right-hand, Clockwise | |
| Printing Lines | T-type (Axial) Max.13 lines, Max.20 C per line | Left-hand, Counter-clockwise | ||
| R-type (Radial) Max.11 lines, max.13 C per line | Ink Roll | Φ36 * 40mm | ||
| Font Size | T-type 1.5mm, 2.0mm, 2.5mm, 3.0mm * 3.5mm | Electrical | AC 220 ± 10V, 50/60Hz | |
| R-type 3.5mm * 3.5mm, 4.5mm, 5.5mm | Power | 130W, 2A Fuse | ||
| Cycle Rate | Max.300 print per minute | Enviromental Temp. | 4°C - 40°C | |
| Surface Speed | Max.35 meters per minute | Relative Humidity | 10% - 95% | |
| Pouch Length | ≥38mm, 4-up printer | Weight | Print head 2.0Kg, Control box 1.0Kg | |
| ≥75mm, 2-up printer | Dimension (L*W*H) | Print head 170 * 120 * 100 | ||
| Control Box | LED display | Control box 180 * 160 *105 |
• Stable printing, No missing printing
• Less mechanism consume
• Simple installation
| Optional Features |
• The overall length of Ink roll coder machine frame can be made according to actural situation of user's packing machine. The standard frame length are 350mm, 400mm, 500mm, 550mm. Length of fixed support, rubber roller shaft, rubber roller and transition, roller will be updated according to length of machine frame.
| Accessories |
| Type & Tweezer 1Set | NPN Approach Switch 1Pc | Electric Heating Tube 2Pcs |
| 3-Pin Power Line 1Pc | 7-Pin Connection Line 1Pc | Allen Wrench 8mm 1Pc |
| Silica Gel Bar 2Pc | Fuse 1A 1Pc | Operation Manual 1Copy |

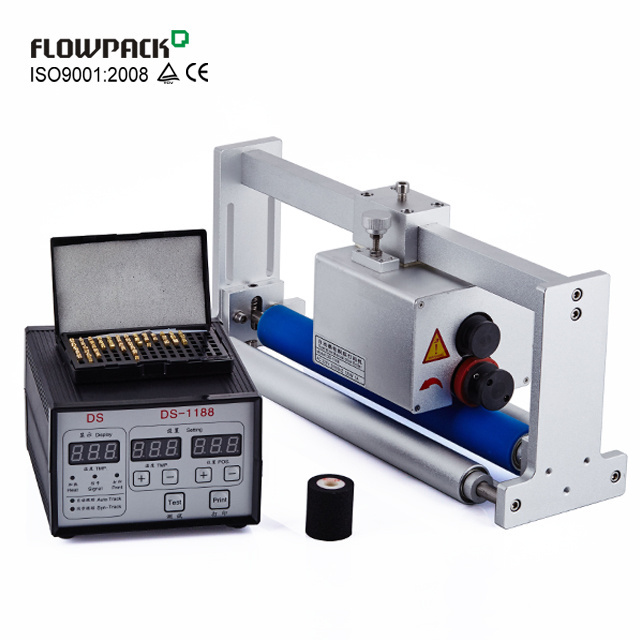

DS-1188 ink roll coding machine is working with continuous packing machine to print date code, lot number, etc. on plastic bags. It is widely used in food, pharmacy, tissue industries.
To ensure the quality of each Ink roll coder machine is up to standard, they will be examined and tested for 48 hours before delivery.
