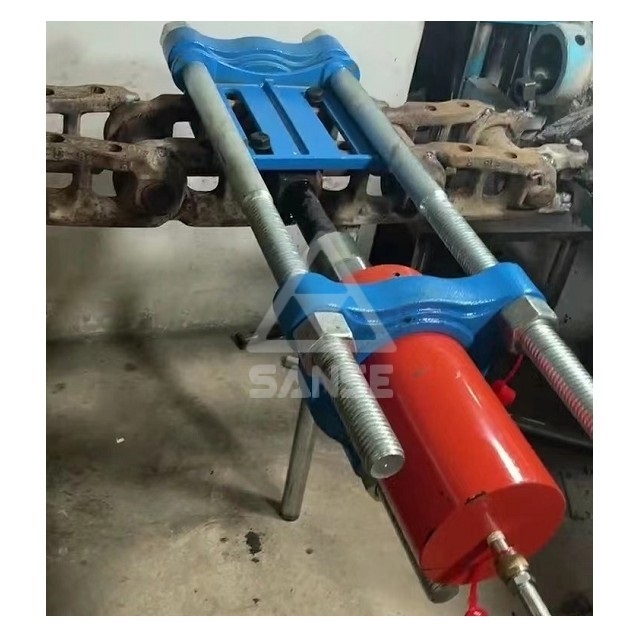

Support for disassembly 200 ton hydraulic press for track chain link pin press machine with electric motor

Master cylinder nominal pressure: 200 t

Master cylinder stroke: 220 mm

The rated pressure: 28 mpa / 63 mpa

Center height: 30 mm to 110 mm

Reference colors: red, yellow and blue

Advantages of our products

1.The agent factory

2.Good quality and reasonable price

3.Professional suggestion

4.This one supports splitting. Installation is simple. Easy to use.

5.Can customize according to customer's requirement!

Pressure chain machine, 200 t is suitable for the pin diameter of 55 mm below the tear open outfit.
The adoption of advanced welding technology, body consists of three pillars of connection, the stability is good. Center height can be adjusted by the same, light body, with manual pump station is suitable for field operation, at the same time as the workshop renovation tools, high efficiency, saving time and effort, but also can be used as a small hydraulic press disassembling a few small parts.
Roller chain - 200 t working principle: this machine is according to the principle of hydraulic energy into mechanical energy, high pressure pump as power source, the piston rod drives the disassembling tools, of caterpillar axis pin and pin to tear open outfit. Replace the original cutting and hammering method, the sound track is not damaged. Ideal is the crawler excavator maintenance, assembly special tools.
Field rescue, only need to pull down a screw, machine as for broken caterpillar track section, fixed, can easily broken caterpillar shaft pin and pin removal or installation.
Technical parameters: the master cylinder nominal pressure, maximum diameter: 200 t 60 mm
Master cylinder stroke: 180 mm
The rated pressure: 63 mpa
Center height: < H < 30 mm to 90 mm
