Quick Details
-
Brand Name:
-
CASUN
-
Model Number:
-
42SHD0217--100NK
-
Current / Phase:
-
1.5A
-
Frame Size:
-
42x42x40mm
-
Length of Screw:
-
100mm
-
Pitch:
-
8mm
-
Type of Screw:
-
Tr8x8
-
mass:
-
0.3kg
-
Thrust(full step):
-
12.5kg(at 300 pps)
-
Resolution:
-
0.04mm
-
lead pitch:
-
8mm
-
diameter:
-
8mm
-
key word:
-

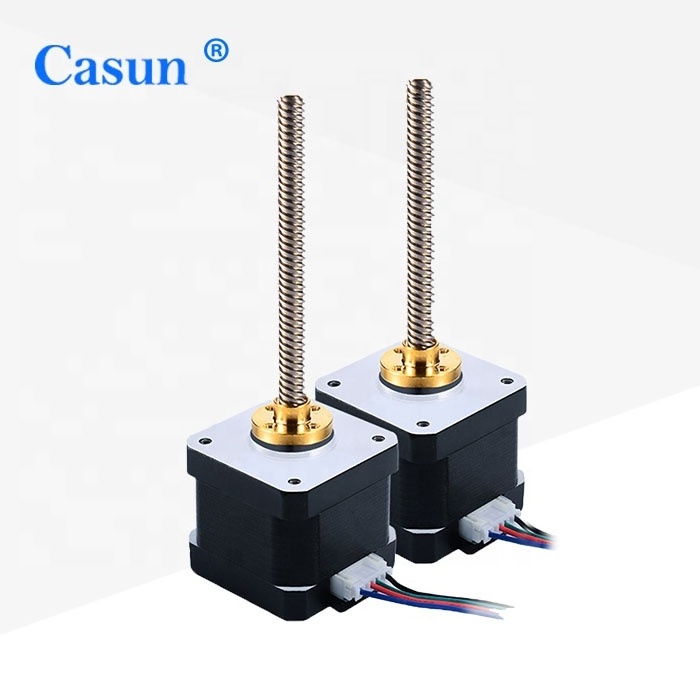

nema 17 linear stepper motor
Quick Details
-
Phase:
-
2
-
Type:
-
Hybrid
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CASUN
-
Model Number:
-
42SHD0217--100NK
-
Current / Phase:
-
1.5A
-
Frame Size:
-
42x42x40mm
-
Length of Screw:
-
100mm
-
Pitch:
-
8mm
-
Type of Screw:
-
Tr8x8
-
mass:
-
0.3kg
-
Thrust(full step):
-
12.5kg(at 300 pps)
-
Resolution:
-
0.04mm
-
lead pitch:
-
8mm
-
diameter:
-
8mm
-
key word:
-
nema 17 linear stepper motor
Recommend Products
Product Paramenters
|
Product Name
|
|
NEMA17 Hybrid Stepper Motor
|
|
|
|||
|
Size
|
|
42x42x40mm
|
|
|
|||
|
Shaft
|
|
Tr8x8
|
|
|
|||
|
Brand
|
|
Casun
|
|
|
|||
|
Model
|
|
42SHD0217-100NK
|
|
|
|||
|
General Specification
|
|
Electrical Specification
|
|
|
||
|
Step Angle
|
1.8°
|
Rated Voltage
|
3.75V dc
|
|
||
|
Number of Phase
|
2
|
Rated Current
|
1.5A
|
|
||
|
Insulation Resistance
|
100MΩmin. (500V DC)
|
Resistance per phase
|
2.2Ω±10%
|
|
||
|
Insulation Class
|
Class B
|
Inductance per Phase
|
5.0mH±20%
|
|
||
|
Rotor Inertia
|
57g.cm²
|
Holding torque
|
400mN.m
|
|
||
|
Mass
|
0.3kg
|
Detent torque
|
15mN.m
|
|
||
Same Series
|
Casun Model
|
General Model
|
Length
|
Angle
|
Rated Current
|
Holding Torque
|
|
42SHD4950-20B
|
17HS08-1004S
|
20mm
|
1.8°
|
1.0 A
|
0.13 N.m
|
|
42SHB4002-17
|
17HM08-1204S
|
20mm
|
0.9°
|
1.2 A
|
0.11 N.m
|
|
42SHD0008-24
|
17HS-0316S
|
34mm
|
1.8°
|
0.3 A
|
0.16 N.m
|
|
42SHD4003-20B
|
17HS13-0404S1
|
34mm
|
1.8°
|
0.4 A
|
0.26 N.m
|
|
42SHD4046-24
|
17HS13-1334S
|
34mm
|
1.8°
|
1.33 A
|
0.22 N.m
|
|
42SHD0217-24B
|
17HS4401
|
40mm
|
1.8°
|
1.5 A
|
0.5 N.m
|
|
42SHD0192-24B
|
17HS15-1504S1
|
40mm
|
1.8°
|
1.5 A
|
0.45 N.m
|
|
42SHD0134-22B
|
17HS15-1704S
|
40mm
|
1.8°
|
1.7 A
|
0.44 N.m
|
|
42SHB0509-24B
|
17HM15-0904S
|
40mm
|
0.9°
|
0.9 A
|
0.35 N.m
|
|
42SHD0285-24B
|
17HS15-0404S
|
40mm
|
1.8°
|
0.4 A
|
0.4 N.m
|
|
42SHD0287-24B
|
17HS15-1504S-X1
|
40mm
|
1.8°
|
1.5 A
|
0.45 N.m
|
|
42SHD4425-24B
|
17HS19-2004S1
|
48mm
|
1.8°
|
2.0 A
|
0.59 N.m
|
|
42SHD4463-24B
|
42BYGHW811
|
48mm
|
1.8°
|
2.5 A
|
0.48 N.m
|
|
42SHB4608-24B1
|
17HM19-2004S
|
48mm
|
0.9°
|
2.0 A
|
0.46 N.m
|
|
42SHD4813-24B
|
17HS24-2104S
|
60mm
|
1.8°
|
2.1 A
|
0.65 N.m
|
