Quick Details
-
Brand Name:
-
QXULTRASONIC
-
Power:
-
3000W
-
Dimension(L*W*H):
-
Tank Size: 800*600*550(L*W*H MM)
-
Product:
-
Ultrasonic Water Bath
-
Ultrasonic Power:
-
3000W
-
Heating Power:
-
9000w
-
Frequency:
-
28k 40k or Required
-
Volume:
-
264L
-
Timer:
-
1-99 mins adjustment
-
Temperature:
-
20-80 degree
-
Display:
-
Digital Display
-
Tank Size:
-
800*600*550mm L*w*h
-
Machine Size:
-
980*780*800 L*w*h
-
After Warranty Service:
-
Video technical support, Spare parts
-
Local Service Location:
-
Viet Nam, India, Russia
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
ce RoHS
Quick Details
-
Marketing Type:
-
Hot Product 2020
-
Core Components:
-
Ultrasonic Cleaner Soaking Tank
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
QXULTRASONIC
-
Power:
-
3000W
-
Dimension(L*W*H):
-
Tank Size: 800*600*550(L*W*H MM)
-
Product:
-
Ultrasonic Water Bath
-
Ultrasonic Power:
-
3000W
-
Heating Power:
-
9000w
-
Frequency:
-
28k 40k or Required
-
Volume:
-
264L
-
Timer:
-
1-99 mins adjustment
-
Temperature:
-
20-80 degree
-
Display:
-
Digital Display
-
Tank Size:
-
800*600*550mm L*w*h
-
Machine Size:
-
980*780*800 L*w*h
-
After Warranty Service:
-
Video technical support, Spare parts
-
Local Service Location:
-
Viet Nam, India, Russia
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
ce RoHS

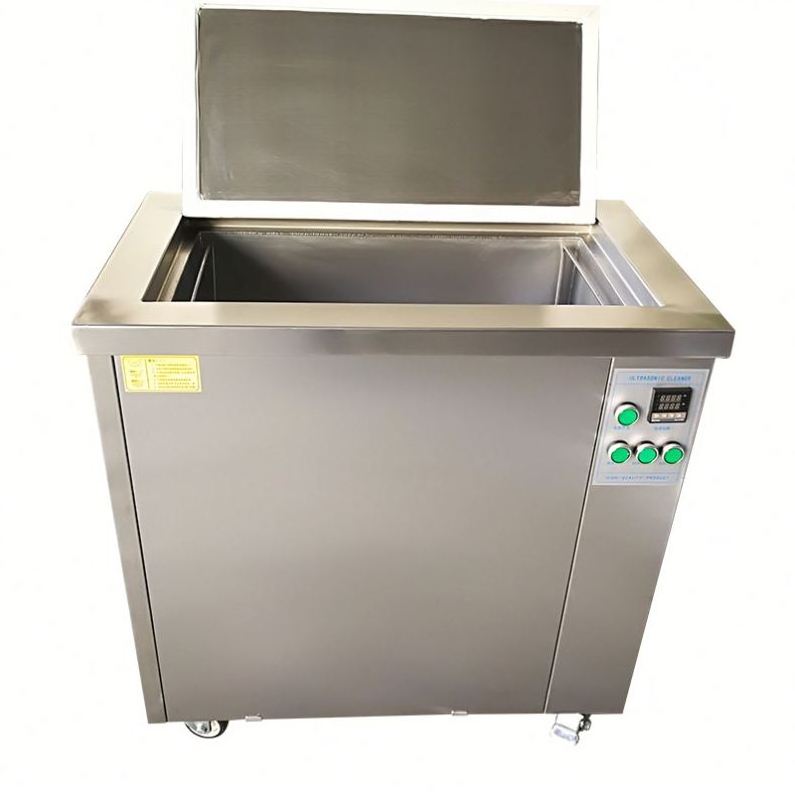

Sonicator Wheel Rim Ultra Sonic Cleaning Machine Cleaner 200L Pcb Injector Ultrasonic Water Bath
| Advantage of Ultrasonic Water Bath |
Compared to many other cleaning method,ultrasonic cleaning machine have advantages are as follow
- Cleaning effect is good, high cleanliness and cleanness of all artifacts;
- Cleaning faster, improve production efficiency;
- Don’t need hand touching cleaning fluid, safe and reliable;
- Deep blind hole, crack, and the product nook can be cleaned;
- Save solvent, thermal energy, work place and artificial, etc.
Some Specification of Digital Ultrasonic Cleaner |
Customize Various Different Size Ultrasonic Cleaning Machine according to the cleaning objects.
Two cleaning tank ultrasonc machine. (Ultrasonic Cleaning +Drying)
|
Type |
Frequency (KHz) |
Ultrasonic Transducer (PCS) |
Volume(L) |
Ultrasonic Power (W) |
Tank Size (L*W*H MM) |
Heaing Power (W) |
Timer (MIN) |
Drying |
Filter
|
|
QXC D E 38 |
28 or 40k or other
|
12 |
38 |
600 |
500*300*250 |
1500 |
1 ~99(h)
|
HAVE
|
|
|
QX CDE53 |
18 |
53 |
900 |
500*350*300 |
1500 |
||||
|
QX CDE78 |
24 |
78 |
1200 |
550*400*350 |
3000 |
||||
|
QX CDE88 |
24 |
88 |
1200 |
550*400*400 |
3000 |
||||
|
QX CDE99 |
30 |
99 |
1500 |
550*450*400 |
3000 |
||||
|
QX CDE135 |
36 |
135 |
1800 |
600 *500*450 |
4500 |
||||
|
QX CDE175 |
48 |
175 |
2400 |
7 00* 5 00* 55 0 |
6000 |
||||
|
QX CDE264 |
60 |
264 |
3000 |
8 00* 60 0* 550 |
9000 |
||||
|
QX CDE360 |
72 |
360 |
3600 |
10 00 *6 00* 600 |
1200 0 |
||||
|
QX CDE540 |
108 |
540 |
5400 |
1 0 00* 9 00*6 0 0 |
1 8000 |
||||
|
QX CDE960 |
144 |
960 |
7200 |
1 2 00*1000* 800 |
27000 |
♥ If you are interested in our product,
♥ Pls just feel free to send us your inquiry .
♥ We wil try our best to quote the competitive price for you! ----- Contact Us Now
Some More informations of Customized Ultrasonic Cleaning Equipment |
1)Tank: one tank or multiple-tank
2)Tank size: length *width * height (mm).
3) Cleaning tank material:
high quality SUS304 stainless steel of thickness 2 mm;
high-quality SUS316 stainless steel of thickness 2 mm.
Remark: SUS304 stainless steel is prevent from weak acid, weak base and weak corrosive. At present, the SUS304 is an agreed materials by market to used as steel cleaing tank. If you need a strong acid, strong alkali or corrosive solution as a kind of ultrasonic cleaner, you should use SUS316 stainless steel ultrasonic cleaning tank. SUS316 stainless steel is resistant to strong acid, alkali and corrosive liquid.
4)Frequency selection:
Usually,the frequency of industrial ultrasonic cleaner on the market is 40 KHZ or 28 KHZ at present.However,you can choose the frequency according to your cleaning items and the difficulty of cleaning item’s besmirch,then customized cleaners accordingly.
5)Ultrasonic Frequency Range:
Low Frequency :17 KHZ, 20 KHZ, 25 KHZ, 28 KHZ, 40 KHZ
High Frequency: 68 KHZ, 80 KHZ, 120 KHZ, 132 KHZ, 200 KHZ
Reminder: The smaller ultrasonic frequency bring the greater strength of cleaning. For example, 28 KHZ frequency’s cleaning effect is greater than 40 KHZ.
6)Ultrasonic Power Choose:
The Ultrasonic Power is calculated according to your tank size and the quantity of industrial ultrasonic transducer.
Heating power:
Generally, if there is not specified degrees, we will install the heat plate according to the capacity size, and temperature is 20-80 degrees.
7)Time Settings:
At present,1 — 30 minutes is ok. You can fixed the time to be 1-9999 minutes adjustable according to your cleaning items requirements.
8)Design of Ultrasonic.
Vibration plate type, sticky bottom type and hanging type. Till now, all of ultrasonic is the sticky bottom type on market. You can customize vibration plate type or hanging type according to your clean items requirements.
