Quick Details
-
Color:
-
Black
-
Weight:
-
35g
-
Mounting pattern:
-
25.5x25.5mm
-
Product name:
-

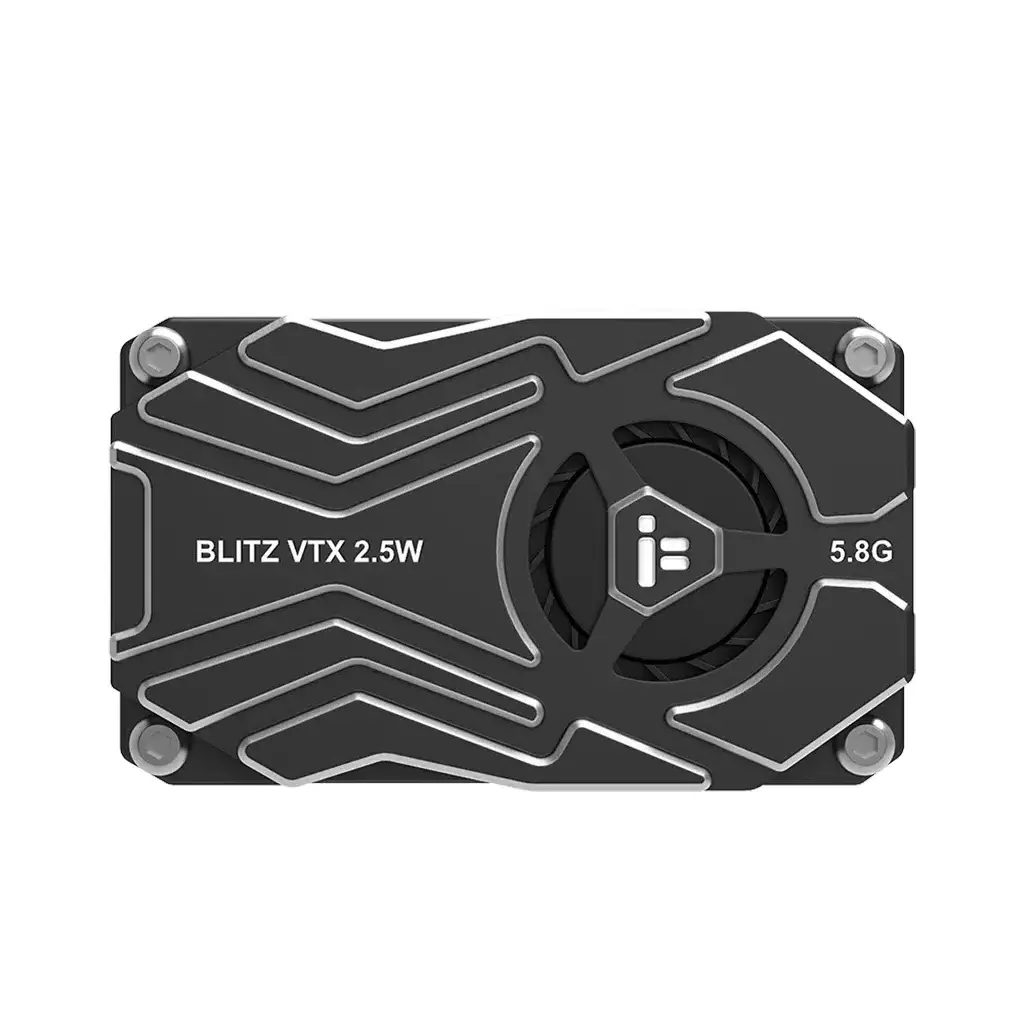

BLITZ BWhoop 5.8G 2.5W VTX
-
Input Voltage:
-
7V~34V
-
Channels:
-
40
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
chifu, iFlight
-
Model Number:
-
BLITZ BWhoop 5.8G 2.5W VTX, BLITZ BWhoop 5.8G 2.5W VTX
-
Color:
-
Black
-
Weight:
-
35g
-
Mounting pattern:
-
25.5x25.5mm
-
Product name:
-
BLITZ BWhoop 5.8G 2.5W VTX
-
Input Voltage:
-
7V~34V
-
Channels:
-
40
Product Description
Features
Built-in microphone
4 Power levels up to 2500mW;
40 Channels (including Raceband)
Fast frequency lock, no startup interference with other pilots
Built-in output power self-check functionality
The CNC cooling casing, along with an integrated cooling fan, offers a dual heat dissipation effect.
Tips
VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please
ensure you're flying legal frequencies and use our prepared Betaflight VTX tables according to your region.
Specifications
Input voltage: 7V~34V
Interface: MMCX
Power levels: PIT/25mW/400mW/1000mW/2500mW
Channels: 40 (including Raceband)
Mounting pattern: 25.5x25.5mm/Φ1.6
Lightweight: 32g (excluding antenna)
VTX telemetry: IRC Tramp
Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
RC Tramp VTX table values: 25mW/400mW/1000mW/2500mW
LED Indicator and Function Button
Power Button:
Press and hole for 2s: Enter or exit PIT mode, solid green light indicates entering PIT mode
Short press: Green light (output power): The number of LED flashing indicates the VTX output power. 1 flash=25mW, 2
flashes=400mW,3 flashes=1000mW, 4 flashes=2500mW. Short press to change output power.
Band and Channel Button
Press and hole for 2s: Red(BAND): The number of LED flashing indicates the BAND A-R. Press and hold for 2s to switch Band.
Short press: Blue(CH): The number of LED flashing indicate the channel 1 to 8. Short press to switch the Channel.
Ports
VBAT: 2-8S7-34V DC Positive Input
GND: Negative
5v out: 5v Voltage Output
IRC: IRC Tramp Signal Input
GND: Negative
Video in: Video Signal Input
Camera in: Camera video Input
Camera out:Camera video output
Packing List
1 x BLITZ Whoop 5.8G 2.5W VTX
Built-in microphone
4 Power levels up to 2500mW;
40 Channels (including Raceband)
Fast frequency lock, no startup interference with other pilots
Built-in output power self-check functionality
The CNC cooling casing, along with an integrated cooling fan, offers a dual heat dissipation effect.
Tips
VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please
ensure you're flying legal frequencies and use our prepared Betaflight VTX tables according to your region.
Specifications
Input voltage: 7V~34V
Interface: MMCX
Power levels: PIT/25mW/400mW/1000mW/2500mW
Channels: 40 (including Raceband)
Mounting pattern: 25.5x25.5mm/Φ1.6
Lightweight: 32g (excluding antenna)
VTX telemetry: IRC Tramp
Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
RC Tramp VTX table values: 25mW/400mW/1000mW/2500mW
LED Indicator and Function Button
Power Button:
Press and hole for 2s: Enter or exit PIT mode, solid green light indicates entering PIT mode
Short press: Green light (output power): The number of LED flashing indicates the VTX output power. 1 flash=25mW, 2
flashes=400mW,3 flashes=1000mW, 4 flashes=2500mW. Short press to change output power.
Band and Channel Button
Press and hole for 2s: Red(BAND): The number of LED flashing indicates the BAND A-R. Press and hold for 2s to switch Band.
Short press: Blue(CH): The number of LED flashing indicate the channel 1 to 8. Short press to switch the Channel.
Ports
VBAT: 2-8S7-34V DC Positive Input
GND: Negative
5v out: 5v Voltage Output
IRC: IRC Tramp Signal Input
GND: Negative
Video in: Video Signal Input
Camera in: Camera video Input
Camera out:Camera video output
Packing List
1 x BLITZ Whoop 5.8G 2.5W VTX
