Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
SHENGQUAN
-
Core Components:
-
HOSE
-
Weight (KG):
-
4 kg
-
Origin of Place:
-
China
-
Brand:
-
Shengquan or OEM
-
Type:
-
industry fabrics
-
Thickness:
-
5-8mm
-
Width:
-
upto 2600mm
-
Application:
-
cement industry
-
Characters:
-
Warterproof
-
Style:
-
flat
Quick Details
-
Power:
-
80W
-
Warranty:
-
3 years
-
Width or Diameter:
-
122MM
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
SHENGQUAN
-
Core Components:
-
HOSE
-
Weight (KG):
-
4 kg
-
Origin of Place:
-
China
-
Brand:
-
Shengquan or OEM
-
Type:
-
industry fabrics
-
Thickness:
-
5-8mm
-
Width:
-
upto 2600mm
-
Application:
-
cement industry
-
Characters:
-
Warterproof
-
Style:
-
flat
Contact person:Chelsea
Mobile/WhatsApp/Wechat:+86 13752080776

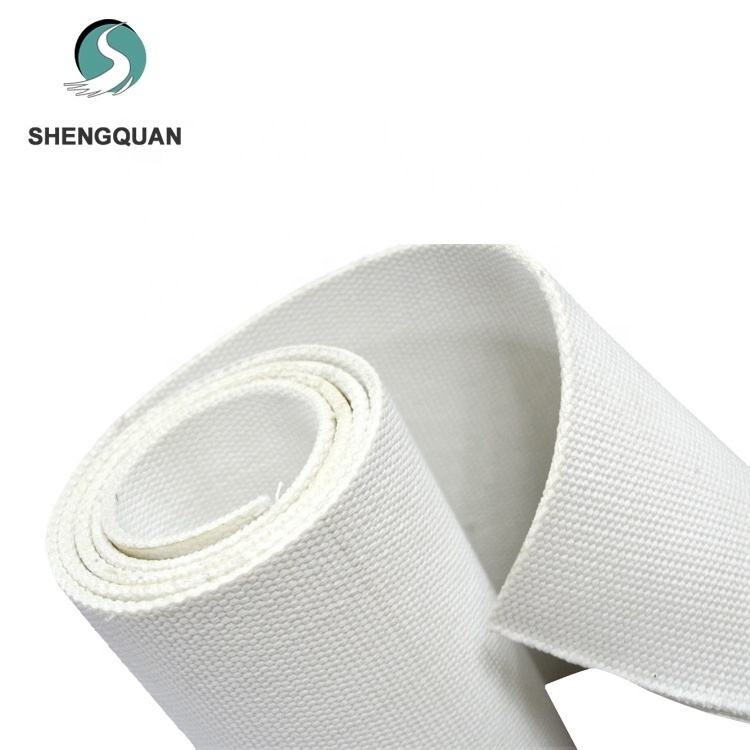

Shengquan offers Airslide Fabrics are used in various industries for pneumatic conveying,discharge,homogenising and fluidising of powder or granular materials.They are used on pneumatic conveyors,silos of every type,vehicle trucks and ail-wagons and also in ships.
Airslide Fabrics are an indispensable part of cement plan,chemical industry,metallurgical industry,bulk cement tank trucks,bulk cement ship and fixed cement tanks.
Polyester Airslide Fabric is manufactured in 2-5 ply from durable and abrasion resistant polyester fabrics.Airslide fabrics and Airslide pads from an integral part of Penumatic Conveyor Systems.
The 'Airslide Belting' designed to have the correct degree of porosity or permeability and this should be uniform over the entire area of the belt. The belt should permeate air in infinitely small jets to maximise the fluidisation of the material.
Solid Woven 'Airslide Belting' have proved to be ideal. They are relatively inexpensive (cost to life ratio), long lasting, easily transported in roll form, easy to instal and available in continuous lengths.
USES INDUSTRY:
Cement industies : cement plant ,bulk cement truck and ship
Mining industries :aluminium,lime,coal,phosphates
Chemical plants : soda
Power plants : coal,desulfurize
Food industry : flour
Air slide Fabric Specification
|
Type |
Material |
Ply |
Tensile strength |
Heat Resistance °C |
Thickness (+0.8, -0.5mm) |
Weight g/m2 |
Max Width (mm) |
Air Resistance in2m3/m2/min h2o/mm |
|
|
Warp >N/mm |
Weft >N/mm |
||||||||
|
AP4-4 |
100% polyester |
4 |
360 |
270 |
150 |
4 |
3200 |
2600 |
TypeA:80-120 TypeB:120-150 TypeC150-200 |
|
AP4-5 |
100% polyester |
4 |
360 |
270 |
150 |
5 |
3600 |
2600 |
TypeA:80-120 TypeB:120-150 TypeC150-200 |
|
AP4-6 |
100% polyester |
4 |
360 |
270 |
150 |
6 |
4000 |
2600 |
TypeA:80-120 TypeB:120-150 TypeC150-200 |
|
AP4-7 |
100% polyester |
4 |
360 |
270 |
1560 |
7 |
4400 |
2600 |
TypeA:80-120 TypeB:120-150 TypeC150-200 |
|
AP4-8 |
100%polyester |
4 |
360 |
270 |
150 |
8 |
4800 |
2600 |
TypeA:80-120 TypeB:120-150 TypeC150-200 |
|
Ac4-5 |
100% polyester |
4 |
150 |
130 |
130 |
5 |
38
00 |
2600 |
TypeA:80-120 TypeB:120-150 TypeC150-200 |
