Quick Details
-
Product Name:
-

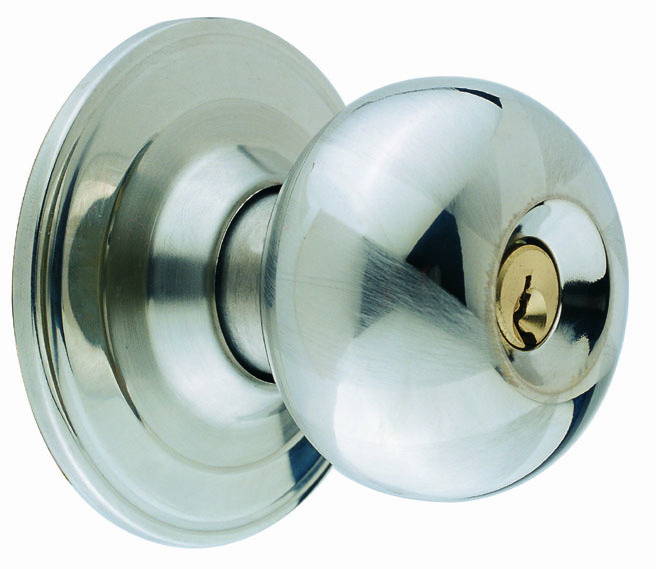

Cylindrical Knob Lock
-
Material:
-
Brass, SS304, SS201
-
Application:
-
Wooden Door
-
Function:
-
Entrance Privacy, Passage, Storeroom, Dummy...
-
Finish:
-
PB(US3), SS(US32D),AB(US5),SC(US26D),SN(US15),PVD,ORB(10B)
-
Cylinder:
-
5-pin or 6-pin Rekeyable Cylinder
-
Key:
-
2 Brass Keys
-
Door thickness:
-
35-45mm as standard
-
Backset:
-
60 or 70mm optional latch
-
Rossette:
-
65mm or 75mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HOWKEE, GHL
-
Model Number:
-
5791 SS4-ET
-
Product Name:
-
Cylindrical Knob Lock
-
Material:
-
Brass, SS304, SS201
-
Application:
-
Wooden Door
-
Function:
-
Entrance Privacy, Passage, Storeroom, Dummy...
-
Finish:
-
PB(US3), SS(US32D),AB(US5),SC(US26D),SN(US15),PVD,ORB(10B)
-
Cylinder:
-
5-pin or 6-pin Rekeyable Cylinder
-
Key:
-
2 Brass Keys
-
Door thickness:
-
35-45mm as standard
-
Backset:
-
60 or 70mm optional latch
-
Rossette:
-
65mm or 75mm
Product Description
Comboed with Deadbolt
Each piece of knobset can be comboed with our anti-sawing deadbolt for maximum security. Key alike, master key and construction key are all available from us! Leverset combo as optional!
|
SPECIFICATIONS
|
|
|
|
|||
|
Door Thickness:
|
1 3/8"-1 3/4" (35mm-45mm)
|
Strike:
|
D strike/T strike, steel as standard;
|
|||
|
|
|
|
ASA commercial strike upon request.
|
|||
|
Functions:
|
Keyed Entry,Privacy,Passage,Dummy,
|
|
|
|||
|
|
Classroom,Storeroom.
|
Knob:
|
Brass, Stainless Steel SS304 or SS201
|
|||
|
|
|
|
|
|||
|
Cylinder:
|
5-pin brass cylinder plug with 2 nickel plated brass keys per keyed lock.
|
Rose:
|
Brass, Stainless Steel SS304 or SS201
|
|||
|
|
|
Backset:
|
Optional 2 3/8" (60mm) or 2 3/4"
|
|||
|
Keyway:
|
SC1, KW1, YL,SE, WR... optional.
|
|
(70mm) as standard.
|
|||
|
|
|
|
Adjustable latch upon request.
|
|||
|
Keying:
|
Key Different (KD) as standard, keyed
|
Finishes:
|
US3, US4, US5,US15, US10B,
|
|||
|
|
alike (KA) available. Can be master
|
|
US26D, US32D…optional.
|
|||
|
|
keyed or grand master keyed.
|
|
|
|||
|
|
Construction key system available.
|
Packaging:
|
Color box, 30pcs/CTN, as standard;
|
|||
|
|
|
|
Visual pack, 6pcs/inner carton,
|
|||
|
Latch bolt:
|
1/2" (12.5mm) throw.
|
|
24pcs/outer carton as optional.
|
|||
|
1. Cylinder Housing
|
2. Cylinder Plug
|
3. Keys
|
4. Key Rings
|
5. Cylinder Tail
|
|
6. Pin Clip
|
7. Cylinder Plug Clip
|
8.Flat Pins
|
9. Bottom Pins
|
10.Pin Springs
|
|
11. Outside Knob
|
12. Knob Rear Cover
|
13&14. Outside Knob Tube
|
15&16. Rosette
|
17. Flange
|
|
18,19,23 Frame
|
24. Inside Knob Tube
|
25.Locking Tail
|
26,27,28,29. Push Button
|
30. Cylindrical Body
|
|
31,32. Inside Rosette
|
33. Latch
|
34. Strike
|
35&36. Screws
|
|
