Quick Details
-
calibr:
-
DN10~DN150
-
Medium:
-
oil
-
flow range:
-
40-130000L/H
-
medium temperature:
-
-20~100C
-
accuracy:
-
+/-0.5%
-
work pressure:
-
5.0Mpa
-
material:
-
cast steel(gear:aluminium alloy)
-
output:
-
pulse
-
power:
-
24V or 12V
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CXINSTRUMENT
-
Model Number:
-
CX-OGFM
-
calibr:
-
DN10~DN150
-
Medium:
-
oil
-
flow range:
-
40-130000L/H
-
medium temperature:
-
-20~100C
-
accuracy:
-
+/-0.5%
-
work pressure:
-
5.0Mpa
-
material:
-
cast steel(gear:aluminium alloy)
-
output:
-
pulse
-
power:
-
24V or 12V

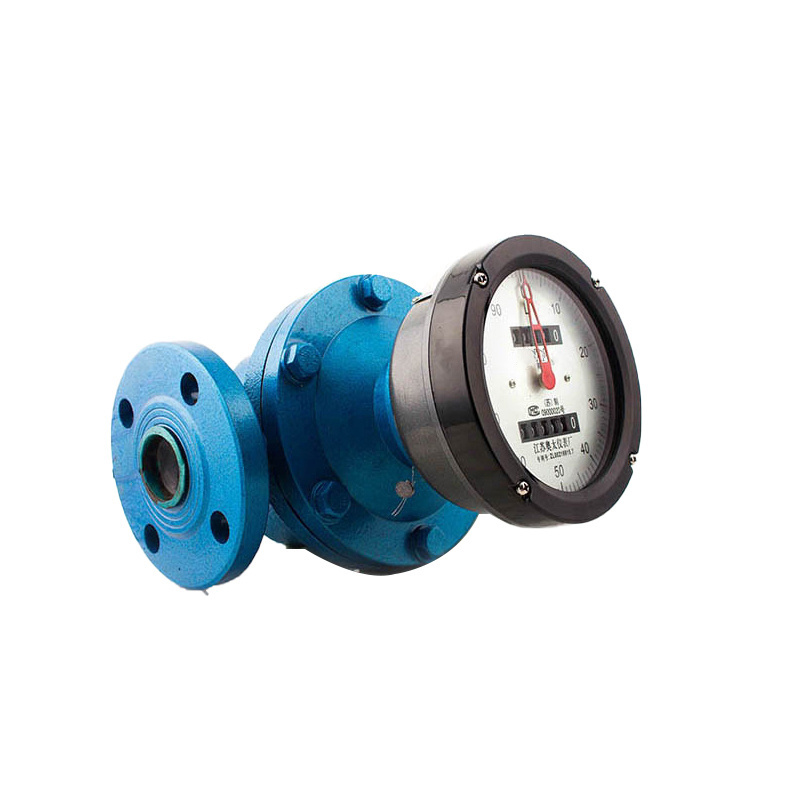

DN10-DN150 Cast Steel Pulse Output Oval Gear Type Positive Displacement Diesel Fuel Flowmeter Palm Oil Flow Meter Gasoline
A.[Features of Diesel Fuel Flow meter]
Widely range of liquid viscosity
the viscosity of medium is 0.6Mpa.s~250Mpa.s
Various of Display and Output
The transformer oil flow meter with digital display and mechanical display ;pulse or 4~20mA Output;
Various applications
the transformer oil flow meter suitabke for various applications such as chemical industry ,oil,medicine and electricity,etc.
High accuracy
Beacuse of the principle of Diesel Fuel Flow meter,the accuracy is 0.5%.
B.[Parameters]
| Production Name | Diesel Fuel Flow meter |
| Medium | Oil |
| Accuracy | 0.5% |
| Material | cast steel |
| Gear material | aluminium alloy |
| Medium temperature | -20~100C |
| Output | pulse |
| Power | 24V or 12V |
| Display | mechannical display |
| Work pressure | 5.0Mpa |
| ( including filter) | |
C.[Installation]
- The flow direction should be same as the sign on the body,the location must be convenient for you reading;
- The Diesel Fuel Flow meter should be installed at normal temperature location where without harmful gas to avoid damaging the flow meter;
- Pls keep the pipeline is clear before installa the flow meter and installa the filter to avoid the Impurities got into pipe;
- The flow adjusted value should be installed at downsteam,First,you should open the adjusted value and second to open the shut-off value;
- Pls ensure the liquid without any gas;
- If the mediun's viscosity is high,sometime ,you should heating to reduce the viscosity;
- It can be installed horizontally or vertically. When installing, the elliptical gear rotation axis of the Flowmeter should be parallel to the ground
D.[Company info]
- Our Company is Top 10 Manufacture on Alibaba;
- We have about 30 years of experience in Manufacture;
- Our products have been exported to more 100 coutries and area;
- ISO,SGS,CE and more ceterficates for you reference;
- Patent technology and more than 3 years working life
Contact Us
If you want to purchase a Diesel Fuel Flow meter sample and know more details you could contact us freely,we could solve your question in Mon to Sunday.we also have our factory,Welcome to visit our company and get further support.
Any time you could contact us:
Mob/whatapp/WeChat/Skype: +86 13381521778
Email :
sales1(@)gninstruments.com
sales11(@)gnFlowmeter.com
Return and Refund
1) If you received the products that don not match the orders, you could return the products and we ship a new products to you.
2)If the products that you received with the serious quality problems,we will provide the replacement.
