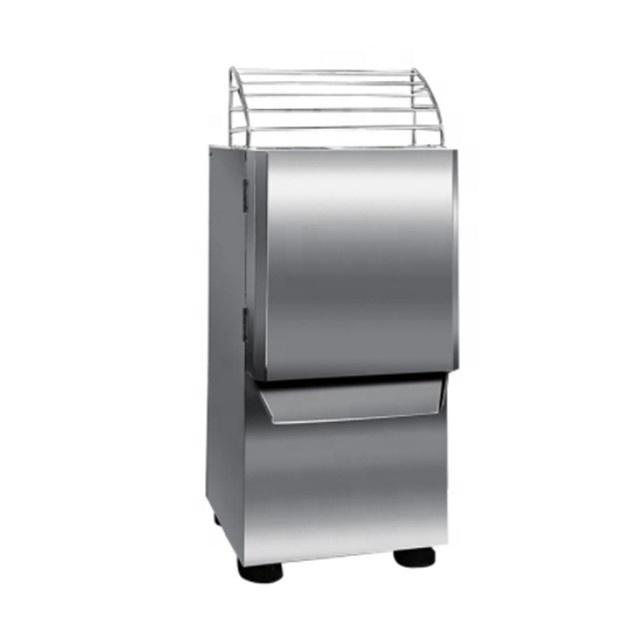

vegetable processing machine cutter/ slicer/ dicer machine

Vegetable machine performance:
Shredded, sliced, but also dicing, cutting, cutting and stuffing. Applicable to potatoes, melons, pickles, onion, eggplant, minced garlic and pickles.
Productivity: 200-300kg / h
Equipped with power:
220v-4 1.1kw
Size: 400 * 400 * 660mm

The machine with slieces blades, 3mm and 4mm (shoot contact customer service can change specifications)
Processing rules and work efficiency
A processing rules
1 slice processing, the thickness (1-10mm) adjustable.
2, 3mm, 2mm, 4mm, 5mm, 6mm and so on
3 dicing processing, with 10mm * 10mm, 12mm * 12mm [The above tool can also be customized according to user requirements]

Working efficiency
Depending on the situation of the vegetable, usually 10 minutes can be shred 50 kg, such as continuous mass production, the efficiency is higher.

Operation adjustment
The machine must be cutting blade when the blade up, the knife has sliced knife cutting tool and cutting knife group composition. Cutter knife alone, can be cut into pieces.
Practical processing, equipped with a wire cutter group, can be processed into wire, the cut into the wire, re-processing , You can get Xiao Ding that stuffing. Dicing processing, the installation of cutting knife group, a processing into a square, the bar once again into the processing, you can get the box. Tool change adjustment. Slice processing, the eccentric handle side of the butterfly nut loosen, pull the operating handle inward, the slice thinning, otherwise thickening.

Replace the knife before the butterfly nut loosen, pull the operating handle to the most, the knife group to be replaced to push in place, tighten the top of the rotation, and then pull the handle handle outward, Until the activities of the bottom plate close to the knife so far, then tighten the disc nut can be.
