Quick Details
-
Model Number:
-
KG316T-II
-
Max. Current:
-
25A
-
Customizable Voltage:
-
12-48VDC/AC,110-380VAC
-
Switching contact(Max):
-
10A or 25A
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SLYB
-
Model Number:
-
KG316T-II
-
Max. Current:
-
25A
-
Customizable Voltage:
-
12-48VDC/AC,110-380VAC
-
Switching contact(Max):
-
10A or 25A
-
Certification:
-
CE

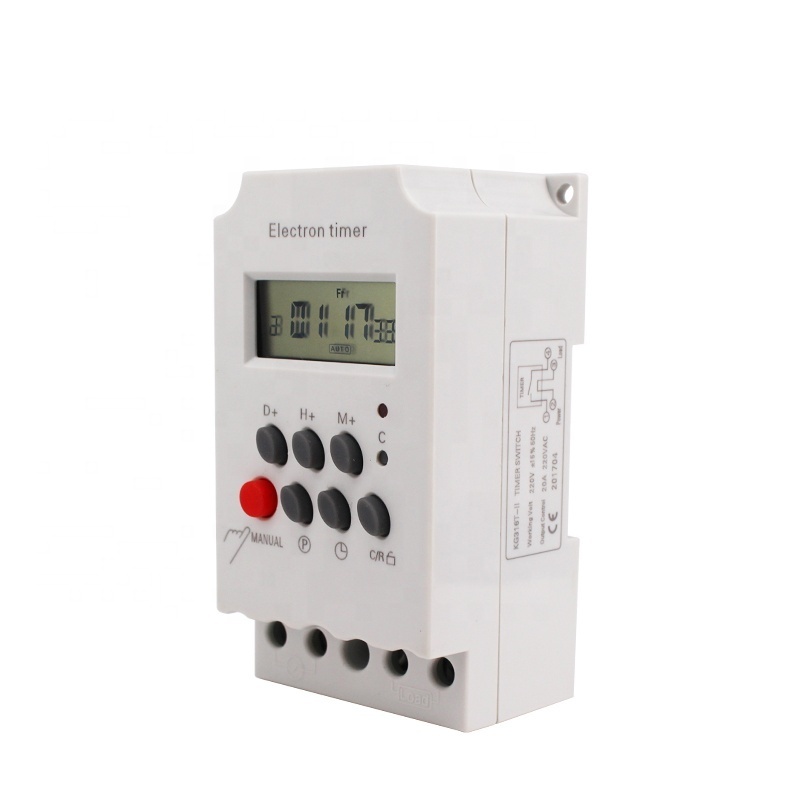

Digital Timer Control Switch KG316T-II
|
Type |
KG316T-II |
|
Operation Voltage |
220-240VAC/50-60Hz |
|
Customizable Voltage |
12-48VDC/AC,110-380VAC |
|
Switching contact(Max) |
10A or 25A |
|
Power Consumption |
1.5W |
|
Controlled Output |
25A,250VAC |
|
Display |
LCD |
|
Range |
1 min~168h |
|
PW CUT Memory |
60days |
|
Deviation |
1s/24h 25 ℃ |
|
Inside Battery |
Have High-Capacity Lithium Battery( ≥ 5years) |
|
ON/OFF Operation |
16 ON/OFF(Day/Week) |
|
Operation Temperature |
-25 ℃ ~65 ℃ |
|
Operation Humidity |
≤ 95 % |
|
Outline Dimension |
120*70*51 |
|
Standard |
GB/T14536.1 |
