Quick Details
-
Rated Power:
-
50HP
-
Dimension(L*W*H):
-
3000x2000x150mm
-
Year:
-
2020
-
Weight (KG):
-
3500
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Online support, Video technical support
-
Product Name:
-
water cut machine
-
Applicable Material:
-
Metal, Stone, Glass, Composites, Marble
-
Cutting Thickness:
-
1-150mm
-
Cutting Size:
-
400mm*400mm
-
Cutting Accuracy:
-
±0.1mm
-
Max. Moving Speed:
-
6000mm/min
-
Motor Power:
-
50HP (37KW)
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
APW water jets
-
Voltage:
-
380V
-
Rated Power:
-
50HP
-
Dimension(L*W*H):
-
3000x2000x150mm
-
Year:
-
2020
-
Weight (KG):
-
3500
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Online support, Video technical support
-
Product Name:
-
water cut machine
-
Applicable Material:
-
Metal, Stone, Glass, Composites, Marble
-
Cutting Thickness:
-
1-150mm
-
Cutting Size:
-
400mm*400mm
-
Cutting Accuracy:
-
±0.1mm
-
Max. Moving Speed:
-
6000mm/min
-
Motor Power:
-
50HP (37KW)
-
Certification:
-
CE

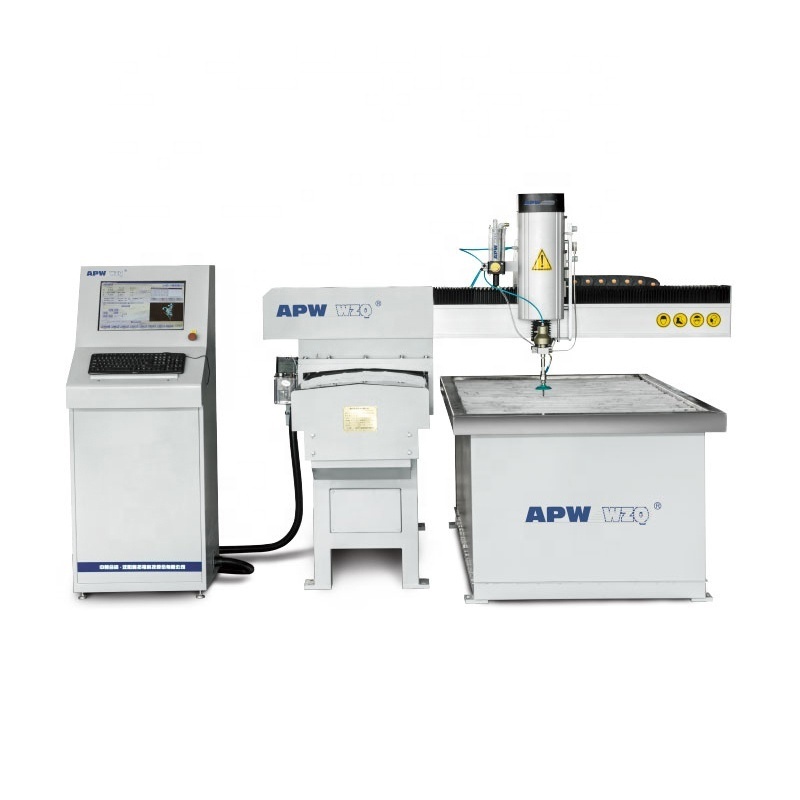

Bridge style
waterjet cutting machine
is one of the two traditional styles. It has two support points on each side, which makes the machine keep accurate and stable even after a long time process. It is suited to the material with fixed size or the material which is easy to load/unload.
Bridge style cutting machine designed by us is with beautiful appearance and reasonable structure. The motion system and the water tank are separated. That allows the whole system running in a more stable circumstance and easy to transport, maintain and recycle abrasive. The length of this cutting machine can be customized to meet any requirements.
Intensifier is the heart of waterjet. It gives waterjet life. APW A15+B 410Mpa intensifier pump is a miracle and it realizes the dream of every
waterjet
users whoever used, maintained or researched waterjet.
APW waterjet integrated SIEMENS motor, Jinda hydraulic Pump and hydraulic valves assembly, American A&V Intensifier, American high pressure tube and stainless steel water tank.
Our company's waterjet using ECS made in Italy waterjet software to control 3-axis, 4-axis, 5-axis waterjet.
PC requirement:
Support Windows 10;
CPU: Quad core (Intel);
RAM: DDR3L 4GB;
Hard disk: SSD mSATA 32GB;
With the new design, the new auto abrasive delivery system allows operator to add abrasive even during the machine working. It avoids to stop working for adding abrasive, which largely increases the working efficiency and reduces the energy consumption during operation.
waterjet cutting machine will be packed by Soft package in container by FCL.
Delivery Detail: time of delivery is 30 working days after receipt of deposit.
